XLPE Insulated and PVC Sheathed MV XLPE Cable

XLPE insulated and PVC sheathed MV XLPE Cable  ,  It applies to the transmission and distribution lines with rated voltage from 3.6/6KV to 26/35KV, to be laid directly in ground, outdoors, indoors and in cable ducts.

General Information:
Rated Voltage :   18/30KV, 21/35KV, 26/35KV

Range of Nominal cross section:    Single core:25 mm2 ~ 630 mm2 ;  3 cores: 25 mm2 ~ 400 mm2

Standard :   IEC60502, BS6622, VDE0276

Conductor:   Class 2 annealed copper strands

Core shield: semi-conducting compound + copper tape metallic screen

Insulation: XLPE

Sheath: PVC

Max. Operating Temperature :    90℃, can be 110℃ as per requirement

Remark :   The cable can be of flame retardance, fire resistance and environment friendly or other property

Main manufacturing procedure:

1. Copper wire drawing and annealing
2. Copper wire stranding

3. Inner/outer semi-conducting shield +XLPE insulating extruding

4. Copper tape shield

5. PVC sheath extruding and labeling
6. Spooling

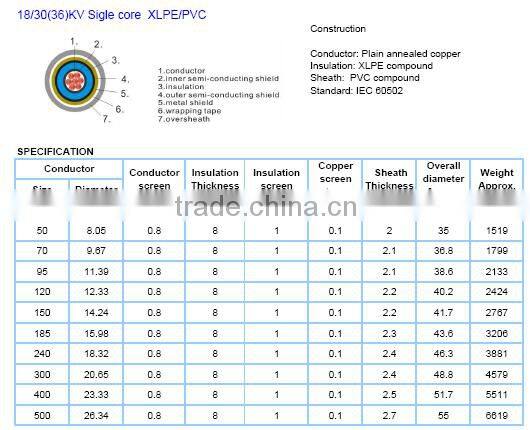

Technical data sheet:

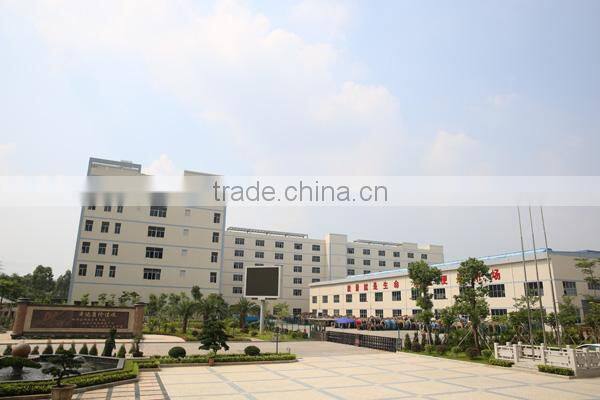

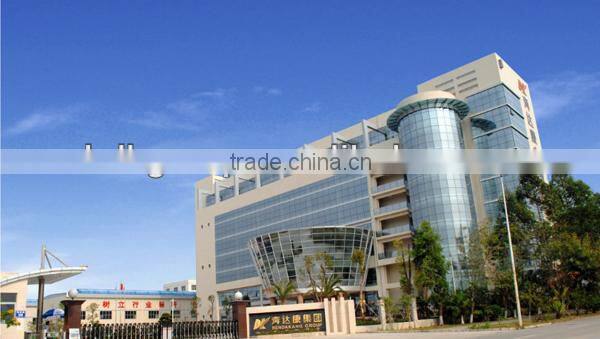

COMPANY OVERVIEW:

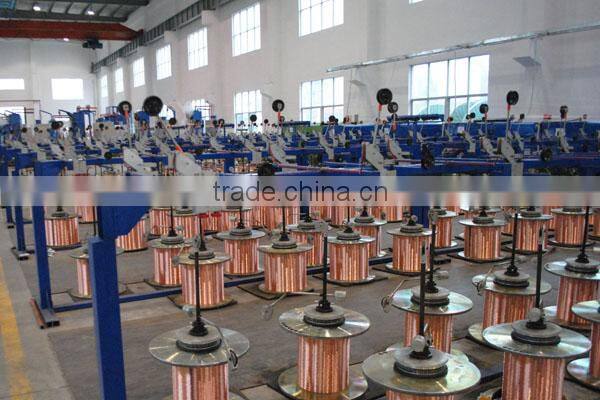

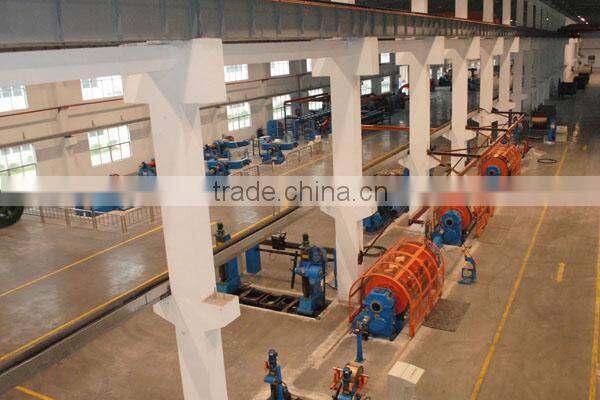

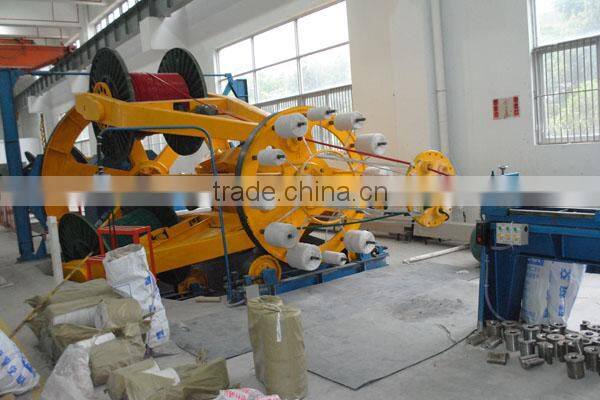

PRODUCTION WORKSHOP:

MAIN QUALITY INSPECTION EQUIPMENT

Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial dischargeinspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,

Cross-linkedcutting machine,etc.

CERTIFICATES:
