Static Three Phase Energy China Meter

FOB Price

Negotiable / Unit

500 Units(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YTL, YTL(China Meter)
Model Number	D512007	Display Type	Digital Only
Phase	Three Phase	Measuring Energy Range	5(60)A
Accuracy Class	1.0, 1.0	Output Voltage	3220/380V, 3220/380V
Operating Temperature	-25--+70, -20~50	Dimensions	122.511565mm

Product Description

Three Phase Energy China Meter

As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications

YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details
Product Name		Static Three Phase Energy China Meter
Installation type		Din rail
Module No.		D512007 ( Energy China Meter )
Brand		YTL ( Energy China Meter )
Rated Current		5(60)A
Reference Voltage		3*220/380V
Frequence		50/60HZ
Display Mode		LCD 6+1
Accuracy		1.0
Impulse Constant		800imp/kWh
Start Current		0.004Ib
Connection Mode		Direct
Communication& Protocol		/
Power Consumption		0.6W; 0.3VA
Material of meter case		PC
Size		122.511565 mm
Certificate		CE, ISO9001
Standard		IEC62052-11 IEC62053-21
2.Functions and characteristic
A. decoration with high-precision electric elements. It has the functions of high accuracy, stability, small size, light weight, low power consumption and bilateral
B. LCD Display 6+1
C.
…

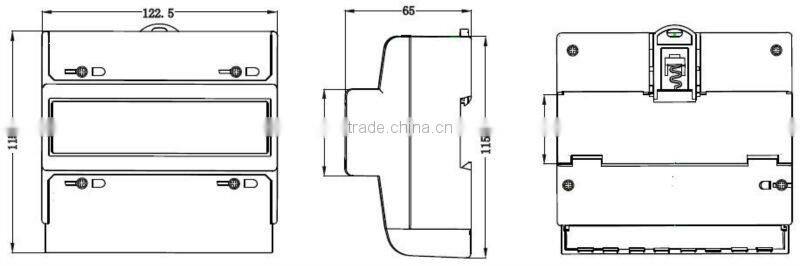

3.Outer and mount dimension:

4.Wiring diagram:

5.Transaction Information
MOQ	500pcs
Sea Port	Shanghai
Payment Terms	TT prepayment
Supply Ability	500,000pcs per month
Delivery time	20-25 days
Normal Package	white box or colorful box for China meter

If you are interested in our Static Three Phase Energy China Meter, pls be free to contact us at any time.
