Three Phase Watt-hour Meter Prepaid

FOB Price

Negotiable / Unit

1000 Units(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YTL
Model Number	D524001	Display Type	Digital Only
Phase	Three Phase	Measuring Energy Range	5(20)A, 10(40)A, 5(80)A
Accuracy Class	1.0,	Output Voltage	110V,,220V,230V
Operating Temperature	-20~55℃	Dimensions	220168138

Product Description

Three phase Prepaid watt-hour meter

As a professional manufacturer, YTL designs and produces prepaid electricity meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.

YTL is devoted to develop and design all types of prepaid electricity meter meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details
Product Name		Three phase Prepaid watt-hour meter
Installation type		Suspension type
Module No.		D524001 ( Prepaid watt-hour meter )
Brand		YTL ( Prepaid watt-hour meter )
Rated Current		15(45) A, 5(50) A, 5(80) A
Reference Voltage		3220/380V 3230/400V
Frequence		50-60HZ
Display Mode		LCD6+2
Accuracy		1.0
Impulse Constant		1000imp/kWh
Start Current		0.004Ib
Connection Mode		Direct mode
Communication& Protocol		RS485 IEC1107 ModBus
Power Consumption		≤1VA ≤1W
Material of meter case		PC
Size		220.413863.5mm
Certificate		CE
Standard		IEC62052-11 IEC62053-21
2.Functions and characteristic
A. Maximum load is limited and IC card is used to transfer data when users pre-pay for the power
B. Re-read the remaining power, accumulative overdraft and purchased total times
C. Automatically or manually cut off the power when overloaded and overdraft is allowed
D. Surface Mount Technology (SMT) and Hot Air Re-flow Soldering System are adopted in manufacturing and thus it has an excellent anti-jamming feature

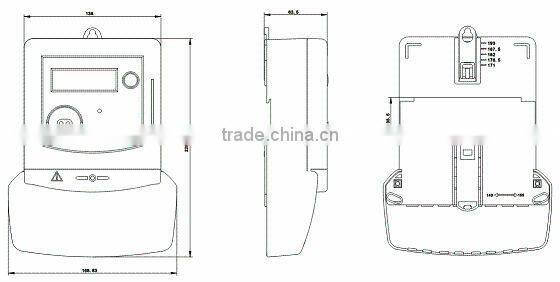

3.Outer and mount dimension:

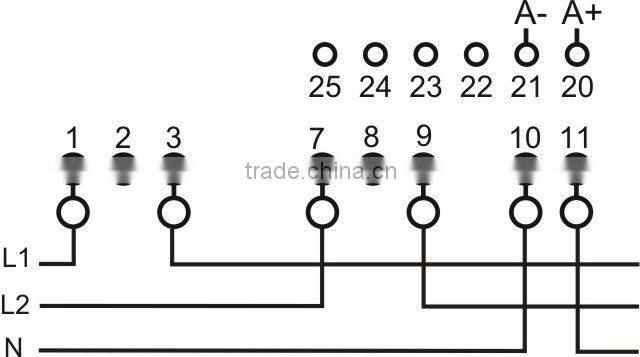

4.Wiring diagram:

5.Transaction Information
MOQ	300pcs
Sea Port	Shanghai
Payment Terms	TT prepayment
Supply Ability	50,000pcs of energy meter per month
Delivery time	25 days
Normal Package	white box or colorful box for prepaid electricity meter

If you are interested in our prepaid electricity meter, pls feel free to contact us at any time.
