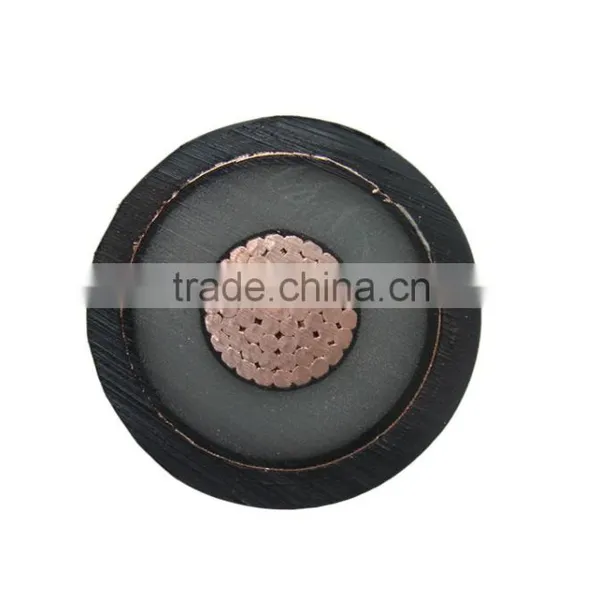

Medium voltage XLPE insulated and PVC sheathed XLPE cable , It applies to the transmission and distribution lines with rated voltage from 3.6/6KV to 26/35KV, to be laid directly in ground, outdoors, indoors and in cable ducts.
General Information:
Rated Voltage : 18/30KV, 21/35KV, 26/35KV
Range of Nominal cross section: Single core:25 mm2 ~ 630 mm2 ; 3 cores: 25 mm2 ~ 400 mm2
Standard : IEC60502, BS6622, VDE0276
Conductor: Class 2 annealed copper strands
Core shield: semi-conducting compound + copper tape metallic screen
Insulation: XLPE
Sheath: PVC
Max. Operating Temperature : 90℃, can be 110℃ as per requirement
Remark : The cable can be of flame retardance, fire resistance and environment friendly or other property
