Anti-termite Cable Anti-Mouse Cable SWA Armoured Cable
1. No Armore(XLPE/PVC insulated):
It applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground(when well protect in ducts, in trenches and in steel support brackets.)
PVC insulated:
XLPE insulated
2.Armore(SWA/STA,XLPE/PVC insulated)
It applies to electrical power transmission and distribution lines with AC rated voltage
UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet
locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations
susceptible to sliding.

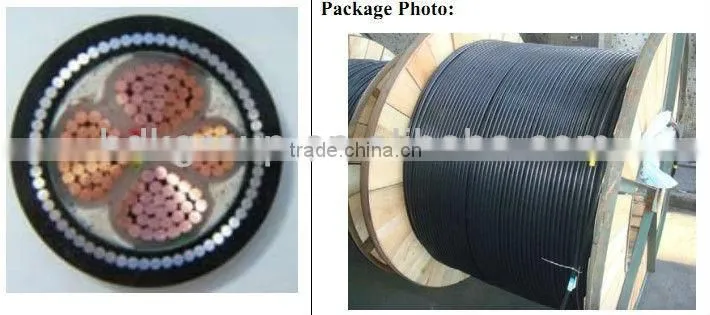

PVC insulated SWA armored
XLPE insulated SWA armored
Specification
1.Uo/U:0.6/1KV
2.Standard applied: IEC60502, BS6346, GB/T12706
ing temperature: PVC insulated:70°C, can be 90°C and 110°C as per requirement
XLPE insulated: 90°C, can be 110°C as per requirement
4.Conductor: Class 1/2 annealed bare copper solid or strands
5.Insulation:PVC/XLPE
6.Cores: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E
7.Cross section: 1.5 mm2~ 630 mm2
8.Armoure:No Armoure,STA( Remark: for single core the armore should be ATA )
SWA(Remark: for single core the armore should be AWA)
9.Sheath: PVC with anti-termite
10.Color:Black or other as request
11.Flame retardant or Fire resistance or low smoking and Halogen Free are available.
12.Wooden Drum or as per request
