cat5 cat5e cable ethernet cable price per meter :
1.Certification:ISO9001, ISO14001,OHSMS18001,CE, CB, CCC,SAA,etc.
2.OEM can be available
3.BDK cables has very good sales over the world , enjoying a very good reputation based on top quality and most competitive price and service.
Product Description
Networking cable, computer cable, LAN cable
|
Cat3 Cat5 Cat5e Cat6 |
|
|
||
Type |
Cat3, Cat5, Cat5e, Cat6 LAN cable |
|||
Max. transmission frequency |
Cat3: 16MHz; Cat5: 100MHz; Cat5e: 100MHz and support the duplex application; Cat6: 250MHz |
|||
Pairs |
2~50 pairs, 2 pairs and 4 pairs is mostly supplied |
|||
Conductor size (solid bare copper): |
Cat3: 0.50mm; Cat5: 0.50mm; Cat5e: 0.52mm; Cat6: 0.60mm |
|||
Application |
These cables are used by horizontal subsystem in the LAN premises distribution system, being used for the cabling connection between the communication outlet terminal of the system working area and the distributing frame of cross connection closet. The cable is laid in cable gland cable conduit and ceiling or floor interlayer, to make the cable support the application of voice, data, text, image, video, etc. |
|||
Standard |
ISO/IEC 11801, ANSI/EIA/TIA-568B, AS/NZS3080 |
|||
Constructions |
Conductor: solid bare copper Insulation: HDPE Sheath: PVC |
|||
Packing |
305 meters per box |
|||
Production Capacity |
20 kilometer/ day |
|||
MOQ |
100 boxes |
|||
Delivery time |
10~15 working days |
|||
Remark |
The cable can be of flame retardance, fire resistance and other property |
|||
what is the Main Manufacturing Procedure?
1,Copper wire drawing and annealing.
2,Copper wire stranding .
3,PVC insulation extruding.
4,Cores Twisting.
5, Outer sheath extruding and labeling
6,Spooling

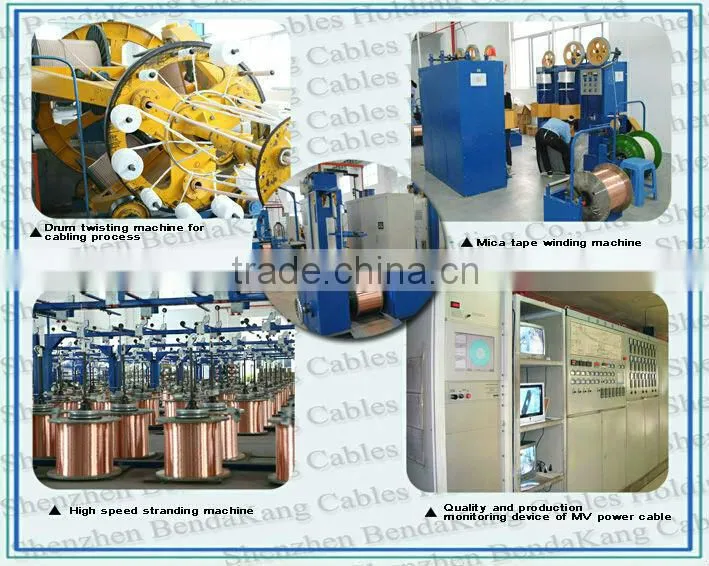

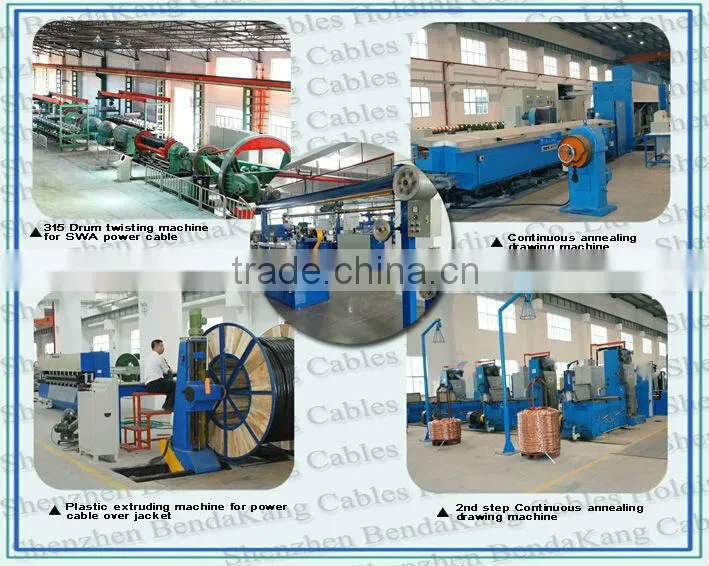

Ptroduction Machine

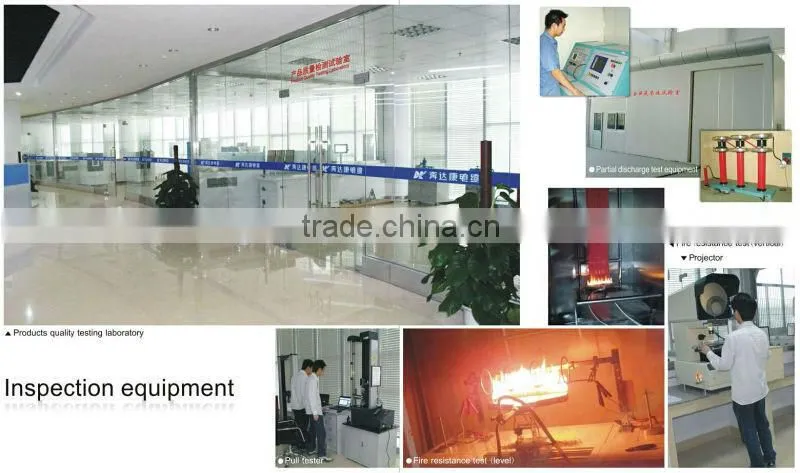

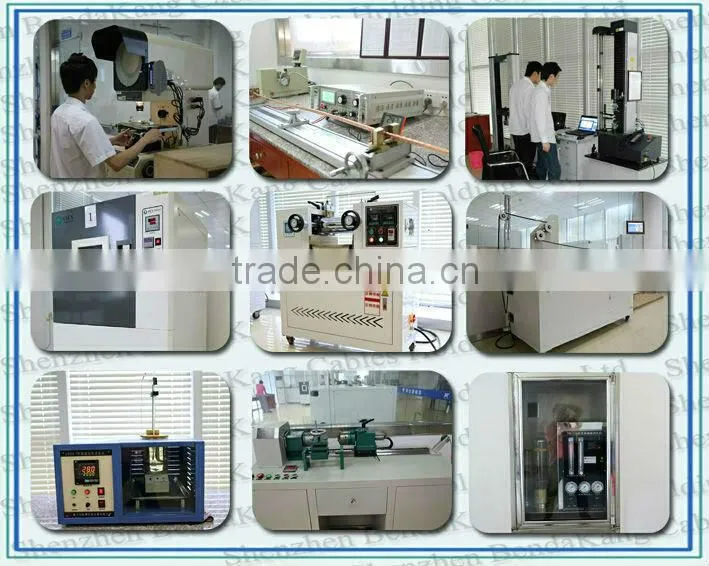

What is the Main Quality Inspection Equipment
Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester, Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.

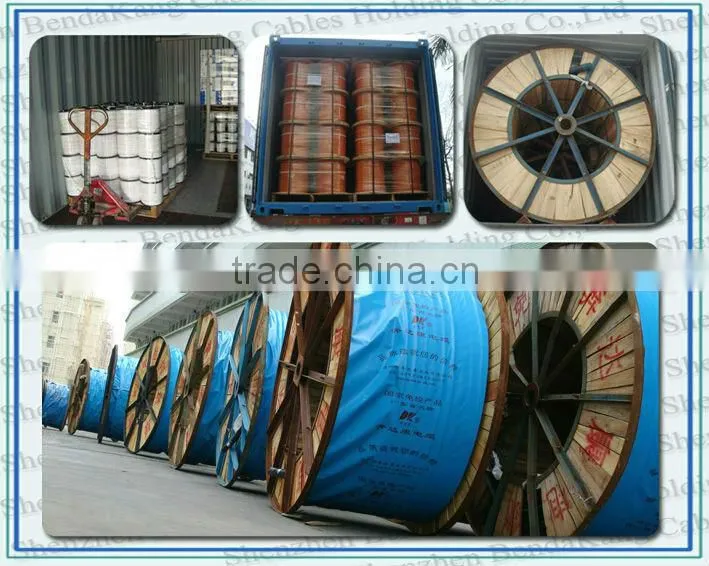

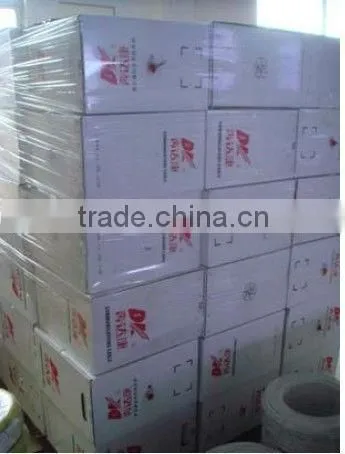

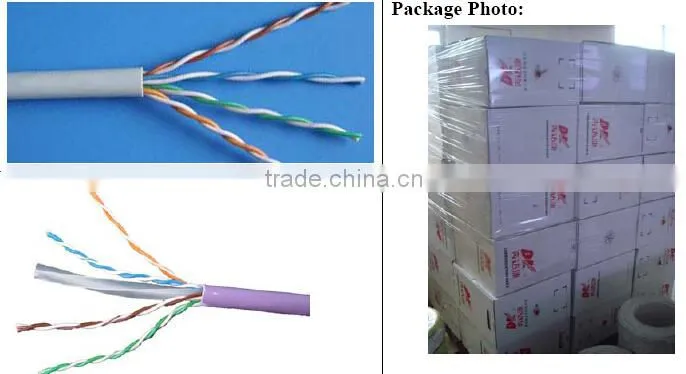

What is the Shipment specifications?
All oversea orders are carefully Packed before delivery.

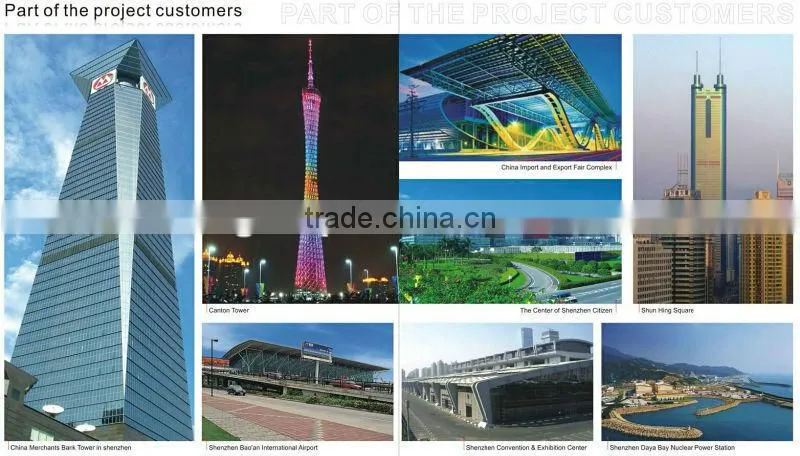

Part of the project customers and the logo of cooperative client of Bendakang Cables

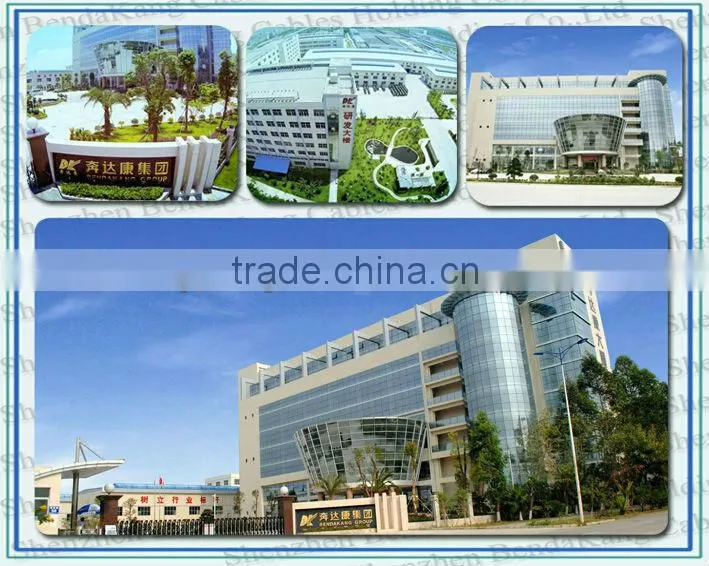

Company Overview
Shenzhen Bendakang cables.Co.,LTD. is the NO.1 largest professional electric wires and cables manufacturer in south China certified by ISO9001, ISO14001, OHSMS28001 ,CE,CB,SAA . Also we are a leading company with many years’ export experience and we have a very good reputation internationally. We can produce thousands of electric wires and power cables as per different standards, such as IEC, BS, UL, AS/NZS, VDE, etc.

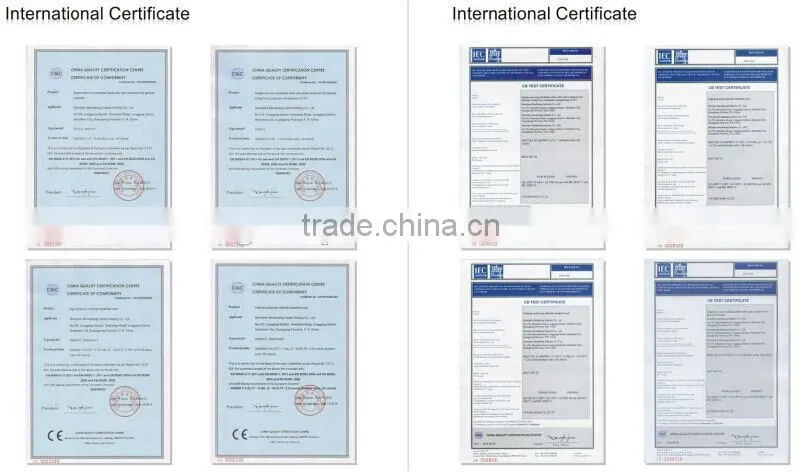

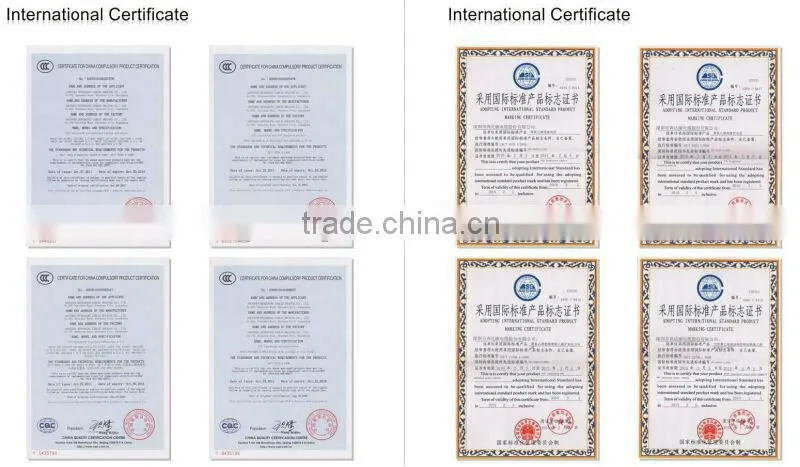

what kinds of Certificates Bendakang Cables have got?
Shenzhen Bendakang Cables Holding Co., Ltd.
QQ : 1970087279
Skype : bdkcable
Trademanager : bdkgroup
Phone : 0086-755-84299666
Mobile : 13600410778
Fax : 0086-755-84298138
Or you can send email to us through Ali trade email directly.
