We are professional manufacture for designing and producing single phase Prepaid watt-hour meter.Single Phase Prepaid watt-hour meter
As a professional manufacturer, YTL designs and produces watt-hour meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of watt-hour meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Single Phase Prepaid watt-hour meter |
|
Installation type |
Suspension type |
|
Installation type |
D124001 ( watt-hour meter ) |
|
Brand |
YTL ( watt-hour meter ) |
|
Rated Current |
5(60)A |
|
Reference Voltage |
230V |
|
Frequence |
50-60HZ |
|
Display Mode |
LCD 6+2 |
|
Accuracy |
1.0 |
|
Impulse Constant |
1000imp/kWh |
|
Start Current |
0.004Ib |
|
Connection Mode |
Direct type |
|
Communication&Protocol |
IR, RS485(IEC62056-21) |
|
Power Consumption |
≤1.2W and 1.2VA |
|
Material of meter case |
PC |
|
Size |
171.5*106*54.5mm |
|
Certificate |
CE, ISO9001 |
|
Standard |
IEC62052-11/IEC62053-21 |
|
2.Functions and characteristic | ||
A. This is a prepaid meter, which could work when you charge the meter through IC card. | ||
B. When the remain energy is 0,and the relay will open to remind the user to charge the IC card. After that, the relay will close. There are 3 methods to close the relay. 1.insert the IC card the button 3.switch on after 1 minute automatically. The methods could be chosen to switch on via Infrared and RS485. | ||
C. When the instantaneous power value is more than the threshold, the relay will open. The methods of making the relay close are settable. 1. inject the IC card; the button and the times of using this method should be less than the times of switching off caused by over loaded; 3. switch on after 1 minute automatically. | ||
D. When the remain energy is less than the threshold, the meter will alarm and the threshold could be set via Infrared or RS485. | ||
|
E. It could prevent the coemption of kwh. When the purchased kwh or the purchased kwh pluse the remain kwh is more than 999999.99kwh,the kwh injection will fail. The max coemption value could be modified through communication,and the default value is 999999.99Kwh
| ||
F. When off power, the meter will record the total kwh, remain kwh, impulse number and also other data that the meter has. | ||
G. LCD displays total kwh, remain kwh, Latest purchasing energy, meter number, user number and the forward and reverse through communication,and the default value is 999999.99Kwh. | ||

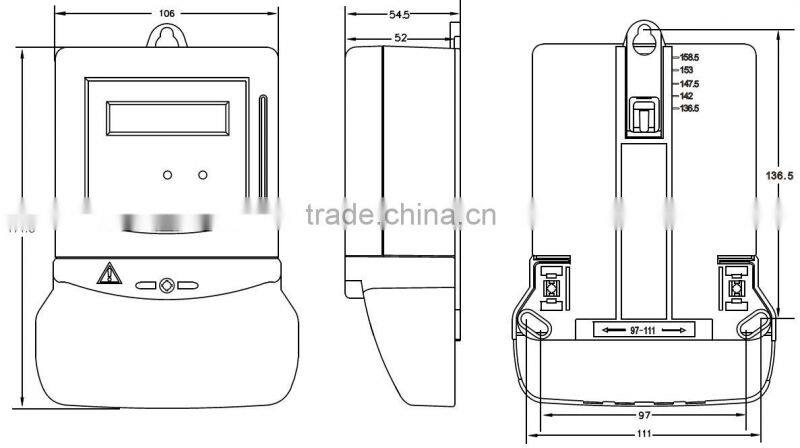

3.Outer and mount dimension | ||
| ||
4.Wiring diagram | ||
| ||
5.Transaction Information | ||
MOQ |
500pcs |
|
/ |
watt-hour meter |
|
Sea Port |
Shanghai |
|
Payment Terms |
TT LC |
|
Supply Ability |
500,000pcs per month |
|
/ |
watt-hour meter |
|
Delivery time |
20-25 days |
|
Normal Package |
common box with watt-hour meter |
|
| ||
|
| ||
If you are interested in single phase watt-hour meter, pls feel free to contact us at any time. | ||
