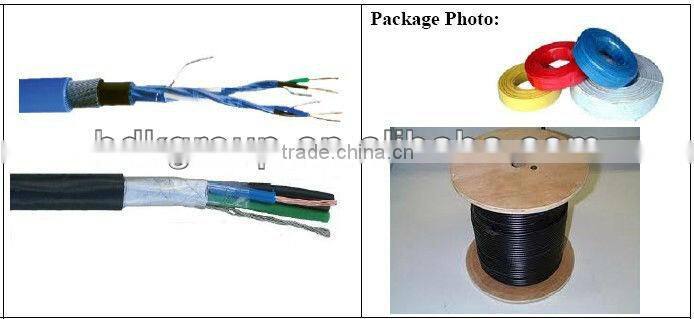

Control Flexible Cable

Specifications

Applicatons:

Flexible control cable suitable for measuring,controlling or regulation for assmebly and production line with rated voltage 450/750V;Flexible control cablewith Cu core pvc insulation and sheath and weave to shield cable

The characteristics of the product description:

1.Uo/U: 300/500V,450/750V

2.Standard applied: IEC60502, BS7870, GB/T12706

ing temperature: 70°C, can be 90°C  as per requiremen

4.Conductor: Class 1/2 annealed bare copper solid or strands  or Class 5 fine annealed copper wires

5.Insulation:PVC/PV/XLPE

6.Cores: Twisted pair 1-50pairs or Triple 1-20

7.Cross section: 0.5 mm2 ~ 2.5mm2

8.Armoure:  SWA or copper braided screen or tinned copper wire screen (individual or overall screen)

9.Sheath:PVC

10.Color: grey or as per request

11.Flame retardant or Fire resistance or low smoking and Halogen Free are available.

12.Wooden Drum or as per request

13.Certification:ISO9001/ISO14001/OHSMS18001/CE/CCC/CB ETC

14.OEM can be available

15.BDK cable now runs pretty well all over the world,enjoy a very good reputation based on top quality and most competetive price and best service.

Main Manufacturing Procedure:

 1,Copper wire drawing and annealing.

2,Copper wire stranding  .

3,PVC insulation extruding.

4,Cores Twisting.

5,Spooling.

Main Quality Inspection Equipment:

Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester ,Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.

All oversea orders are carefully Packed before delivery:

Remark: The cable can be of flame retardance,fire resistance and other property,We can produce according to customer special cables, welcome you directly contact to us immediately
