Specifications

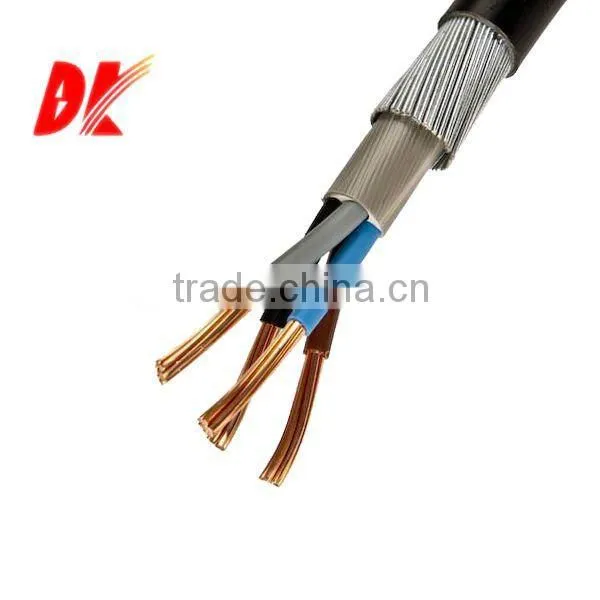

1,Multi core cable 0.6/1KV2,SWT/STA
3,Stranded Class 2copper
4.V-90PVC Insulation
5.2C-5C,2C-4C+E,1.5mm2-300mm2
- Application:
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.
The characteristics of the product description:
1.Uo/U: 0.6/1KV
2.Standard: IEC60502, BS6622, VDE0276, GB/T12706
3. Max working Temperature:90oC
4. Condutor:Class 2 Plain annealed copper wires ,standed5. Insulation:PVC
6.Cores:2C-5C,2C+E,3C+E,4C+E.
7.Range of norminal cross section: 1.5mm2--630mm2
8.Armoure:STA or SWA
9.Sheath:PVC or PE
10.Color: Red,Black,Blue,white for active core,green/yellow for earth core
11.Flame retardant,fire resistance or low smoke hologen free or other as per request.
12.Wooden Drum or as per request.
13.Certificate: ISO9001/ISO14001/CCC
14.OEM can be avaliable
15.BDK cable now runs pretty well all over the world,enjoy a very good reputation based on top quality and most competetive price and best service.

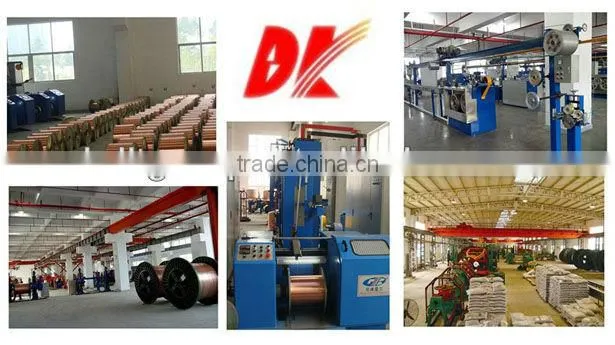

Main Manufacturing Procedure:
1,Copper wire drawing and annealing.
2,Copper wire stranding .
3,PVC insulation extruding.
4,Cores Twisting.
5,Spooling.

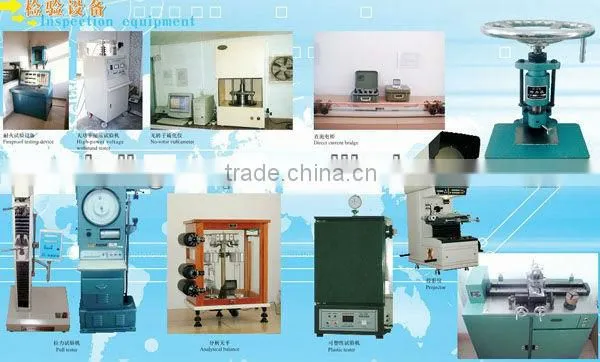

Main Quality Inspection Equipment:
Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester ,Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.

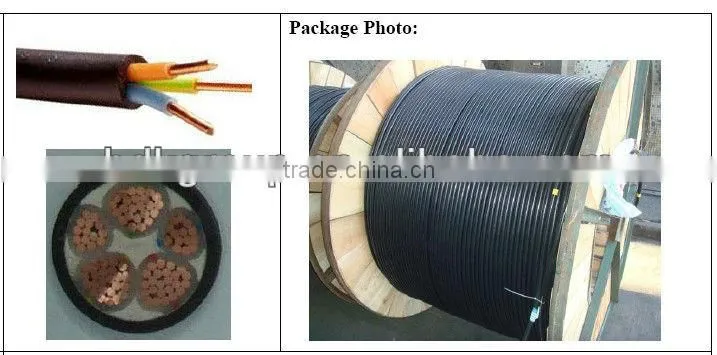

All oversea orders are carefully Packed before delivery:
Remark: The cable can be of flame retardance,fire resistance and other property,We can produce according to customer special cables, welcome you directly contact to us immediately
