Specifications
1. push pull control cable2. Class 1/2/5 copper conductor
3. PVC insulation & Sheath
4. 2C~61C, 0.75~10sqmm
5. IEC/BS/VDE
Copper conductor PVC insulated and sheathed flexible push pull control cable
Application:
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction. BDK control cable has the advantages of high mechanical strength, good ambient stree resistance, good electrical properties and anti-chemical corrosion.
- Voltage rating: 300/500V, 450/750V
- Standard applied: IEC60227, BS6500, GB/T9330
- Max. working temp.: 70°C, can be 90°C and 110°C as per requirement
- Conductor: Class 1/2 annealed bare copper solid or strands or Class 5 fine annealed copper wire
- Insulation & outer sheath: PVC
- Armoure or shield (optional): SWA or STA or copper braided screen or tinned copper wire scree
- Cores: 2C~61C
- Cross section area: 0.75 ~ 10 sqmm
- Sheath color: Black or as per requirement
- Bending radius: Not less than 6 times of the cable's OD (unarmoured type and flexible shielded type); Not less than 12 times of the Cable's OD (armoured or copper shielded type)
- Ambient temp. for laying the cable: Not less than 0°C; if below 0°C, cables should be preheated
- Certification: ISO9001/ISO14001/OHSMS18001/CE/CB/CCC/SAA
- OEM: Available
- BDK cables has very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and best service.
- Remark: The cable can be of flame retardance, fire resistance and environment friendly or other property

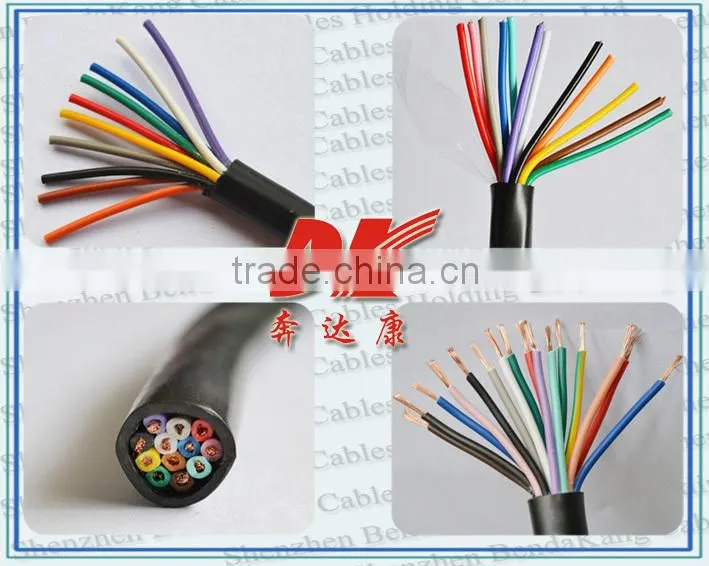

Product photo

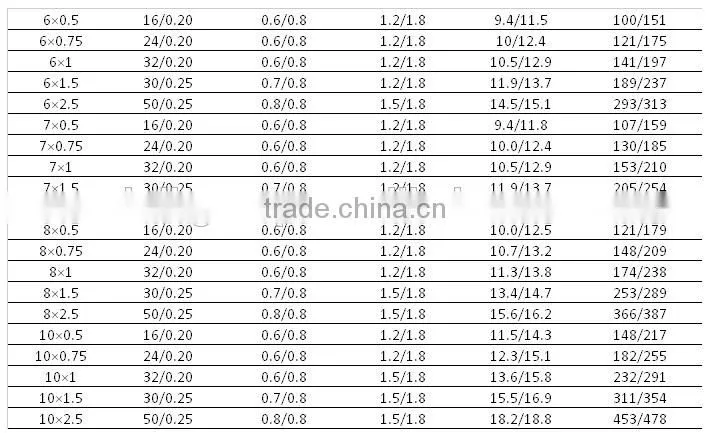

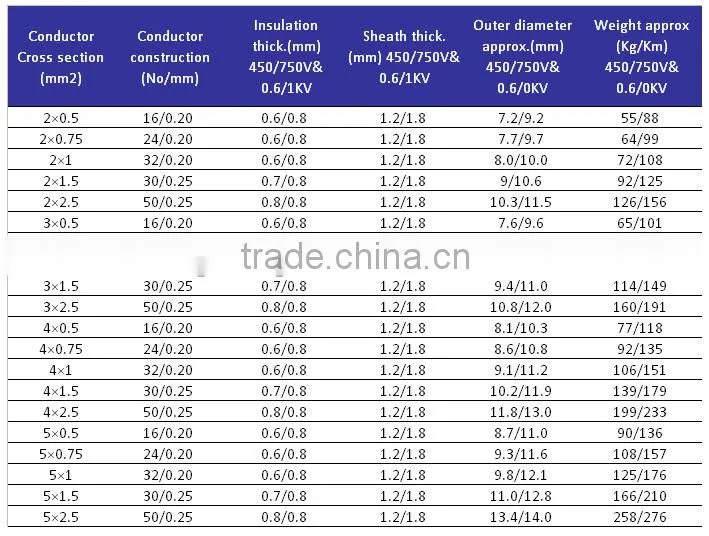

Parameter sheet
Main manufacturing procedure
- Copper wire drawing and annealing
- Copper wire stranding
- PVC insulation extruding
- Cores twisting
- Inner sheath extruding
- Armour winding / shield braiding
- Outer sheath extruding and labelling
- Spooling

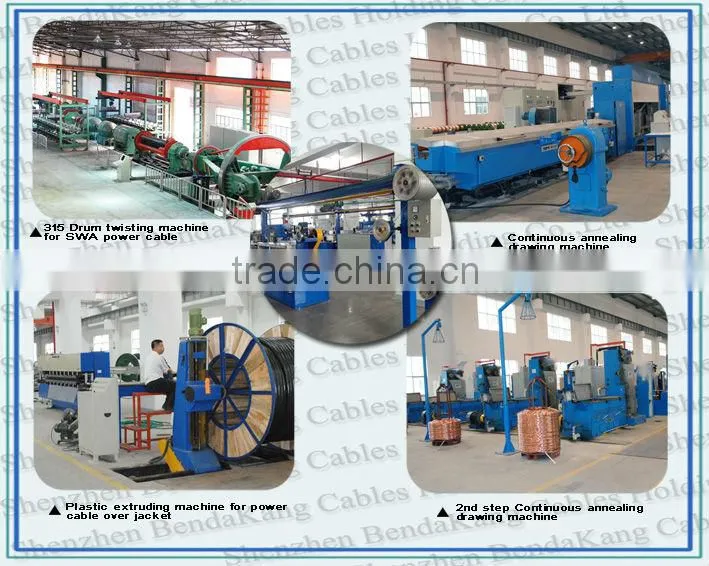

Production machines
Main Quality Inspection Equipment
Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial ischarge inspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,Cross-linked cutting machine,etc.

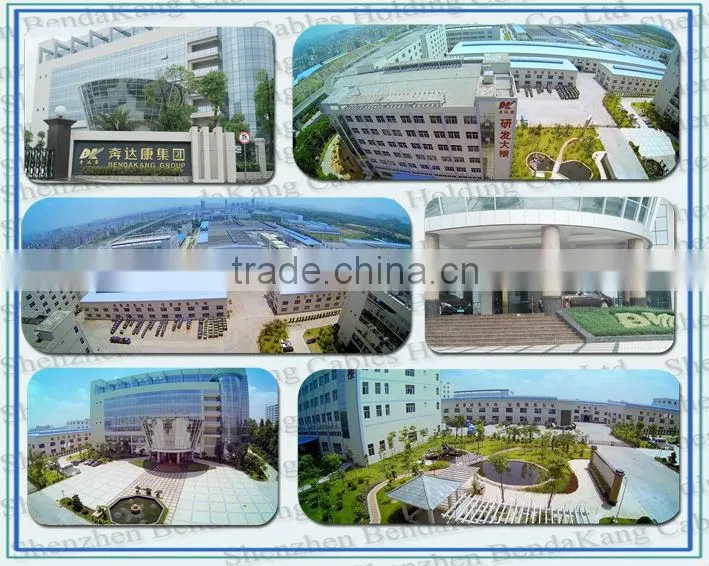

Company Overview
Certificates
If you would like to get more information, please contact us directly.
