Specifications
DIN-Rail Electricity MeterThis is single phase digital electric meter with CE ceritificate.
Single Phase DIN-Rail Electricity Meter
As a professional manufacturer, YTL designs and produces energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Single Phase DIN-Rail Electricity Meter |
|
Installation type |
Din rail |
|
Module No. |
D111008 ( DIN-Rail Electricity Meter ) |
|
Brand |
YTL ( DIN-Rail Electricity Meter ) |
|
Rated Current |
5(80)A |
|
Reference Voltage |
230V |
|
Frequence |
50/60HZ |
|
Display Mode |
Counter 5+1 |
|
Accuracy |
1 |
|
Impulse Constant |
1000imp/kWh |
|
Start Current |
0.004Ib |
|
Connection Mode |
Direct type |
|
Communication&Protocol |
/ |
|
Power Consumption |
≤8VA ≤0.4Wh |
|
Material of meter case |
PC |
|
Size |
129*36*65mm |
|
Certificate |
CE, ISO9001 |
|
Standard |
IEC62052-11/IEC62053-21 |
|

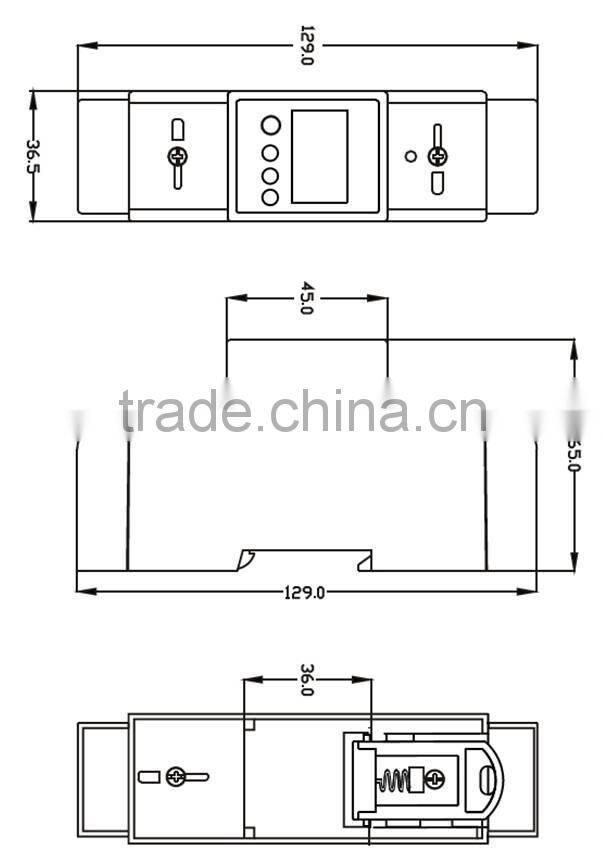

3.Outer and mount dimension | ||
| ||
4.Wiring diagram | ||
| ||
5.Transaction Information | ||
MOQ |
500pcs |
|
/ |
DIN-Rail Electricity Meter |
|
Sea Port |
Shanghai |
|
Payment Terms |
TT LC |
|
Supply Ability |
500,000pcs per month |
|
/ |
DIN-Rail Electricity Meter |
|
Delivery time |
20-25 days |
|
Normal Package |
common box with DIN-Rail Electricity Meter |
|
| ||
| ||
If you are interested in DIN-Rail Electricity Meter, pls feel free to contact us at any time. | ||
