Specifications
Three phase digital Panel Meter1.Time, Temperature display
3.kWh and kvarh display
4.Curve display
5.MD display
Three phase Digital Panel Meter
As a professional manufacturer, YTL designs and produces digital panel meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of digital panel meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Three phase digital panel meter | |
Installation type |
panel mounted | |
Module No. |
D549001(digital panel meter) | |
Brand |
YTL | |
Rated Current |
5(16)A | |
Reference Voltage |
220/230/240V | |
Frequence |
50-60Hz | |
Display Mode |
LCD | |
Accuracy |
1.0 | |
Impulse Constant |
10000imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
CT mode | |
|
Communication& Protocol |
IR | |
Power Consumption |
IEC standard | |
Material of meter case |
ABS | |
Size |
48*48*50mm | |
Certificate |
CE, ISO9001 | |
Standard |
IEC62052-11, IEC62053-21 | |
2.Functions and characteristic | ||
A.This is three phase electronic panel meter manufacturer, this panel meter can be both single phase and three phase . | ||
B. This Timer/Time/kWh meter is suitable for Panel mounted, whose dimension is only 48mm*48mm. It can be mounted on many kinds of machines and deveices and used for measuring and showing the operating time, consumed power, voltage, current & power in an alternate display and synchronous display on the same LCD screen. Meanwhile, it could memorize all the data when power off, then the whole data can continue to running on and to be shown when power on again.You could control and check how much energy consumed in your hand. | ||
C. It measure and show operating time & energy consumption, the size is 48 x 48 mm | ||
D.Besides, this kWh meter has RESET function. The customers can reset the consumed power through the infrared light controller outside. | ||
E.It measure and show operating time & energy consumption, the size is 48 x 48mm (96*96 size is optional) | ||
|
F.through connecting the CT outside, you could measure very big current; If you connect 150:5 CT outside, you could measure current upto 30 times current. | ||

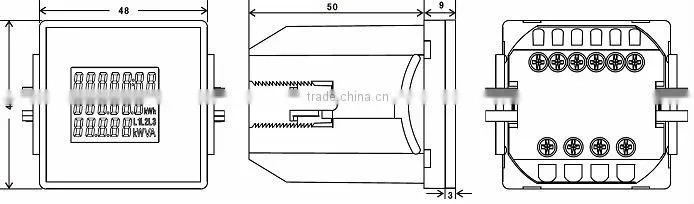

3.Outer and mount dimension: | ||
| | ||
4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ |
300pcs | |
Sea Port |
Ningbo or Shanghai port | |
Payment Terms |
T/T, L/C | |
Supply Ability |
50000pcs/month | |
Delivery time |
30days after payment | |
Normal Package |
white box for digital panel meter | |
If you are interested in our Three phase digital panel meter, pls feel free to contact us at any time.
