Specifications
Three Phase modbus panel meter with 96mm size1-Monitor the energy consumption of device
2-Could also measure reactive energy

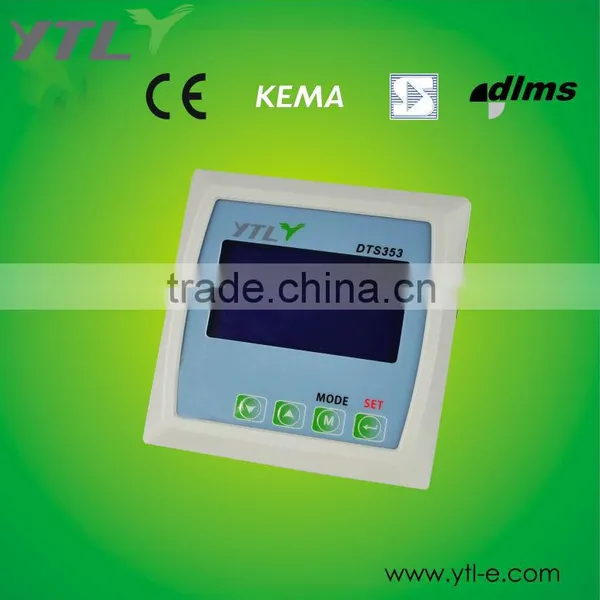

Three phase modbus panel meter with 96mm size
As a professional manufacturer, YTL designs and produces modbus panel meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications
YTL is devoted to develop and design all types of modbus panel meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Three phase modbus panel meter with 96mm size | |
Installation type |
panel mounted | |
Module No. |
D543003(electrimodbus panel meter) | |
Brand |
YTL | |
Rated Current |
3*1.5(6)A | |
Reference Voltage |
3*220/380V, 3*230/400V | |
Frequence |
60HZ | |
Display Mode |
LCD | |
Accuracy |
1.0 | |
Impulse Constant |
/ | |
Start Current |
0.04Ib | |
Connection Mode |
CT mode | |
|
Communication& Protocol |
RS485 MODBUS RTU | |
Power Consumption |
≤1W,<8VA | |
Material of meter case |
PC | |
Size |
96*96*56mm | |
Certificate |
ISO CE | |
Standard |
IEC62052-11, IEC62053-21 | |
2.Functions and characteristic | ||
A. Meter has the function to memorize all the data when power off. | ||
B.The operating hour and consuming power are shown in a alternate display but have synchronous display to be displayed at the same time on the same screen | ||
C.The mete has teh displaying of voltage, current, power,MD | ||
D. This meter is suitable for Panel mounted, whose dimension is only 96mm*96mm. It can be mounted on many kinds of machines and deveices and used for measuring and showing the operating time, consumed power, voltage, current & power in an alternate display and synchronous display on the same LCD screen. Meanwhile, it could memorize all the data when power off, then the whole data can continue to running on and to be shown when power on again.You could control and check how much energy consumed in your hand. | ||
|
E. If you are interested in three phse digital panel meter, pls feel free to contact us at any time. It measure and show operating time & energy consumption, the size is 96 x 96 mm. | ||
F. Besides, this kWh meter has RESET function. The customers can reset the consumed power through the infrared light controller outside. | ||

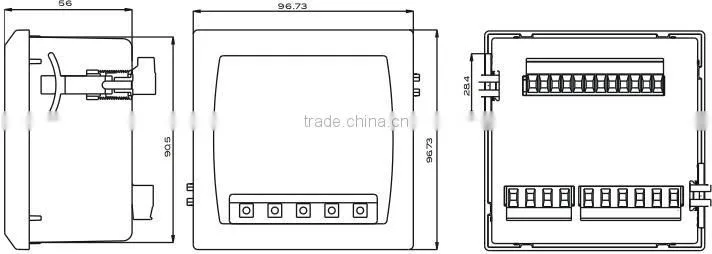

3.Outer and mount dimension: | ||
|
| ||

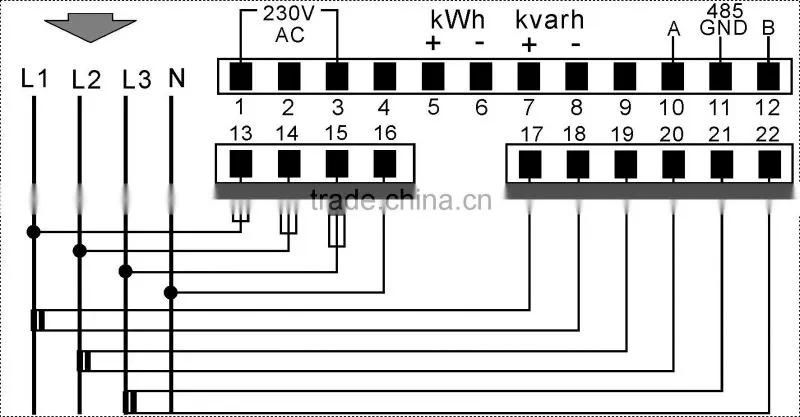

4.Wiring diagram: | ||
|
| ||
5.Transaction Information | ||
MOQ |
500pcs | |
Sea Port |
Shanghai or Ningbo | |
Payment Terms |
TT prpayment | |
Supply Ability |
500,000pcs per month | |
Delivery time |
25 days after receipt of prepayment | |
Normal Package |
box for modbus panel meter | |
If you are interested in three phase modbus panel meter with 96mm size, pls feel free to contact us at any time.
