Copper wire coaxial RG11, RG6 ,RG59 . These cables are applicable to close circuit TV system below 1.5Ghz, public antenna (CATV/MATV/CCTV) as branch line and drop line, equipment line or internal line for other high frequency machine, transmitting high frequent analogue signal, digital signal, video and audio signal. More suitable for digital TV video transmission.
General Information:
Type : Coaxial cable, RG6, RG59, RG11, SYWV-75-5, SYWV-75-7, SYV 75-C, SYV75-5
Max. transmission frequency: 1.5GHz
Characteristic impedance: 75 ohm
Conductor size (solid bare copper): Mini RG59: 0.41mm; RG59:0.81mm; RG6: 1.02mm; RG11:1.63mm; SYWV-75-7:1.66mm
Conductor: solid bare copper
Insulation: solid PE or physical foam PE
Shield: Al foil+Al-Mg alloy braiding or copper wire braiding or tinned copper wire braiding
Sheath: PVC
COMPANY OVERVIEW:

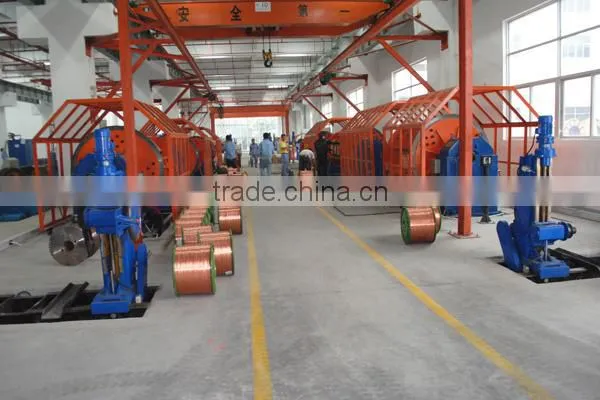

PRODUCTION WORKSHOP:
CERTIFICATES:
MAIN QUALITY INSPECTION EQUIPMENT
Why Choose Us ?
More competitive price and standard quality.
Experienced engineering team work, latest technological machinery and new tech available.
Market-oriented management, OEM,OBM and ODM acceptable.
Standardized Quality Control system and operation.
