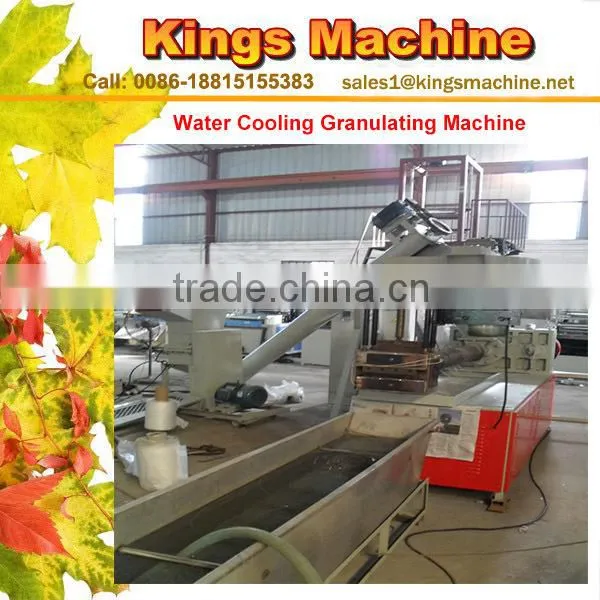

China Best Quality PE Water Cooling Plastic Granules Machine(Kings brand)
1- Brief Introduction:
This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, piloting with an extruding machine at the same discharging speed synchronistical. The unit is easy to operate, With a high output, steady performance, and favorable economic benefit.
2- Main Technical Variables:
Model type |
SJ-90 |
SJ-100 |
SJ-110 |
SJ-120 |
Screw Diameter |
¢90 |
¢100 |
¢110 |
¢120 |
Screw Ratio |
L/D20:1-22:1 |
L/D20:1-22:1 |
L/D20:1-22:1 |
L/D20:1-22:1 |
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Power of Main Motor |
22Kw |
30Kw |
37Kw |
45Kw |
Output |
68kg/h |
95kg/h |
120kg/h |
135kg/h |
Weight of overall(kg) |
2t |
2.1t |
2.2t |
2.5t |
cover dimensions(LxWxH)(mm) |
8000x1200x1800 |
8200x1600x1800 |
8500x1600x1800 |
8800x1600x1800 |
Our Services
We provide 24 hours service by phone or email. Our engineer is available at any time if you need any
helps.
SJ-100 PE Wind Cooling Hot Cutting Recycling Machine | |
1- Main Reduce Box |
Hard surface reduce No.200 (Changsheng brand from Changzhou) |
2- Main Motor |
30kw ( Shuangyu motor from Hangzhou) |
3- Screw Diameter |
100mm×2000mm |
4- L/D Ratio: |
1:20 |
5- Filter Die Plate Diameter |
200mm |
6- Filter Changer Type |
By motor |
7- Filter Motor Size |
2.2kw |
8- Granules cutter |
By motor 1.5kg, |
9- Cutting blade working type |
Rotary running |
10- Blower |
1 pc, 2.2kw |
11. Recycling Bulk |
Stainless steel |
12. Tornado Barrel |
1 pc, stainless steel |
13. Storage Bulk |
1pc, stainless steel |
14. Electric Cabinet |
1 pc |
15. Heating type |
Automatic Temperature Controller |
16.Main motor |
30 kw |
17.Granules cutting motor |
1.5kw with inverter controlling (Pioneer brand) |
W are specializing in producing kinds of plastic packaging machines for more than 10 years. We owes excelllent technician,sales and service team. Our achines have been popular with customers from all of the world. Both old and new customers are warmly welcome to visit us! Let's work together! Let's share the same sunshine!
