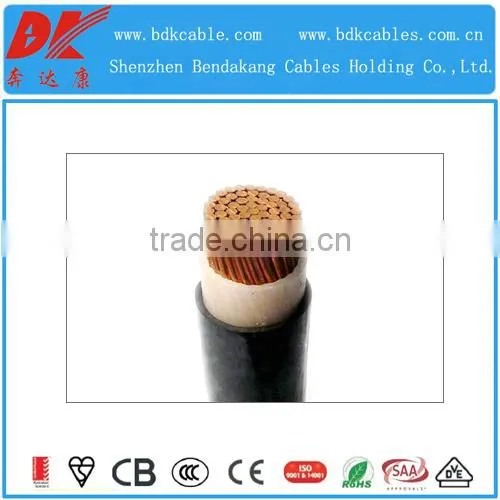

Single Core XLPE insulated PVC sheathed SDI Cable as per AS/NZS , These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in undergound ducts for buildings and industrial plants where not subject to mechanical damage, suitable where space is at a premium and/or where conditions of overload may occur, suitable fo glanding.
General Information:
Rated Voltage : 0.6/1KV
Range of Nominal cross section: 16 mm ² ~ 630 mm ²
Standard : AS/NZS 5000.1
Conductor: Class 1/2 Plain annealed copper wires, stranded
Insulation: X-90 XLPE
Sheath: 5V-90 PVC
Max. Operating Temperature : 90℃
Main manufacturing procedure:
1. Copper wire drawing and annealing
2. Copper wire stranding
3. XLPE insulation extruding
4. PVC sheath extruding
5. Spooling
MAIN QUALITY INSPECTION EQUIPMENT
Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial dischargeinspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,
Cross-linkedcutting machine,etc.
