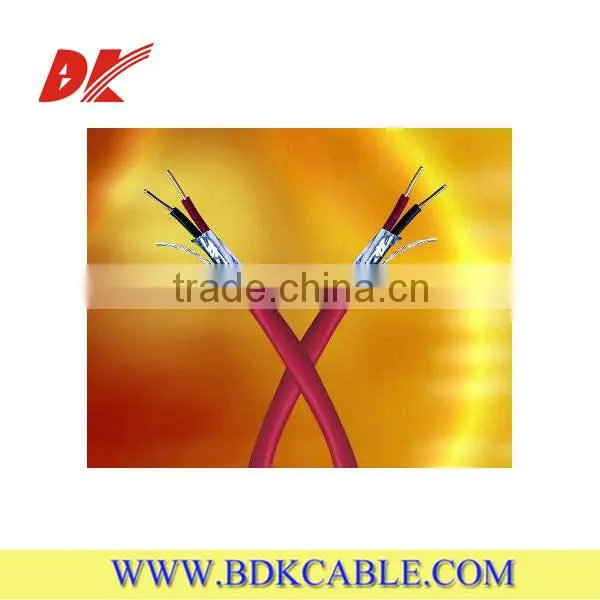

Fire proof electric wire Australian electrical cable , These cables are installed to supply power to building essential services including fire alarms, sprinkler control system, emergency and evacuation lighting and smoke control systems, such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels.
General Information:
Rated Voltage : 0.6/1KV
Cores: 1C, 2C, 3C, 4C, 5C, 2C+E, 3C+E, 4C+E
Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 ; Multi core: 0.75 mm2 ~ 35 mm2
Standard : AS/NZS 3013
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Sheath: LSZH compound
Max. Operating Temperature : 90℃, can be 110℃ and 125℃ as per requirement
COMPANY OVERVIEW:
PRODUCTION WORKSHOP:
MAIN QUALITY INSPECTION EQUIPMENT
Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial dischargeinspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,
Cross-linkedcutting machine,etc.
CERTIFICATES:
Shenzhen Bendakang Cables Holding Co., Ltd. is the leading manufacturer of Electric and Communication Cables in South China. We have got the ISO9001, ISO14001 and OHSMS18001 certificates,supplying and exporting all kinds of Electric Cables for over 15 years. Our company are well organized, producing and inspecting our products seriously according to national standard GB and international standards, such as IEC, BS, CE, AS/NZS and other standards.
Why Choose Us ?
More competitive price and standard quality.
Experienced engineering team work, latest technological machinery and new tech available.
Market-oriented management, OEM,OBM and ODM acceptable.
Standardized Quality Control system and operation.
Thank you very much for visiting !
