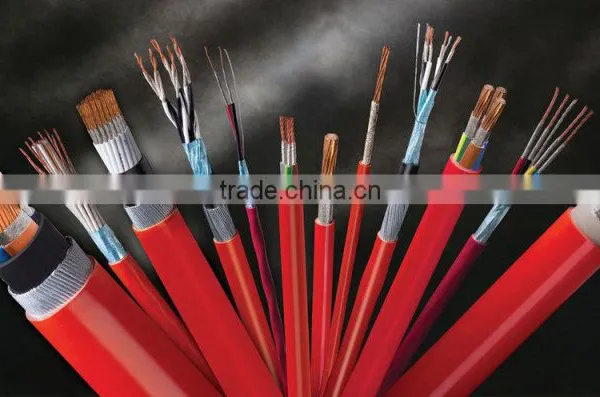

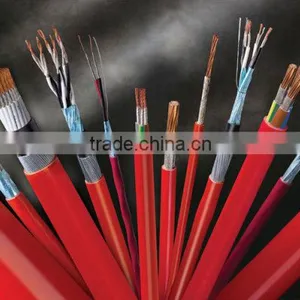

High Quality LSZH Fire Rated Power Cable
These cables are installed to supply power to building essential services including fire alarms, sprinkler control system, emergency and evacuation lighting and smoke control systems, such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels.
Specifications
1. Voltage rating: 600/1000V( 0.6/1KV)
2. Conductor: 1 core 1.5mm²~300mm²; multi core:0.75mm2~35mm2, Class 1/2 Plain annealed copper wires,solid or stranded with mica tape wound
3. Insulation: XLPE or LSZH compound
4. Sheath: LSZH compound
5. Normal operating temp.: 90°C, can be 110°C and 125°C as per requirement
6. Standard applied: AS/NZS 3013
7. Cores:1C, 2C, 3C, 4C, 5C, 2C+E, 3C+E, 4C+E
8. Cross section area: 1 core 1.5mm²~300mm²; multi core:0.75mm2~35mm2,
9. Color: Red, black,blue,white for active core,green/yellow for earth core,orange or red or black for sheath
10.Remark: the cable can be shielded with aluminum foil with one earth core tinned copper or tinned copper wire braiding and other property
:
Technical Data:
