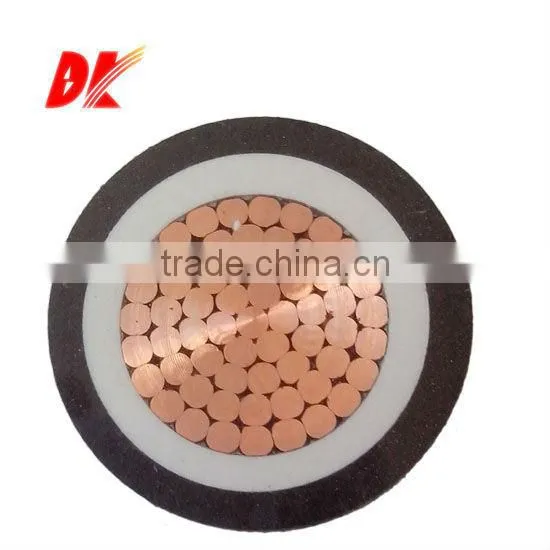

customer satisfy required PVC wire and cable
Conductor:
Soft annealed stranded copper wires to BS 6360, class 2, concentrically stranded in successive layers, in
opposite direction, to form the stranded conductor.
Sheathing:
An outer protection of extruded PVC compound is applied over the armor.
Voltage rating: 600/1000 V
Insulation:
The conductors are insulated with a layer of extruded XLPE compound.
Filling:
The assembled cable is filled with a layer of PVC compound in order to fill the interstices between the
cores and render the cable round.
Armoring:
Consists of single layer of galvanized steel wires of appropriate size.
Operating temperature:
90°C continuous normal operation,130 °C for emergency overload condition and 250 °C for short circuit condition
Remark: the cable can be of flame retardance, fire resistance and other property
Application:
For outdoor and indoor installations in damp and wet locations, laid direct in the ground where excessive
mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well a
in locations susceptible to sliding.
