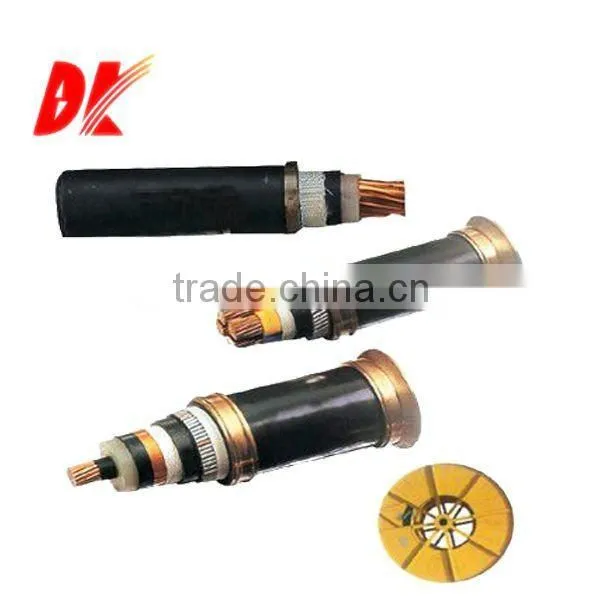

BS5467 Armored Power Kabel

US$ 0.1 - 99 MOQ: 1 Kilometer

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

BDK

Model Number:

armored Cable

Shenzhen Bendakang Cables Holding Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name BDK

Model Number armored Cable

Insulation Material XLPE

Type Low Voltage

Application Other, Power Station, Underground

Conductor Material Copper

Jacket PVC

Specifications

LSZH Steel Wire Armored Cable
Standards apply:BS5467, IEC 60502 ISO9001
Low smoke zero halogen sheath
OEM welcome

Armored Cable
LSZH Steel Wire armored


Application:: SWA Cable -LSZH Steel Wire Armored power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
Standards:: BS6724
Conductor:: Class 2 stranded plain annealed copper conductor to BS EN 60228:2005 (previously BS6360)
Insulation:: XLPE (Cross-Linked Polyethylene)
Bedding:: LSZH (Low Smoke Zero Halogen)
Armouring:: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour)
Sheath:: LSZH (Low Smoke Zero Halogen)
Sheath Colour:: Black
Voltage Rating:: 600/1000V
Temperature Rating:: 0°C to +90°C
Minimum Bending Radius:: 1.5mm² - 16mm²:
6 x overall diameter

25mm² and above:
8 x overall diameter
Core Identification:: 1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification: White Cores with Black numbers

RoHS Compliant

SWA Cable - BS6724 Steel Wire Armoured LSZH

No. of Cores x Cross Sectional Area# x mm²	Nominal Overall Diametermm
1 x 50.0	17.5
1 x 70.0	20.2
1 x 95.0	22.3
1 x 120.0	24.2
1 x 150.0	27.4
1 x 185.0	30.0
1 x 240.0	32.8
1 x 300.0	35.6
1 x 400.0	40.4
1 x 500.0	44.2
1 x 630.0	48.8
1 x 800.0	55.4
1 x 1000.0	60.6
2 x 1.5	12.1
2 x 2.5	13.6
2 x 4.0	14.7
2 x 6.0	15.9
2 x 10.0	18.0
2 x 16.0	20.4
2 x 25.0	20.4
2 x 35.0	23.3
2 x 50.0	25.8
2 x 70.0	29.0
2 x 95.0	33.1
2 x 120.0	36.1
2 x 150.0	39.3
2 x 185.0	44.7
2 x 240.0	49.0
3 x 1.5	12.6
3 x 2.5	14.1
3 x 4.0	15.3
3 x 6.0	16.6
3 x 10.0	19.5
3 x 16.0	21.6
3 x 25.0	25.5
3 x 35.0	28.0
3 x 50.0	28.5
3 x 70.0	32.2
3 x 95.0	37.0
3 x 120.0	40.4
3 x 150.0	45.5
3 x 185.0	49.8
3 x 240.0	55.1
3 x 300.0	60.2
3 x 400.0	66.6
4 x 1.5	13.5
4 x 2.5	15.0
4 x 4.0	16.4
4 x 6.0	18.7
4 x 10.0	21.1
4 x 16.0	22.9
4 x 25.0	27.6
4 x 35.0	30.4
4 x 50.0	32.0
4 x 70.0	37.7
4 x 95.0	41.7
4 x 120.0	47.1
4 x 150.0	51.4
4 x 185.0	56.6
4 x 240.0	63.0
4 x 300.0	68.8
4 x 400.0	78.1
5 x 1.5	14.3
5 x 2.5	16.3
5 x 4.0	17.8
5 x 6.0	20.0
5 x 10.0	22.9
5 x 16.0	26.6
5 x 25.0	31.5
5 x 35.0	34.8
5 x 50.0	40.4
5 x 70.0	46.3
7 x 1.5	15.2
7 x 2.5	17.1
7 x 4.0	19.7
12 x 1.5	19.4
12 x 2.5	22.4
12 x 4.0	25.7
19 x 1.5	22.2
19 x 2.5	26.6
19 x 4.0	29.3
27 x 1.5	26.7
27 x 2.5	30.7
27 x 4.0	34.4
37 x 1.5	29.0
37 x 2.5	33.8
37 x 4.0	39.2
48 x 1.5	32.7
48 x 2.5	39.3
48 x 4.0	44.1
