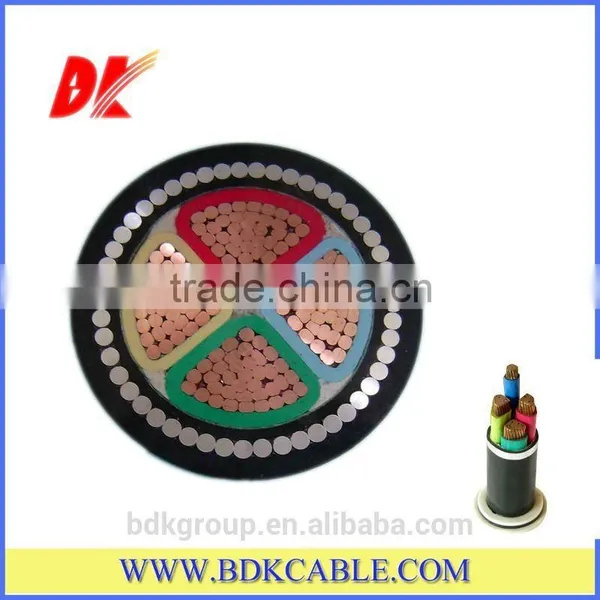

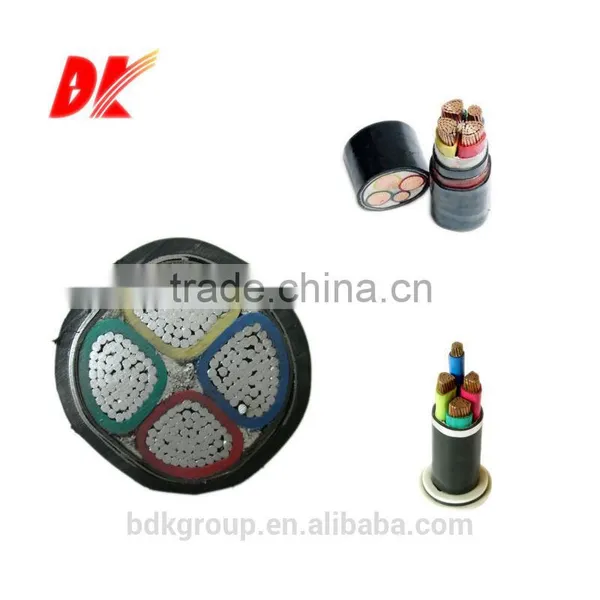

Armoured cable
Specification:
1.Voltage Rate:0.6/1KV
2.Cores:1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E
3.Range of Nominal cross section:1.5 mm2 ~ 630 mm2
4.Application
It applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.
5.Standard:IEC60502, BS6346, GB/T12706
6.Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation PVC(Polyvinyl Chloride) type TI1
Colour Code 1 Core : Brown ,2 Cores: Brown or Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey,Above 5 Cores: White Cores with black numbers
Filler(optional) PVC or Polypropylene yarn
Binder Tape(optional) Polyester (Mylar) tape
Inner Sheath/ Bedding PVC (Polyvinyl Chloride)
Armour Single Core: AWA (Aluminum WireArmour) Multi Core: SWA (Steel Wire or Tape Armour)
Outer Sheath PVC(Polyvinyl Chloride), type TM1
7.Temperature rating -20°C to +60°C
8.Bending radius Single core: 10 x overall diameter
Multicores: 8 x overall diameter
9.Flame retardant IEC60332 part 1, BS4066 part 1
