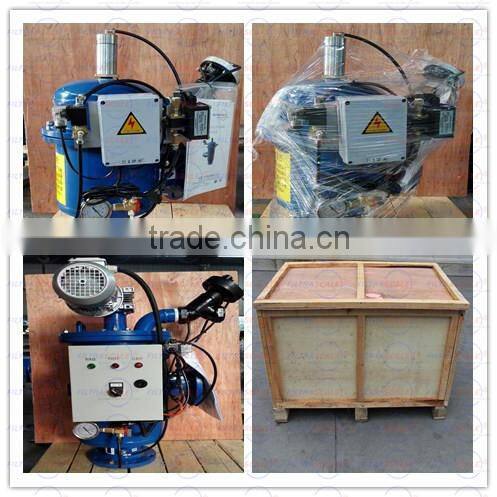

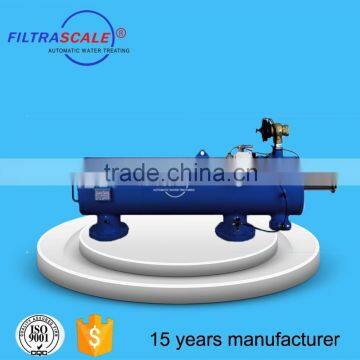

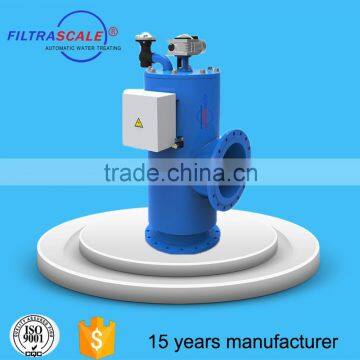

Filtrascale Automatic slagging automatic self cleaning filter

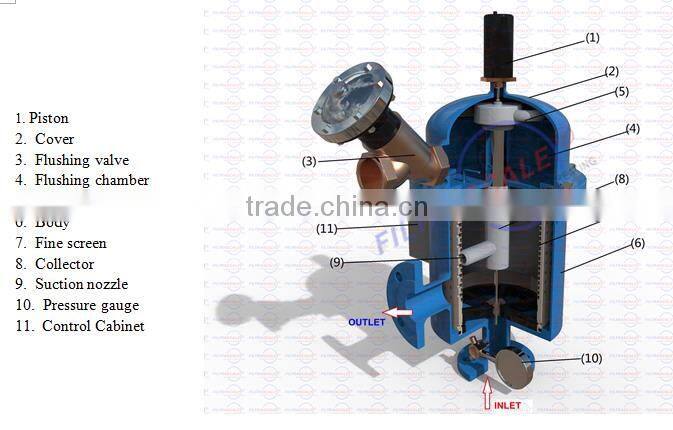

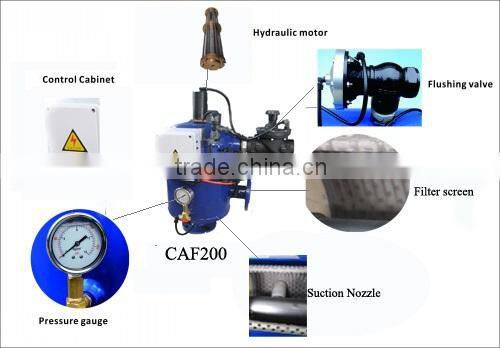

 Structure

 Operations

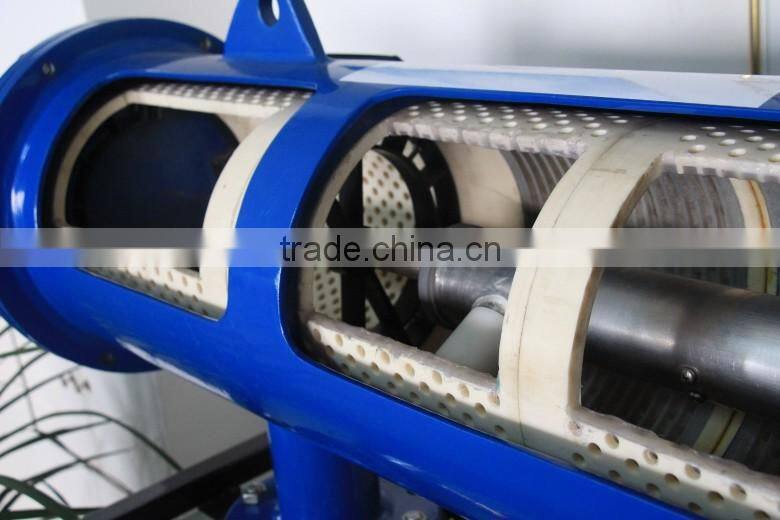

The main element is made of stainless steel with a lage filtration open area for water flow in order to withstand high dirt load and pressure.

Cleaning of the screen is performed once the pressure loss  across the filter has reached the preset value [up to 0.5 bar(7 psi)].

The flushing valve opens and pressure is released from the hydraulic piston, water flows outside through the flushing valve.

Pressure in the hydraulic motor chamber and the dirt collector is significantly lowered, the dirt collector nozzles movement and rotation cleans the whole screen internal surface.

The flushing cycle takes 5 seconds. The flushing valve closes at the end of the cycle and the filter is clean.

Characteristics about the automatic self-cleaning filter

1.simple structure.

2.filter traps does not need replacement

3.Shot anti-cleaning time, small loss in pressure and flow

4.Long useful life

5.Equipment can be connected with the central control system

6.High-precision filter

7.Applicable to different water quality

8.Few wearing parts, without supplies. Low operating

9.Continuous flow during automatic anti-washing

10.Action for automatic self –cleaning filter

 Filter accuracy conversion

 Filter working pressure conversion

Filter In/Out Diameter conversion

Selection of the filter, please consider the following factors

1.Normal flow

2.Pressure of the pipeline system

3.Accuracy of the filter which user required

4.The concentration of suspend substances in the filter impurities

5.Physical and chemical properties about the filter media

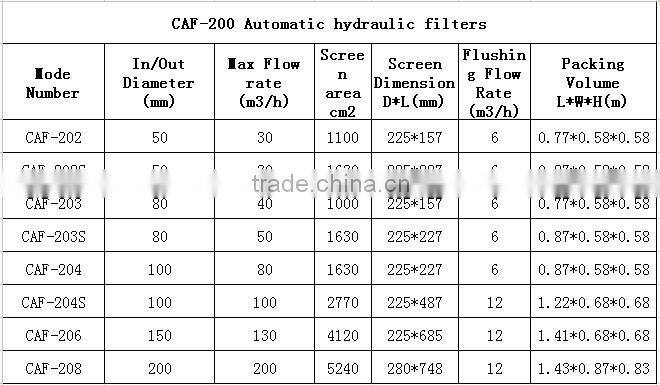

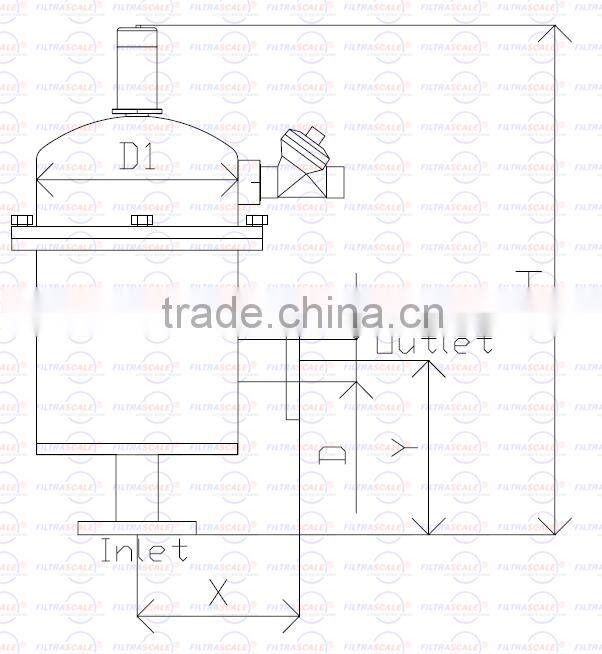

Specification

 Instalation
