automatic agricultural water filtration equipment self cleaning strainer
Filtrascale offers automatic agricultural water filtration equipment self cleaning strainer. Qualified support is available at all stages of cooperation, from evaluation of manufacturing facilities and performance of on-site filtration runs to delivery, training, consulting and servicing after installation of the equipment. Our products have been used in industrial, agriculture irrigation and municipal and many fields.
Industrial: the circulating cooling water of metallurgy, electricity, chemical, spinning,papermaking, automobile, sugaring , industry etc.
Municipal: domestic water, water reuse, sea water desalination, wastewater treatment etc.
Place of Origina; |
Sichuan,China(Mainland) |
Brand Name |
FILTRASCALE |

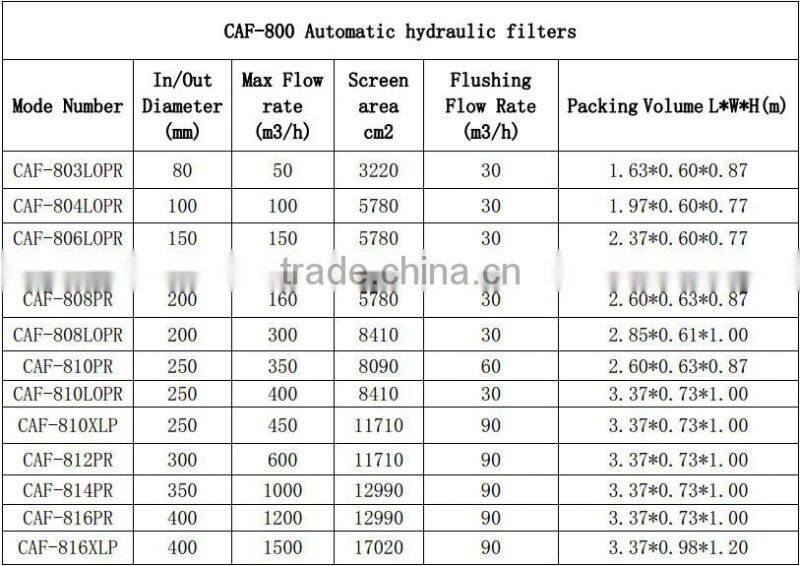

Model Number |
CAF814PR |
Accuracy(μm) |
25-400UM |
MAX flow rate |
1000m3/h |
pressure loss |
0.1bar |
Backwashing time |
5seconds |
Working pressure |
2-16bar |
Max. water temperature |
69(149°F) |

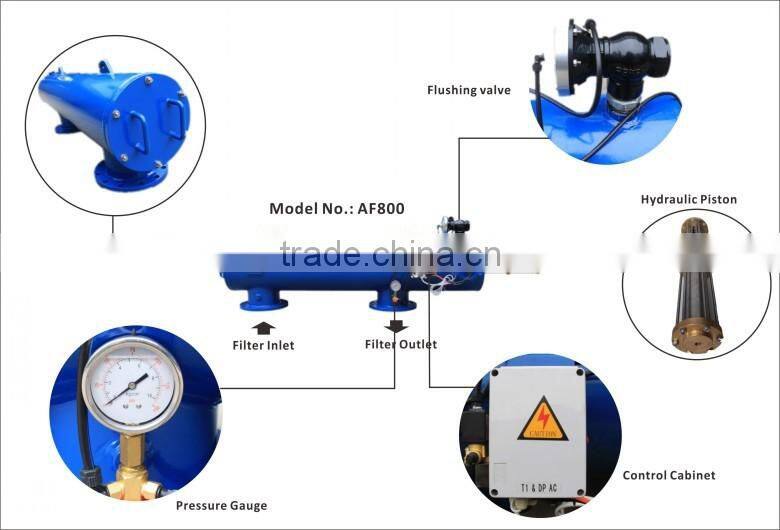

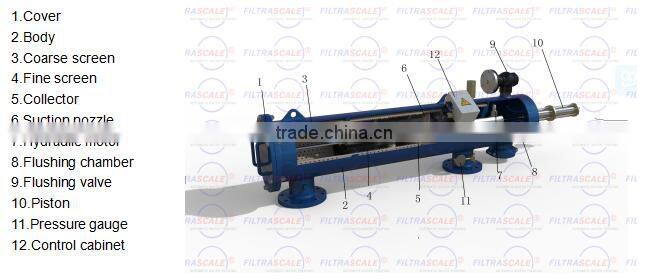

Structure
The Filtering Process
The filter is equipped with a coarse screen that protects the finer screen from stones
and larger particles.
The coarse screen can be periodically clean manually. Automatic flushing of the fine screen is activated once the pressure differential (ΔP) in the filter reaches pre-determined value (up to 0.5 bar).
During the flushing cycle, the flushing valve opens, pressure is released from the hydraulic piston and debris lade water is discharged through the flushing valve.
Pressure in the hydraulic motor chamber and the dirt collector is significantly lowered causing the dirt collector nozzles move along and rotate cleaning the whole internal screen surface. The flushing cycle takes 5 seconds.
The flushing valve closes at the end of the cycle, pressure reapplied to the piston, moving the nozzles back to their rest position, and the filter is cleaned.
During the whole process water supply is uninterrupted
Characteristics about the automatic self-cleaning filter
1.simple structure.
2.filter traps does not need replacement
3.Shot anti-cleaning time, small loss in pressure and flow
4.Long useful life
5.Equipment can be connected with the central control system
6.High-precision filter
7.Applicable to different water quality
8.Few wearing parts, without supplies. Low operating
9.Continuous flow during automatic anti-washing
10.Action for automatic self –cleaning filter
Filter accuracy conversion
Micron |
10 |
25 |
30 |
40 |
50 |
80 |
100 |
120 |
150 |
200 |
400 |
800 |
Mesh number |
1500 |
650 |
550 |
400 |
300 |
200 |
150 |
120 |
100 |
80 |
40 |
20 |
Mm |
0.01 |
0.025 |
0.03 |
0 |
0.05 |
0.08 |
0.1 |
0.12 |
0.15 |
0.2 |
0.4 |
0.8 |
Filter working pressure conversion
Mpa |
Bar |
Kg |
Psi |
1.00 |
10 |
10.20 |
144.99 |
0.10 |
1.00 |
1.02 |
14.50 |
0.098 |
0.98 |
1.00 |
14.22 |
Filter In/Out Diameter conversion
mm |
50 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
Selection of the filter, please consider the following factors
1.Normal flow
2.Pressure of the pipeline system
3.Accuracy of the filter which user required
4.The concentration of suspend substances in the filter impurities
5.Physical and chemical properties about the filter media
Specification
A time basis backup (preset by the customer), guarantees that flushing cycle will occur even if the head loss has not reached the present value.
Anti frost: special control system for cold climate conditions.
Electric current: 110V, 220V, single phase, 24V and solar energy.
Material of construction: SST-304, 316, 904, Duplex, Titanium
Available controllers: electronics, timer, air actuated, computerized and custom design

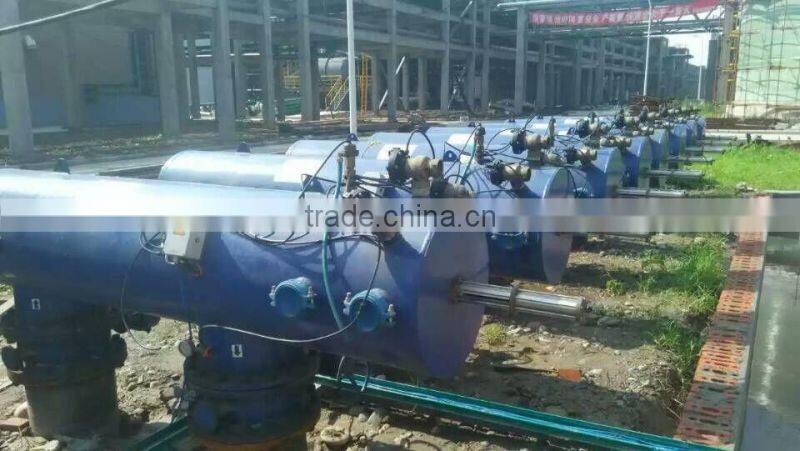

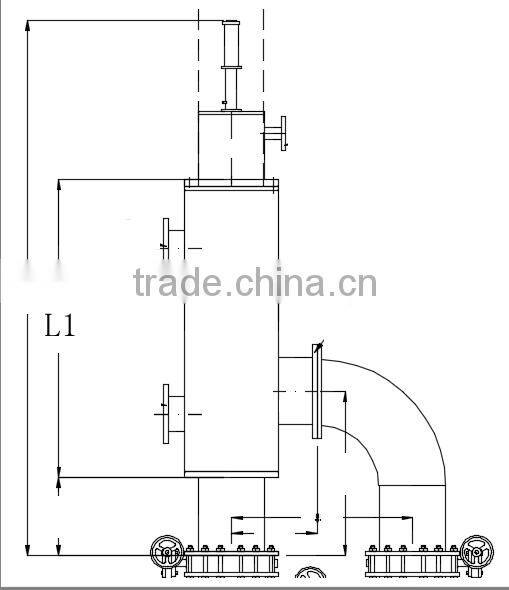

Instalation
Product details :
All of our product accessories are strictly selectived and precision mached, all the products are in accordance with international technical standards
Fine Screen & Coarse Screen:
·316L stainless steel screen, sturdy and durable.
·Patent hot pressing composite technology, the inner surface is super flat,without welds.
·PVC-U support, light weight and easy to maintain.
·Modular design, using square screw thread connection, good stability.
·Inside-out, suitable for sucking and brush cleaning method.

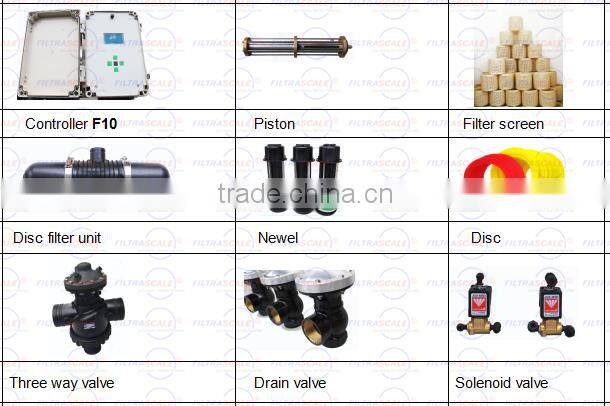

Other automatic self cleaning filter fitting
Application:
Industrial: the circulating cooling water of metallurgy, electricity, chemical, spinning,
papermaking, automobile, sugaring , industry etc.
Municipal: domestic water, water reuse, sea water desalination, wastewater treatment etc.
Irrigational: agricultural irrigation, green landscape, golf course etc.
we are the one of leading filtration manufacture in China, we hope to give the best service for you, We consider every business serious.We consider every customer as our VIP. we are looking forward to cooperating with you.
One of our work area. our worker have more than 10years experiences, They are all happy every day, because thier home isn't far from the factory.
We are the high-tech enterprises with more than 50 items of China national technology patent and 2 patents of invention in water treatment;Ww get the certification of the ISO9001, ISO14001, OHSAS
Paterners
According to your requirements we can transport the products to our customers by air, sea , land transportation and ect.
If you have any question, please contact me freely~
