Auto Leveling and Cut to Length Line 1

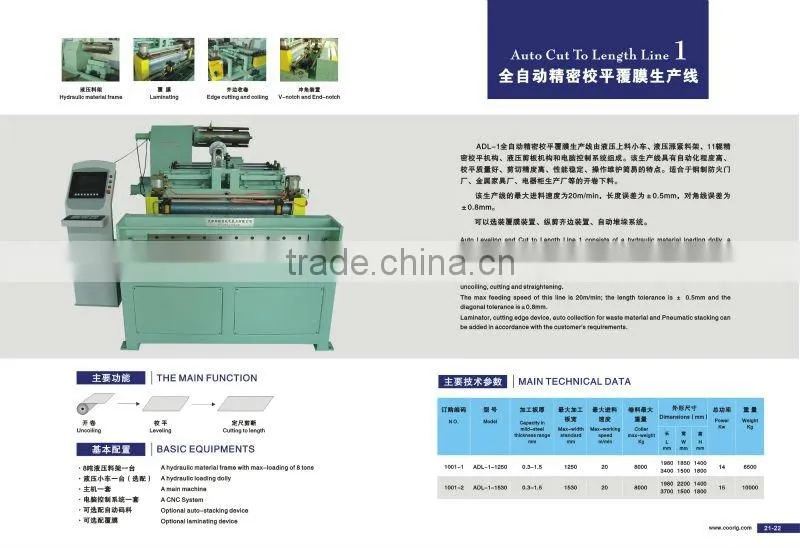

Auto Leveling and Cut to Length Line 1 consists of a hydraulic material loading dolly, a hydraulic tensioning material frame, 11leveling rollers device, hydraulic shearing and CNC system. With the features of high precision and automation,straightening of good quality, stable performance and easy to maintenance, this line is usually used by the steel fire door and window factory, metal furniture factory and electrical cabinet factory for sheet metal uncoiling, cutting and straightening.
The max feeding speed of this line is 20m/min; the length tolerance is 0.5mm and the diagonal tolerance is
0.8mm.
Laminator, cutting edge device, auto collection for waste material and Pneumatic stacking can be added in
accordance with the customer's requirements.
Basic Equipments:
- A Hydraulic material frame with max-loading of 8 tons
- A hydraulic loading dolly
- A main machine
- A CNC System
- Optional auto-stacking device
- Optional laminationg device

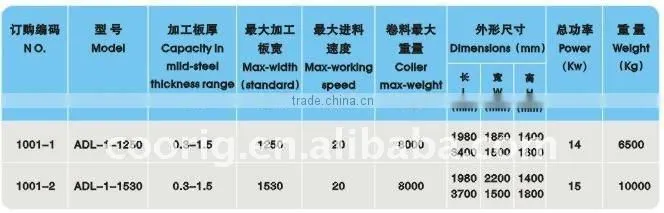

Main Technical Data
| No. | Model |
Capacity in mild-steel thickness range (mm) |
Max-width(standard) (mm) |
Max-working speed (m/min) |
Coiler max-weight (Kg) |
L*W*H (mm) |
Power (Kw) |
Weight (Kg) |
| 1001-1 | ADL-1-1250 | 0.3-1.5 | 1250 | 20 | 8000 | 1980*1850*1400 | 14 | 6500 |
| 1001-2 | ADL-1-1530 | 0.3-1.5 | 1530 | 20 | 8000 | 1980*2200*1400 | 15 | 10000 |
Work Flow:
The main technical data:

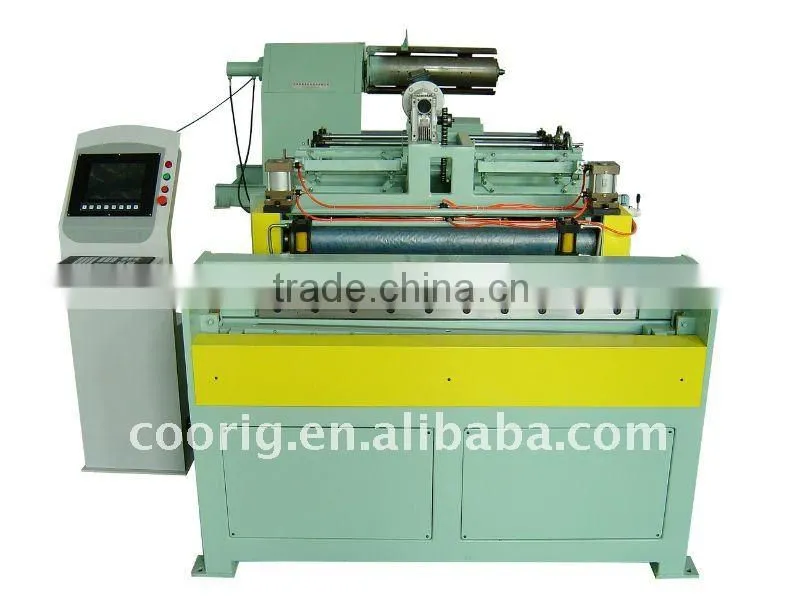

Appearance of the Machine:
Certificate:
- Packaging Detail: A 20ft Container
- Delivery Detail: 25 Days after confirmation of P/I and receive 30% deposit.
- After service and maintenance
- The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ ,MSN .email ,remote assistance ,and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance.
- Tianjin COORIG Technology Co., Ltd. was established in 2004 which is a professional manufacturer for HVAC duct processing equipments and sheet metal forming equipments, our company has passed the ISO9000 certification and BV certification, develop a stable, efficient and automated product is our responsibility.
- COORIG uphold the “automation”, “fast and efficient service” as the core concept, always insist on technological innovation, independent research and development of new products to meet the diverse needs of customers, we have obtained the patents for national utility models. The company’s core products are auto duct line series and CNC plasma cutting machine series. Our products not only has a large market share in our domestic market, but also exported to Russia, India, Brazil, Australia, the Middle East, Southeast Asia, South America etc in 24 countries and regions.
- Services create value, Technology leading the trend, Professional achieved the future, select COORIG is your vision!
