Product Details
Condition: | New | Type: | Pipe Production Line | Pipe Material: | Other, Galvanized steel |
Application: | Other, HVAC industry | Production Capacity: | 13m/min | Place of Origin: | Tianjin, China |
Brand Name: | COORIG | Model Number: | ADL-2S-1250 | Voltage: | 380V 3PH 50Hz |
Power(W): | 13 KW | Dimension(L*W*H): | 2500*1800*1500 | Weight: | 3500 Kgs |
Certification: | ISO 9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Super Auto Duct Line 2
Super auto duct line 2 can complete TDF flange forming, cutting sheet metal for angel steel flange and pittsburgh lock forming. This line can be combined with Duplex TDF flange forming machine and Pneumatic folding machine to form a highly efficient linear production line.
Max feeding speed is 13m/min, length tolerance is +-0.5mm; diagonal tolerance is +-0.8mm.
with material saving mode and standard mode
Chinese and English language can be easily converted.
Basic configurations:
* A material frame(2 coils, the max loading per coil is 7tons)
* A transmission frame
* A main machine
* A movable pittsburgh lock forming machine
* A CNC System
Main Technical Data
No. | Model | Capacity in mild-steel thickness range (mm) | Max-width(standard) (mm) | Max-working speed (m/min) | Coiler max-weight (Kg) | L*W*H (mm) | Power (Kw) | Weight (Kg) |
1002-1 | ADL-2S-1250 | 0.5-1.2 | 1250 | 13 | 7000 | 2500*3400*1400 | 13 | 3500 |
1002-2 | ADL-2S-1500 | 0.5-1.2 | 1500 | 13 | 7000 | 2500*3800*1400 | 14.5 | 4000 |

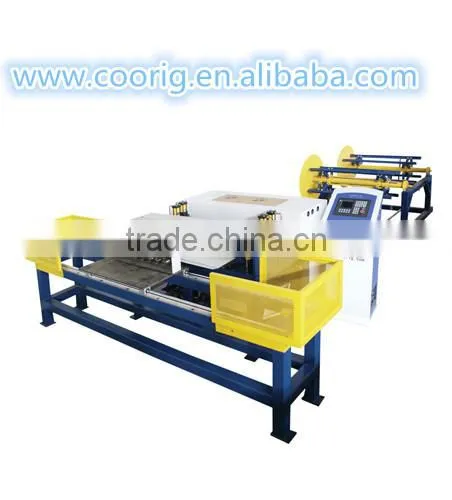

Appearance of the machine:
Certificate:
- Packaging Detail: 40ft Container
- Delivery Detail: 35 Days after confirmation of P/I and receive 30% deposit.
- After service and maintenance
- The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ ,MSN .email ,remote assistance ,and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance.
- Tianjin COORIG Technology Co., Ltd. was established in 2004 which is a professional manufacturer for HVAC duct processing equipments and sheet metal forming equipments, our company has passed the ISO9000 certification and BV certification, develop a stable, efficient and automated product is our responsibility.
- COORIG uphold the “automation”, “fast and efficient service” as the core concept, always insist on technological innovation, independent research and development of new products to meet the diverse needs of customers, we have obtained the patents for national utility models. The company’s core products are auto duct line series and CNC plasma cutting machine series. Our products not only has a large market share in our domestic market, but also exported to Russia, India, Brazil, Australia, the Middle East, Southeast Asia, South America etc in 24 countries and regions.
- Services create value, Technology leading the trend, Professional achieved the future, select COORIG is your vision!
