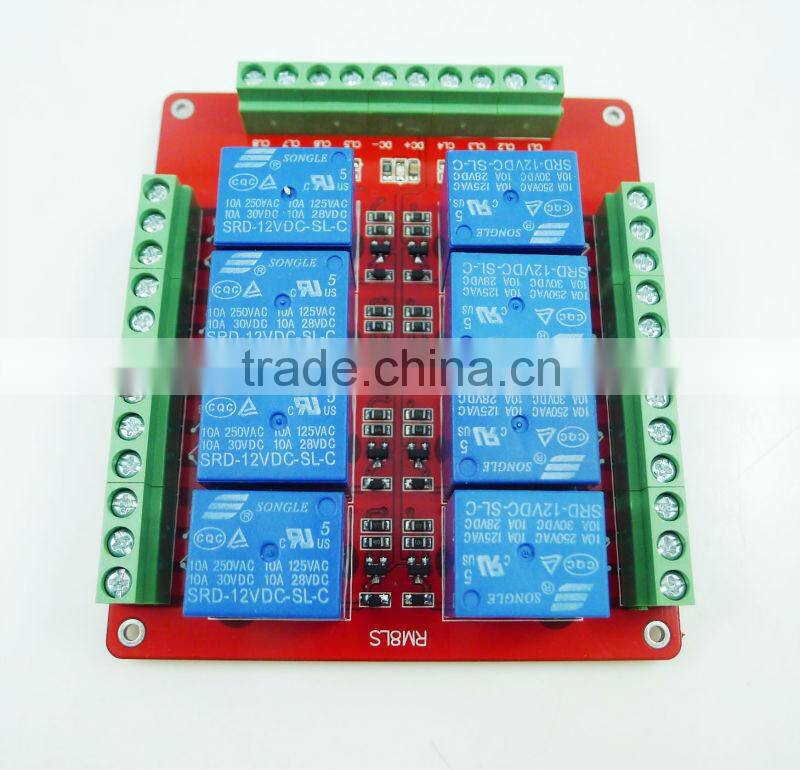

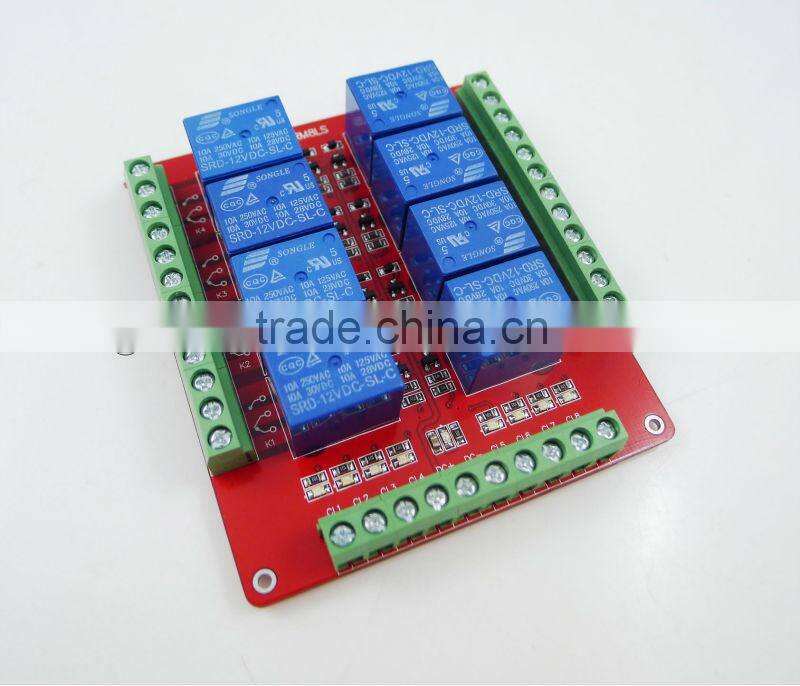

DC 12V 8 way Relay Module 8 Channel Relay For AVR ARM Development
- 100 Piece / Pieces per Month
- shenzhen/HongKong
- T/T Credit Card PayPal
- GYDDCG DC Insulation Monitoring Relay for EV Charging Station DC System IT System
- ZM12002 Industrial laser controller High precision control capability
- A06B-6150-H100 Servo amplifier To achieve high precision control of mechanical motion
- IS200ERSCG1A Excitation regulator Static converter To achieve accurate control of the motor and other equipment
- MVME6100 Embedded computer board Can be used to implement security functions
- VMIVME-7807 Pentium III compatible computer modules It can realize fast data acquisition and real-time control
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Geree | Model Number: | R018M |
Usage: | Protective |
Product Description
Specifications
1.Top quality2.In stock product
3.Reliable supplier
4.Safe transport
Specification
- the module uses genuine high-quality relay, normally open interface Maximum load: AC 250V/10A, DC 30V/10A;
- high-power high-voltage transistor 2907A, driving ability, stable performance; trigger current of 5mA;
- the relay low pull the module with limited flow resistance, low GND, microcontroller I / O port is set low;
- fault-tolerant design, even if the control line is broken, the relay will not operate;
- the power indicator (red), 8-way relay status indicator
- interface design, user-friendly, all interfaces can be drawn through terminals connect directly, very convenient
- module size: 7.9cm * 9.0m * 1.8cm (L * W * H)
- has four fixed bolt hole for easy installation
Standard 8-channel relay control module, the use of genuine high-quality power relays, high-power high-voltage transistors, red, blue signal lights, military grade double-sided PCB board, cloth board to consider a comprehensive, stable performance, can be widely used in a variety of powercontrol the types of occasions.
Module control terminal: 10-wire interface, all interfaces can be directly connected to leads, user-friendly
- VCC: external 12V
- GND: external ground
- CL1-CL8: relay control interface, low level corresponding relay
Relay outputs: 24-wire interface, all interfaces can be directly connected to leads, user-friendly
- NO1 - NO8: relay normally open interface, the relay becomes vacant before the pull shorted with COM
- COM1 - COM8: public interface relay
- NC1 - NC8: relay normally closed interface, the relay shorted together with COM, pull vacant
