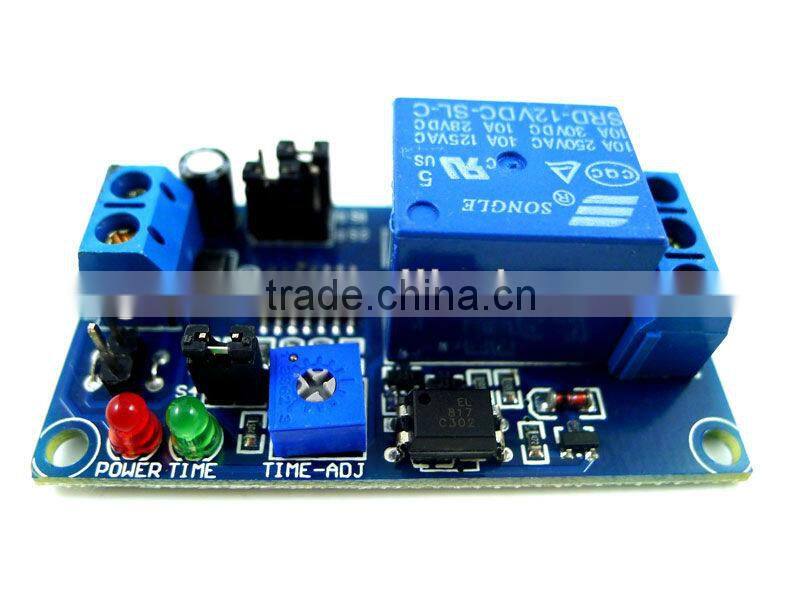

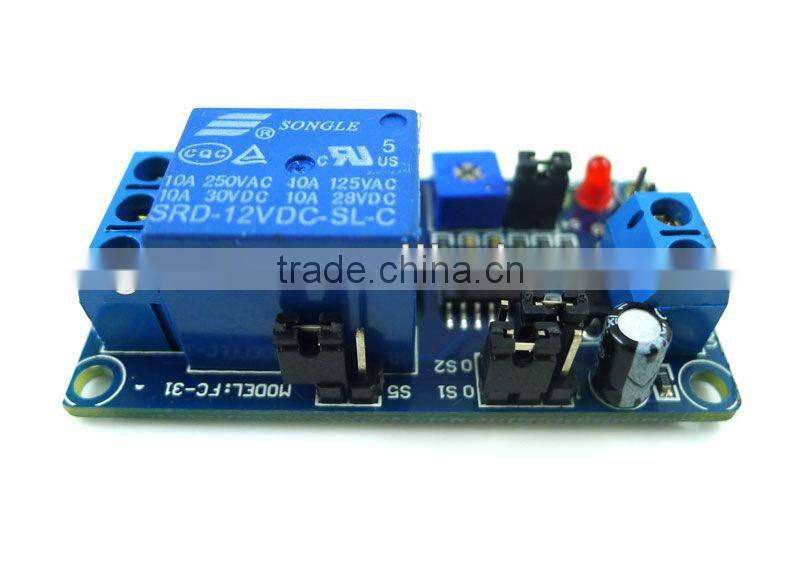

Help CenterOn Sale 12V Normally Closed Type Trigger Delay Relay
Related Products
-
Popular 12V Car Light Control Photoresistor Relay Module Light Detect Sensor With TimerNegotiableMOQ: 10 Pieces -
12V Power Relay ModuleNegotiableMOQ: 100 Pieces
-
NEW Photoresistor Plus Relay Module Light Detection Sensor 12V Car Led Light ControlUS$ 0.1 - 3.8MOQ: 10 Pieces
-
12V Soil Humidity Sensor Controller Relay Module Automatic Watering ModuleUS$ 0.1 - 4.4MOQ: 50 Pieces
-
12V Light Control Switch the Photoresistor Plus Relay Module the Light Detection Switch Photosensitive Sensor With TimerUS$ 0.1 - 5MOQ: 50 Pieces
Specifications
1)12V normally closed type trigger delay relay delay circuit module2)good quality, fast shipping
Description :
12V normally closed type trigger delay relay delay circuit module
1. There opto isolated trigger end, anti-interference ability
2. You can use normally open type switch or sensor can trigger module
3. With 8 time ranges selected shortest 0.1s most up to 1 hour
4. Protection against power reversal protection diode, better protection module
5. Can be accessed by a large current load (250V ac 10A or 30V dc 10A)
6. With delay adjustment potentiometer clockwise adjustment time longer
7. Output relay has normally open, normally closed option
Function:
1. When the module is sensitive to the trigger terminal has closed momentary switch, the module will start delay function, while relay, delay expires, the relay back to the normally closed terminal
2. When the module is triggered delay, if there is a trigger signal is received again, the module will retiming, automatic trigger to last until the end of the delay
Electrical parameter:
Input voltage: 12V
Quiescent dissipation: 12mA
Maximum power consumption: 48mA
Relay load capacity:
250V 10A AC (2500W ideal power AC)
30V 10A DC (300W ideal power DC
Send Inquiry to This Supplier
