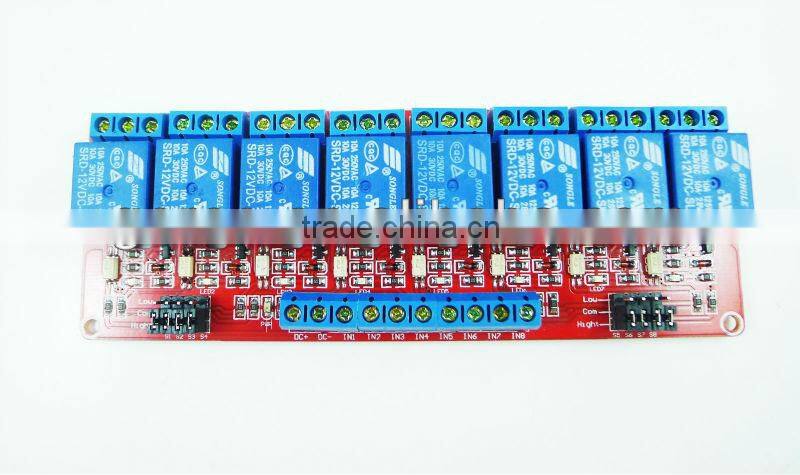

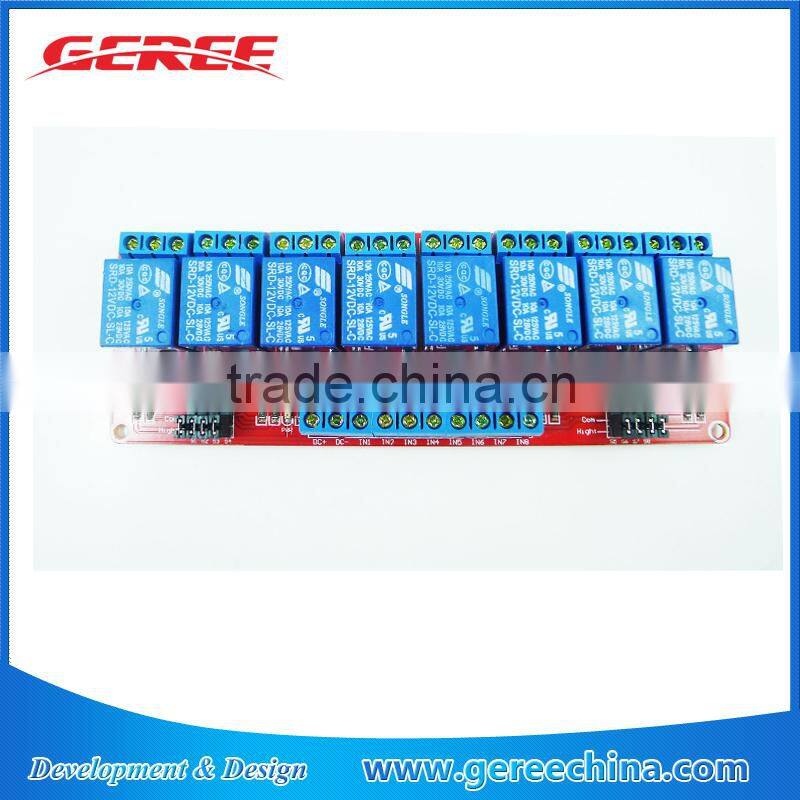

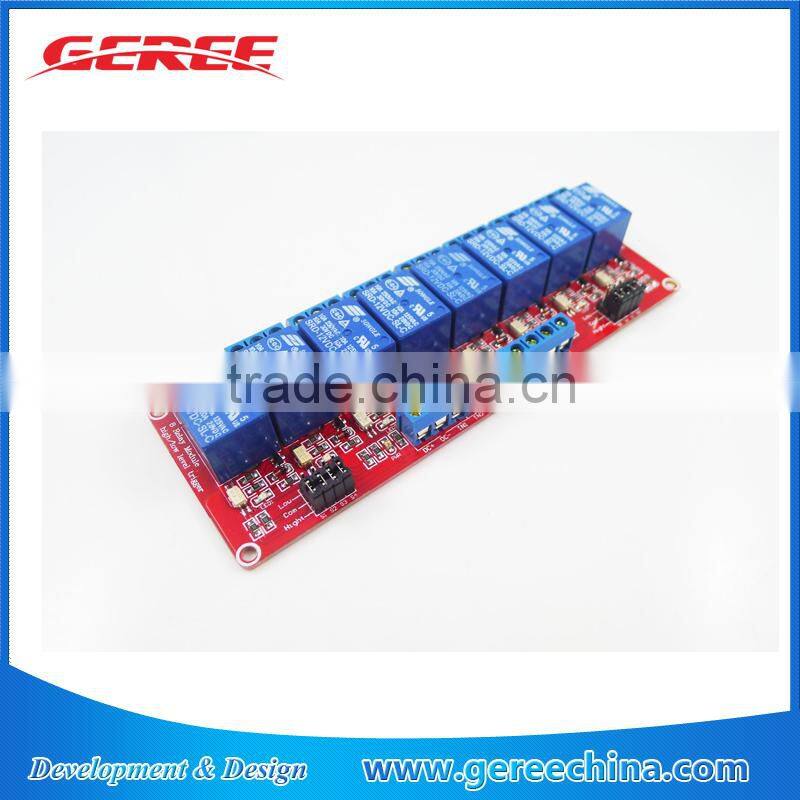

12V 8-Channel Relay Module with Optocoupler H/L Level Triger for Arduino
Product description:
Module description:
1. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
2. using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
3. the module Operating voltage 12V;
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design, even if the control line is broken, the relay will not operate;
6. the power indicator (green), the relay status indicator (red)
7. the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
8. module size: 73mm*50mm*17mm (L*W*H)
Module interface:
1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN1,2,3,4,5,6,7,8: can be high or low level control relay
S1,S2,S3,S4, S5,S6,S7,S8 HIGHT OR LOW LEVER
Relay outputs:
1. NO1,2,3,4,5,6,7,8: normally open relay interface
2. COM1,2,3,4,5,6,7,8: Common Interface Relays
3. NC1,2,3,4,5,6,7,8: normally closed relay interface
High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
