Optocoupler H/L Level Triger for Arduino DC 12V 4-Channel 4-CH Relay Module

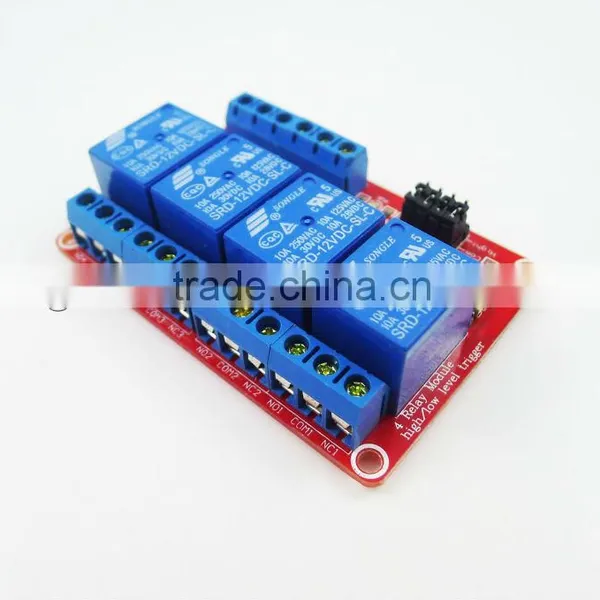

Optocoupler H/L Level Triger for Arduino DC 12V 4-Channel 4-CH Relay Module thumbnail-1
Optocoupler H/L Level Triger for Arduino DC 12V 4-Channel 4-CH Relay Module photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Geree
Model Number:
R029M
Contact Supplier Request Quote Chat Now
Shenzhen Geree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Geree
Model Number R029M
Theory Time Relay
Usage Protective
Protect Feature Other
Contact Load Low Power

Specifications

1.Top quality
2.In stock product
3.Reliable supplier
4.Safe transport



12V 4-Channel Relay Module with Optocoupler H/L Level Triger for Arduino



Product description:




Module description:
1. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
2. using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
3. the module Operating voltage 12V;
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design, even if the control line is broken, the relay will not operate;
6. the power indicator (green), the relay status indicator (red)
7. the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
8. module size: 73mm*50mm*17mm (L*W*H)



Module interface:
1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN1,IN2,IN3,IN4: can be high or low level control relay



S1,S2,S3,S4, HIGHT OR LOW LEVER



Relay outputs:
1. NO1,2,3,4: normally open relay interface
2. COM1,2,3,4: Common Interface Relays
3. NC1,2,3,4: normally closed relay interface



High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin

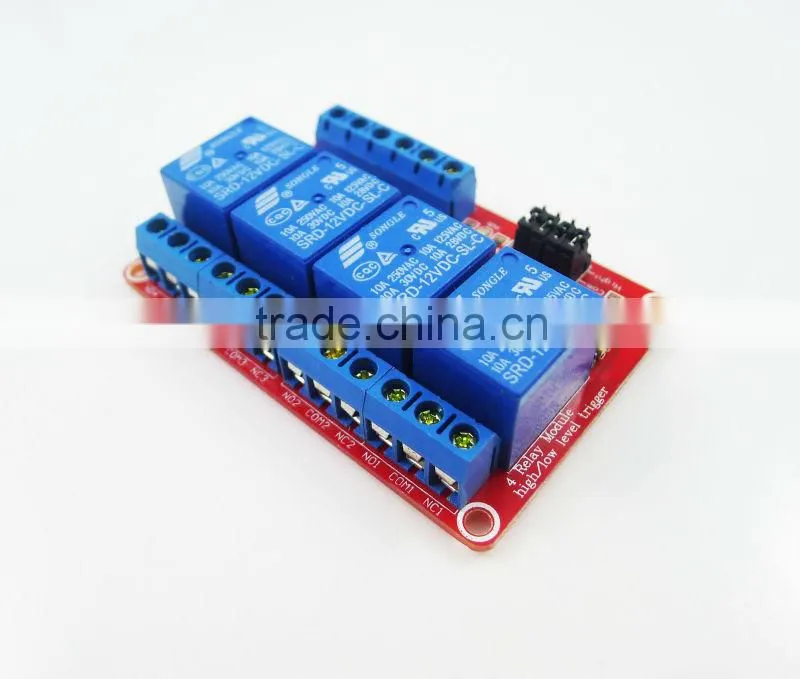

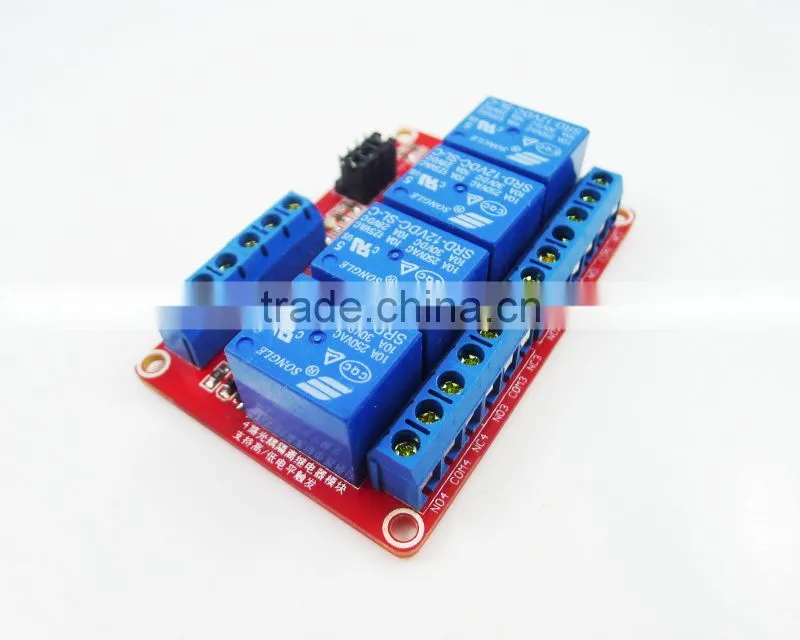

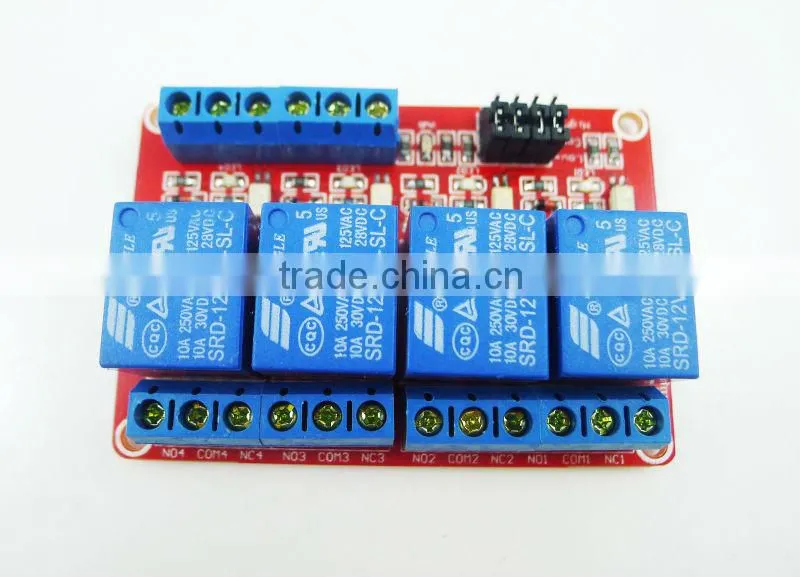

Optocoupler H/L Level Triger for Arduino DC 12V 4-Channel 4-CH Relay ModuleOptocoupler H/L Level Triger for Arduino DC 12V 4-Channel 4-CH Relay ModuleOptocoupler H/L Level Triger for Arduino DC 12V 4-Channel 4-CH Relay Module
