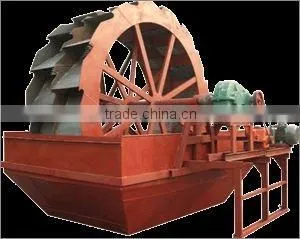

Help CenterWheel Sand Washer
Related Products
Sand Wahser
1.Weifang Heng'an Group--Dredger Factory
It was developed in the 90s of 20 Century. Our factory is the first professional manufacturer which develops and produces sand-digging machinery, sand making machinery, dredging machinery and mineral processing machinery in China.
Mainly produce kinds of sand dredgers,cutter suction dredgers,jet sand dredgers,chain bucket dredgers,sand washing machines,gold mining machines,iron extraction machines,PE pipelines,HDPE float ,accessories and so on.
Technical Parameters of HASW Sand Washing Machine
Sand sieving part | |
Dimension (L*W*H) |
7.5*2.4*3.8m |
Storage plates |
4mm |
Waste stem length |
6m |
Other materials |
8,10,12,14,16#U-Steel 4,5,9#angle iron |
Feeding machine Power |
5.5kw |
Rotary screen power |
5.5kw |
Waste stem power |
3kw |
Dirty water pump |
5.5KW |
Washing part | |
Dimension(L*W) |
2.3*4m |
Water wheel diameter |
2.6m |
Horizontal reducer |
Model 400 |
Motor model |
Y-160M-4-H-11kw |
Transmission rod |
Y-132S-4-H-5.5kw |
conveyer belt reducer |
Model 350 |
Output |
60-80m3/h |
Total power |
36kw |
Send Inquiry to This Supplier
