Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > DC-DC Converter Boost Step Up Voltage Power Supply MAX 6A 150w 10-32V to 12-35V

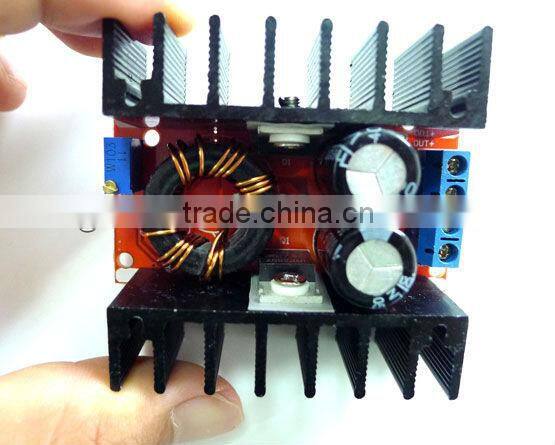

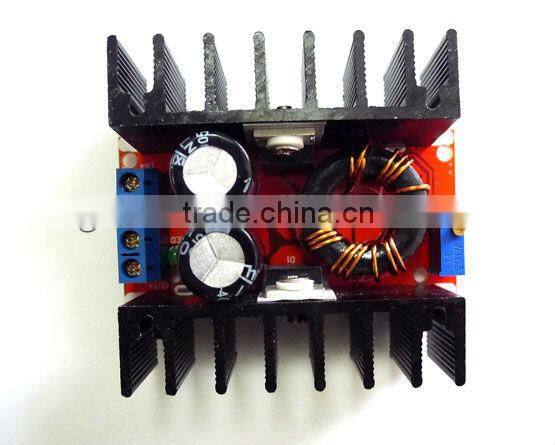

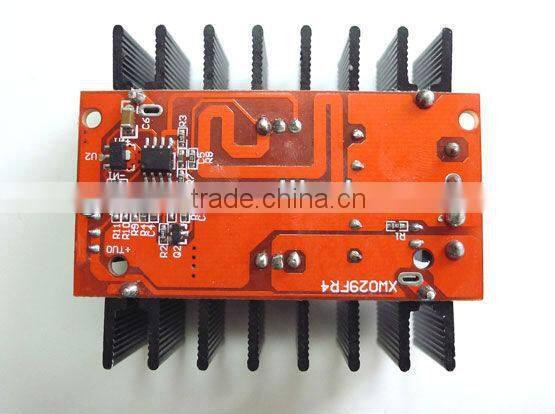

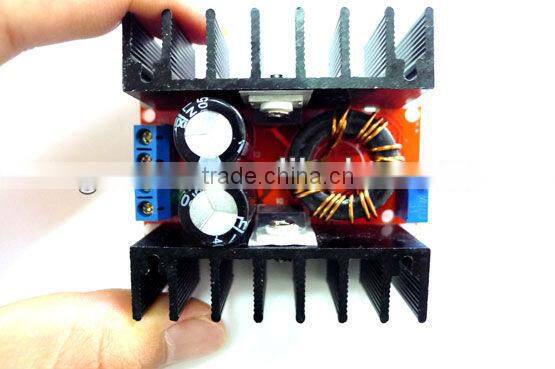

DC-DC Converter Boost Step Up Voltage Power Supply MAX 6A 150w 10-32V to 12-35V

Name: DC-DC Converter Boost Step Up Voltage Power Supply MAX 6A 150w 10-32V to 12-35V
Brand: Geree
SKU: 118678219
Availability: InStock

DC-DC Converter Boost Step Up Voltage Power Supply MAX 6A 150w 10-32V to 12-35V thumbnail-1

DC-DC Converter Boost Step Up Voltage Power Supply MAX 6A 150w 10-32V to 12-35V photo-1

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Model Number:

U005V

Type:

Voltage Regulator

Brand Name:

Geree

Contact Supplier Request Quote Chat Now

Shenzhen Geree Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number U005V

Type Voltage Regulator

Brand Name Geree

Place of Origin Guangdong, China

Specifications

1)150W Boost DC-DC 10-32V to 12-35V Converter
2)Input voltage:10-32V
3)Output voltage:12-35V

150W Boost DC-DC 10-32V to 12-35V Converter

Input: 10-32V, Output: 12-35V 6A

Featrure:

Module Properties: non-isolated step-up module (BOOST)
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)

Some Applications:

1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.

Payment Terms: T/T &Western Union are warmly welcomed.Paypal is also acceptable for samples.

Shipping Terms: Sample order send by DHL, Fedex,UPS or EMS

Delivery Time: 3-5 working days,some items are in stock.

Packing: Polybag can make the package according to customers' requirements

Warranty time : we provide 12 month warranty for all of our goods.
