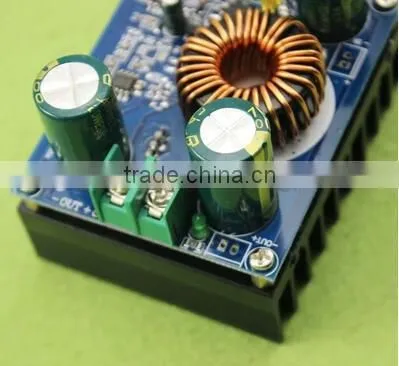

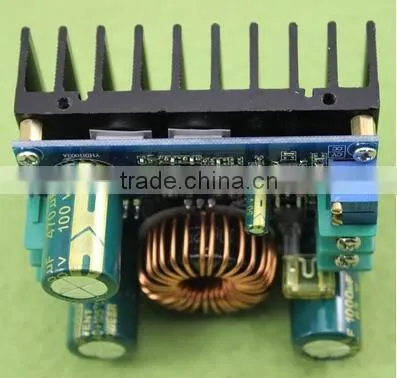

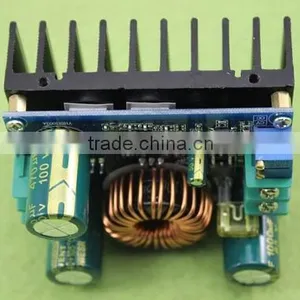

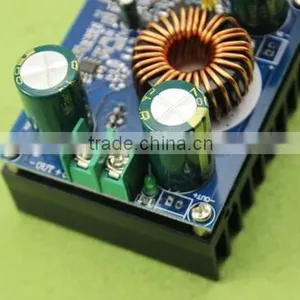

Help CenterDC DC Boost Converter 600W 9-60V to 12-80V 10A Step up Car LED Laptop Solar Pannel Power Supply
Related Products
-
DC Converter 3V to 5V 1A USB Charger Boost Module Step up for Phone IphoneNegotiableMOQ: 20 Pieces -
DC DC Boost Converter Step up Module 10-60V to 12-80V 48volt 600W Power SupplyUS$ 3 - 7MOQ: 10 Pieces
-
DC DC Boost Converter 8-60V to 12-80V 20A 1200W Step up Car Laptop Solar Battery Power SupplyUS$ 15 - 19MOQ: 10 Pieces
-
XL6009 3-32V to 5-35V DC-DC Boost Converter ModuleNegotiableMOQ: 20 Pieces
-
DC DC Converter Boost 10-32V to 36V-60V 120W Step Up Voltage Power Supply MAX 5ANegotiableMOQ: 20 Pieces

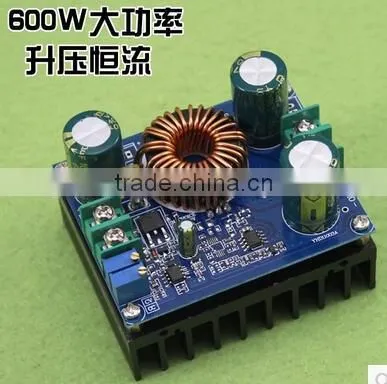

Module name:600W boost constant current module
Module property:Non isolated boost module (BOOST)(not Buck)
Input voltage:The two input voltage range (optional, through the jumper cap board selection)
1,8-16The V input (for three string lithium battery and 12V application)In this input state, do not exceed the input,Otherwise it will burn out the module!!!
Two12-60V inputFactory default range(for wide input voltage range)
Input current:16A (MAX) more than 10A, please strengthen the cooling, the board reserved for the fan interface, can be used for fan power supply cooling.
Static working current:15mA (20V L 12V, the output voltage of the Gao Jing too will be increased)
Output voltage:12-80VContinuously adjustable (default output for 19V, please refer to the description of other voltage dispensers for batch customers)
Output current:12MAX 10A more than A, please strengthen cooling (with input and output differential pressure, the greater the pressure difference between the smaller)
Constant current range:0.9-12A
Output powerInput voltage *10A, such as: input 12V*10A=120W, input 24V*10A=240W,
Input 36V*10A=360W, input 48V*10A=480W, input 60V*10A=600W
For greater power, it can be used in parallel with two modules, such as the output of 15A, which can be used in parallel with two modules,
The current of each module is transferred to 8A.
Working temperature: -40~+85 degree(the ambient temperature is too high, please strengthen the heat dissipation)
Working frequency:150KHz
Conversion efficiency:The top 95% (efficiency and input, output voltage, current, pressure difference)
Over current protection:There are (input more than 17A, automatically reduce the output voltage, there is a certain range of error.)
Short circuit protection: there is (input 20A fuse)Double short circuit protection, use more secure.
Input back protection:No, if you need to enter a string in the input string.
Output anti - irrigation:There is no need to add anti anti diode when charging.
Installation method:2 3mm screws
Connection mode:Terminal blockFreeWelding output
Module size:76*60*56mm(length * width * height)
Module weight:205 grams
------------------------------------------------------------------------------------------------
Application range:
1, DIY a regulated power supply, input 12V can, the output can be adjusted 12-80V.
2, power supply for your electronic equipment, can be with your system to set the output value of the system.
ThreePower supply for your laptop, PDA or a variety of digital products.
4, DIY a high power mobile notebook power supply: with large capacity 12V lithium batteries, let your books to go to where you can light.
5, solar panel voltage regulator.
6, to the battery, lithium batteries, etc..
7, driving high power LED lamp.
A, an input voltage range of choice: the factory default input for 12-60V. When you use 12V battery or three strings, four string lithium can be put above jumper jumper cap for short circuit, input selection 9-16v.
Two, output current adjustment method:
1, adjust the CV potentiometer, with your battery or LED, the output voltage to set the voltage you need. Such as 10 series LED voltage 37V, four series of battery 55V, etc..
2, anti clockwise CC potentiometer 30 laps around, the output current is set to the minimum, then on the LED, CC the people's position to the current you need. For battery charging, after the battery is fully discharged, and then is connected with the output, regulation CC to your desired current, for charging must use after the electric battery is allowed, because the more and the rest of the battery, the charge current is smaller. Please do not use the way of short circuit current, the circuit structure of the boost module can not be used in the way of short circuit.
