Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > HOT SALE !China Alluvial Gold Machine Mobile For Sale

HOT SALE !China Alluvial Gold Machine Mobile For Sale

Name: HOT SALE !China Alluvial Gold Machine Mobile For Sale
Brand: Heng An
SKU: 118677655
Availability: InStock

HOT SALE !China Alluvial Gold Machine Mobile For Sale thumbnail-1

HOT SALE !China Alluvial Gold Machine Mobile For Sale thumbnail-2

HOT SALE !China Alluvial Gold Machine Mobile For Sale thumbnail-3

HOT SALE !China Alluvial Gold Machine Mobile For Sale thumbnail-4

HOT SALE !China Alluvial Gold Machine Mobile For Sale photo-1

HOT SALE !China Alluvial Gold Machine Mobile For Sale photo-2

HOT SALE !China Alluvial Gold Machine Mobile For Sale photo-3

HOT SALE !China Alluvial Gold Machine Mobile For Sale photo-4

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Gravity Separator

Production Capacity:

99%

Contact Supplier Request Quote Chat Now

Weifang Heng An Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Gravity Separator

Production Capacity 99%

Place of Origin Shandong, China

Brand Name Heng An

Model Number HATJ-100

Voltage 220v/380v

Power(W) 55kw

Dimension(L*W*H) 8300*2400*4700MM

Weight 10TONS

Certification ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

HOT SALE !China Alluvial gold machine mobile For Sale

Our Advantage :

1.Good quality raw material to make the machine strong enough,

2.Patent design and experienced worker to make the performance amazing,

3.Engineer do installment and guide in t he working place directly to make sure the gold machine will work well..

2.Intruduction of our alluvial gold mining equipment

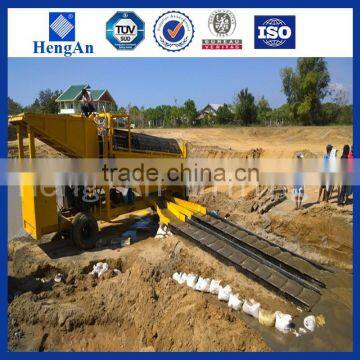

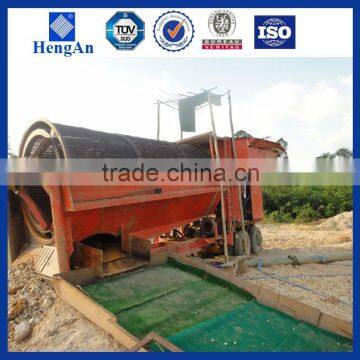

This alluvial gold mining equipment is designed for processing alluvial gold mine, river sand gold, placer gold etc.It is with wheel type chassis, can be driven by vehicles and move easily.

From hopper to trommel exhaust end.

Top: hopper—sluice for discharging stones—trommel—fixed sluice (jig)—sluice for discharging tailing material

3. Alluvial gold mining equipment Parameters:

Main Parameter
Model	HATJ-50	HATJ-100	HATJ-200
Performance
Performance
Dimension (LWH) (mm)	6600x2200x3200	830024004200	980030005175
Processing Capacity (t/h)	50-100	100-300	300-500
Main Power
Diesel engine
Power	36KW	50kw	75kw
Trommel Screen
Trommel Screen
Size (dia*length)	1300x3000	1500x4500mm	2000x5000mm
Power	7.5KW	15kw	30kw
Screen material	20CrMo	20CrMo	20CrMo
Feeder hopper
Size (LWH)	1000*6000	300022001800mm	3800*3000mm
Water system
Water system
Pump Power	15kw	22kw	30kw
Water flow	174m3/h	224m3/h	240m3/h
Head	24m	27.8m	32m
Optional equipment
Optional equipment
Grizzly, Conveyor, Sluice, Concentrator etc.
Grizzly, Conveyor, Sluice, Concentrator etc.

The capacity is from 100 to 500 ton per hour. Use best material and parts. Top quality, amazing performance, and longest life.

Why you choose us :

1.Good quality material and professional production,make sure the gold machine have a long time useful life:

2.Strictly teatingfor our gold machine before shipment to make sure the quality for the customers:

3.Professional loading team and good shipping company to make sure our gold machine can fnd you more quality.

4.Other implements for your choosing :

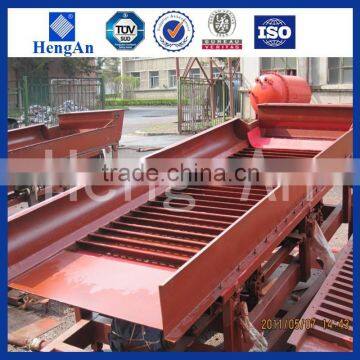

Fluctuate Sluice:

Due to high recover rate and low price, fluctuate sluice is more and more popular in gold mining market. Old mine start to replace old fix sluice by new fluctuate sluice.

concentrator

It not only used for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

Beneficiation test shows that the recovery can be 99%, especially for recovering the natural lode ore gold, when 65% Grind size are smaller than 0.074mm, the recovery is expected up to 98%. For 0.004mm size natural gold, the recovery is 97%. The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.

Gold Furnace
