Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > Wireless Serial HC-05 Bluetooth RF Transceiver Module RS232

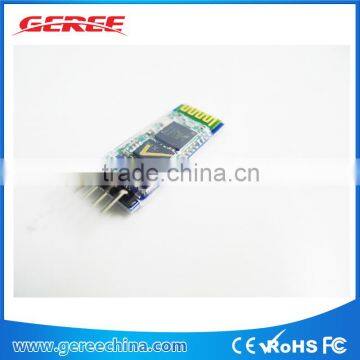

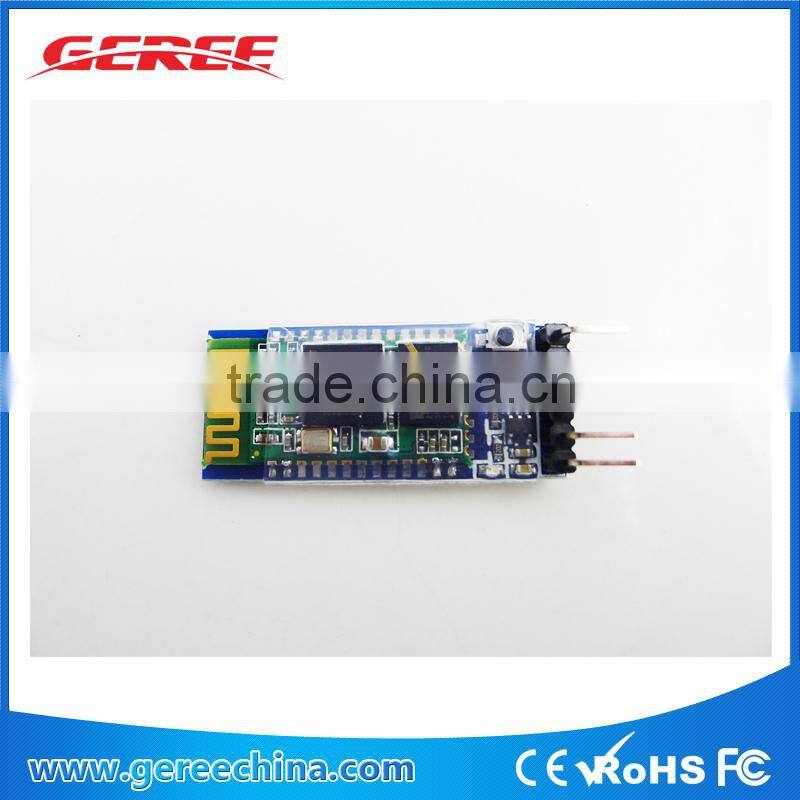

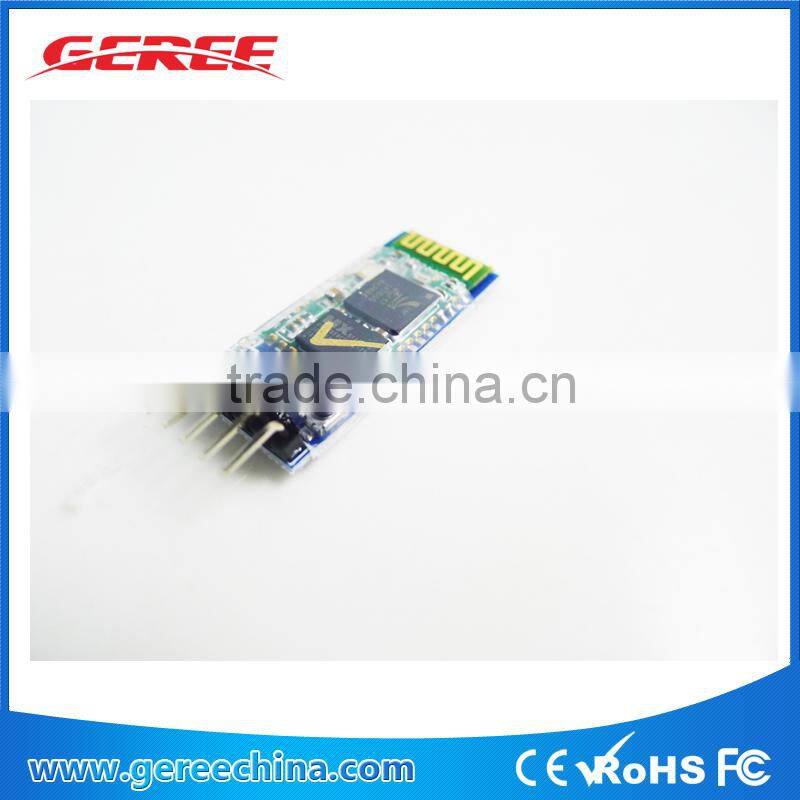

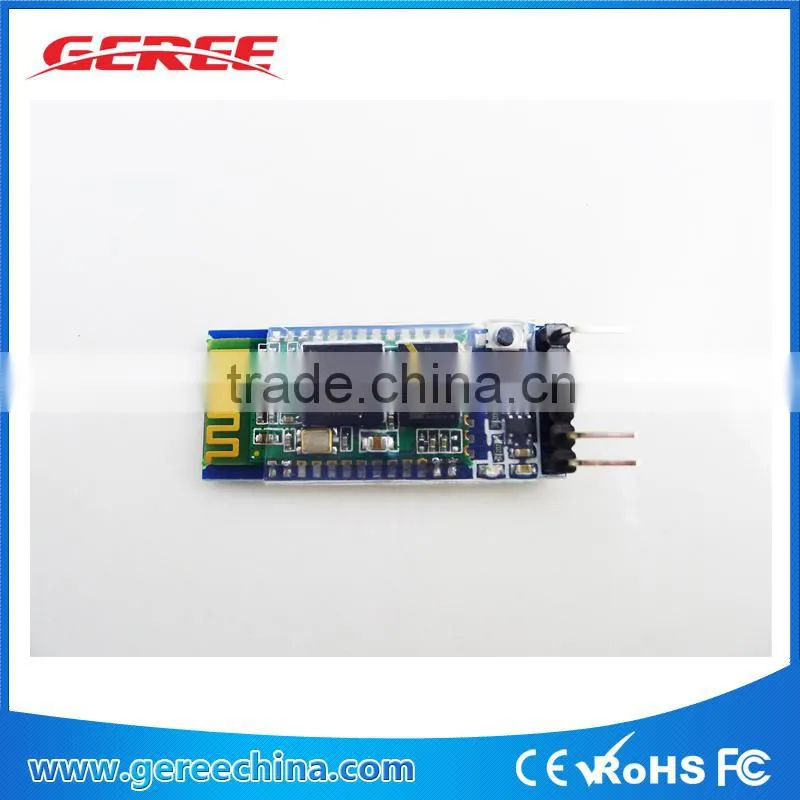

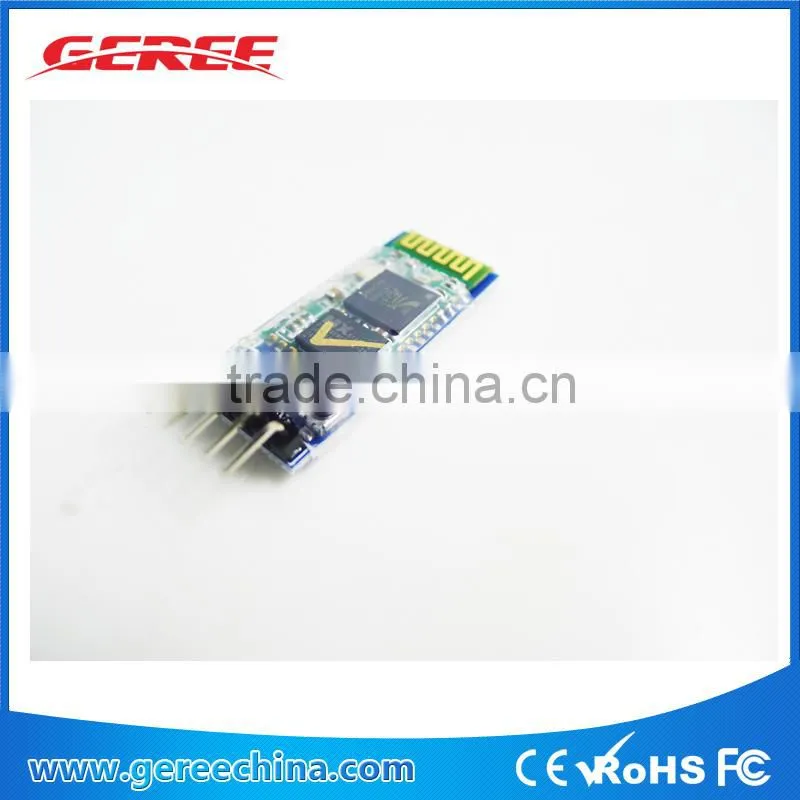

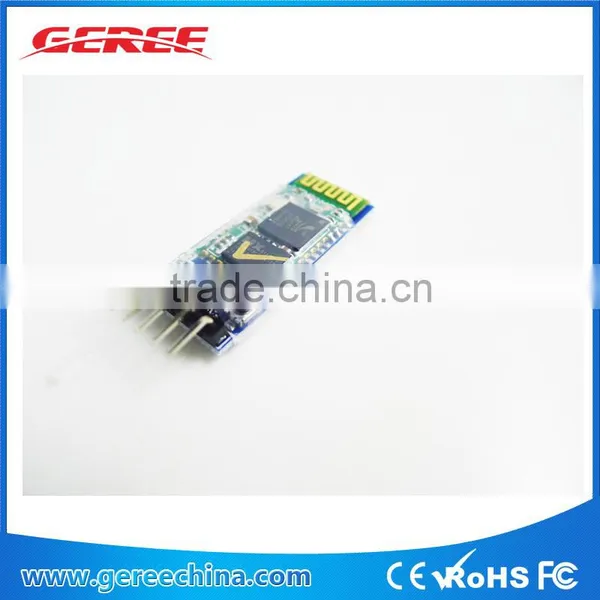

Wireless Serial HC-05 Bluetooth RF Transceiver Module RS232

Name: Wireless Serial HC-05 Bluetooth RF Transceiver Module RS232
Brand: Geree
SKU: 118668317
Availability: InStock

Wireless Serial HC-05 Bluetooth RF Transceiver Module RS232 thumbnail-1

Wireless Serial HC-05 Bluetooth RF Transceiver Module RS232 thumbnail-2

Wireless Serial HC-05 Bluetooth RF Transceiver Module RS232 photo-1

Wireless Serial HC-05 Bluetooth RF Transceiver Module RS232 photo-2

US$ 2.99 - 4 MOQ: 20 Pieces

Key Specifications

Get Latest Price

D/C:

input power supply 3.3~6V, Prohibit more than 7V No "Automatically prevent power supply peversing func", so please correctly connect power supply We advise to install "Bluetooth master module" The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU" If only the board , No any "Bluetooth Function "

Package:

Commercial Series: Bluetooth module board Series With LED indicator light, use 150mA and 3.3V regulation chip. With VCC,GND,TXD,RXD foot for the Bluetooth With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach) Compatible with bluetooth master module",slave module"or master-slave(whole) module.

Model Number:

F069M

Contact Supplier Request Quote Chat Now

Shenzhen Geree Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

D/C input power supply 3.3~6V, Prohibit more than 7V No "Automatically prevent power supply peversing func", so please correctly connect power supply We advise to install "Bluetooth master module" The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU" If only the board , No any "Bluetooth Function "

Package Commercial Series: Bluetooth module board Series With LED indicator light, use 150mA and 3.3V regulation chip. With VCC,GND,TXD,RXD foot for the Bluetooth With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach) Compatible with bluetooth master module",slave module"or master-slave(whole) module.

Model Number F069M

Type Other, module

Brand Name Geree

Place of Origin Guangdong, China

Wireless Serial Bluetooth RF Transceiver Module HC-05 RS232

Item Description

Specification:
Note:It's HC-05 Bluetooth module Slave and master two in one module
this module can be set to a transmitter or receiver, transmitter could pairing with receiver , receiver and receiver or transmitter and transmitter can't communication between, receiver could pairing with computers and cell phone bluetooth , when buying, the default for receiver.

1. It is HC-05.
2. Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards.
3. Module working voltage 3.3 V.
4. Potter default rate of 9600, the user can be set up.
5. The core module size : 28 mm x 15 mm x 2.35 mm.
6. Working current: matching for 30 MA, matching the communication for 8 MA.
7. Dormancy current: no dormancy.
8. Used for GPS navigation system, water and electricity gas meter reading system.
9. With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment

Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.
With VCC,GND,TXD,RXD foot for the Bluetooth
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
Compatible with bluetooth master module",slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm
Note:

input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluetooth Function "

Package including:
1pcs Wireless Serial Bluetooth module
