STM8 Micro USB Minimum System Development Board SWIM Debug STM8S103F3P6

Name: STM8 Micro USB Minimum System Development Board SWIM Debug STM8S103F3P6
Brand: Geree
SKU: 118668193

STM8 Micro USB Minimum System Development Board SWIM Debug STM8S103F3P6 thumbnail-1

STM8 Micro USB Minimum System Development Board SWIM Debug STM8S103F3P6 thumbnail-2

STM8 Micro USB Minimum System Development Board SWIM Debug STM8S103F3P6 photo-1

STM8 Micro USB Minimum System Development Board SWIM Debug STM8S103F3P6 photo-2

US$ 1.5 - 1.7 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Model Number:

F083M

Type:

Other, module

Brand Name:

Geree

Contact Supplier Request Quote Chat Now

Shenzhen Geree Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number F083M

Type Other, module

Brand Name Geree

Place of Origin Guangdong, China

STM8 development board, minimum system board, core board, STM8S103F3P6

Description:
STM8S core board of the highlights:
The development board using MicroUSB cable supply, compatible with smart phone lines, data lines is simple and easy to get, but not USB MINI line-powered, USB MINI line is not easy to find, has been gradually phased out. Other manufacturers of products are used in MINI-USB port, this is not applicable for customers.
Low price, user-friendly design, a full set of data, allowing you to save money, save time, effort, worry!

STM8S core board of the main features:

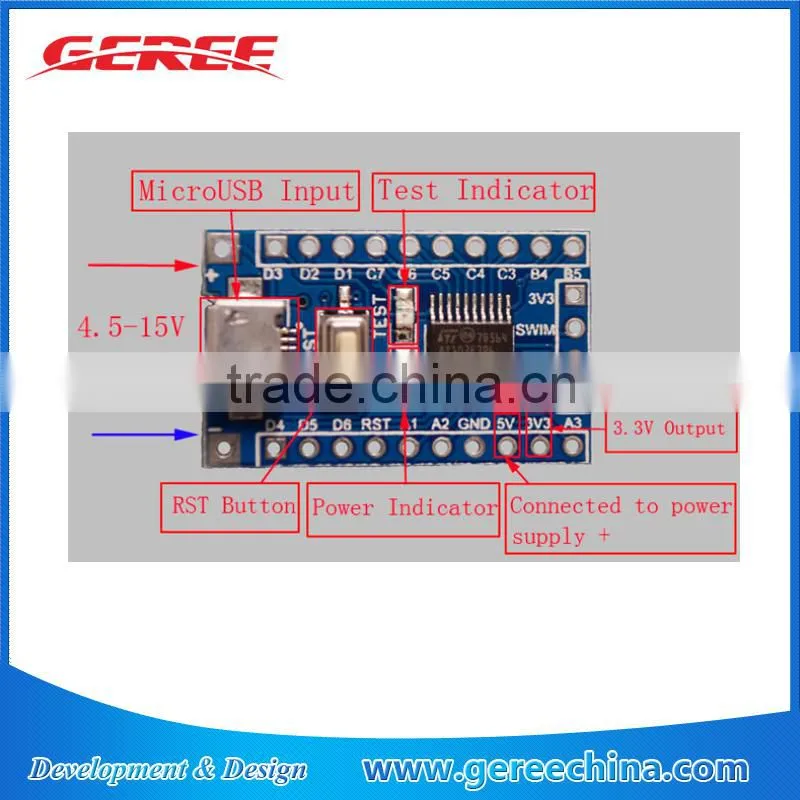

1. Use STM8S103F3P6 as the master IC.
2. You can use 2.54 pin on the board or power supply pad, the pad when using power supply, input voltage range 4.5V-15V, can output to the outside through pin 3.3V!
Note: 5V pin's voltage is the input voltage of the module.
3. leads to all pins, the pins next to the pin marked the label, with a reset button, power LED, and the program demonstrates LED, small but perfectly formed.
4. Support SWIM debug mode.

STM8S103F3P6 performance comparison:
STM8S003F3 chips only 128 bytes of EEPROM, STM8S103F3 640 bytes;
? STM8S003F3 chip FLASH erase only 100 times, STM8S103F3 can erase ten thousand times;
? STM8S103F2 chip FLASH only 4K bytes, STM8S103F3 have 8K bytes.
Conclusion: STM8S003F3 only suitable for mature products, STM8S003F3 core board is not suitable for development. However STM8S103F3 suitable for the development of the use of, our board of this development is the use of this chip.

Package:
1X STM8 development board
