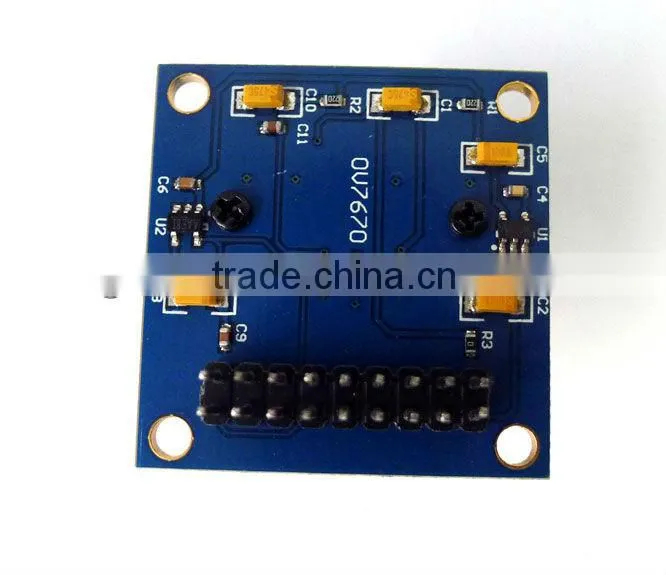

Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Camera Module

Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Camera Module thumbnail-1
Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Camera Module photo-1
US$ 0.1 - 8 MOQ: 50 Pieces
Key Specifications
Get Latest Price
D/C:
Camera module
Package:
Camera module
Model Number:
F024M
Contact Supplier Request Quote Chat Now
Shenzhen Geree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C Camera module
Package Camera module
Model Number F024M
Brand Name Geree
Place of Origin Guangdong, China

Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Camera Module

Feature:

  • Brand new and high quality.

  • High sensitivity for low-light operation.

  • Low operating voltage for embedded application.

  • Standard SCCB interface compatible with I2C interface.

  • Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2)output format.

  • Support VGA, CIF and from CIF to 40 x 30 format.

  • Vario Pixel method for sub-sampling.

  • Auto Image Control: AEC, AGC, AWB, ABF, ABLC.

  • Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.

  • ISP includes noise reduction and defect correction.

  • Support image scaling.

  • Lens shading correction.

  • Flicker 50/60Hz auto detection.

  • Color saturation level auto adjust.

  • Edge enhancement level auto adjust.

  • De-noise level auto adjust.

Parameter:

  • Photosensitive Array: 640 x 480.

  • IO Voltage: 2.5V to 3.0V.

  • Operating Power: 60mW/15fpsVGAYUV.

  • Sleeping Mode: <20μA.

  • Operating Temperature: -30 to 70 deg C.

  • Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).

  • Lens Size: 1/6".

  • Vision Angle: 25 degree.

  • Max. Frame Rate: 30fps VGA.

  • Sensitivity: 1.3V / (Lux-sec).

  • Signal to Noise Ratio: 46 dB.

  • DynamicRange: 52 dB.

  • Browse Mode: By row.

  • Electronic Exposure: 1 to 510 row.

  • Pixel Coverage: 3.6μm x 3.6μm.

  • Duck Current: 12 mV/s at 60°C.

  • PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm.

 Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Camera ModuleModule Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Camera ModuleModule Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Camera Module
