Digital ammeter and voltmeter DC0-100V 0-100A
Negotiable
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
DC 4.5-30V 5A blue red digital dc voltmeter and ammeter
-
DC100V 10A red + blue digital Voltmeter Ammeter
-
DC 4.5-30V 10A dc digital ammeter and voltmeter
-
DC 0-100V 10A 24V 36V digital ammeter and voltmeter
-
DC voltmeter and ammeter shunt DC 4.5-30V 0-100A
-
Hot selling BLUE + RED Digital Voltmeter and Ammeter DC 4.5-30V 5A
Product Details
| Place of Origin | Guangdong, China | Brand Name | Geree | |
| Model Number | VI016 | Display Type | Digital Only | |
| Measuring Range | DC0-100V | Accuracy Class | 1%(+-1) | |
| Operating Temperature | -10 to +65 |
Product Description
Specifications
1)DC 0-100V 0-100A red + blue Volt Amp Voltmeter Ammeter Voltage Current Meter2)DC 0-100V/100A red + red color

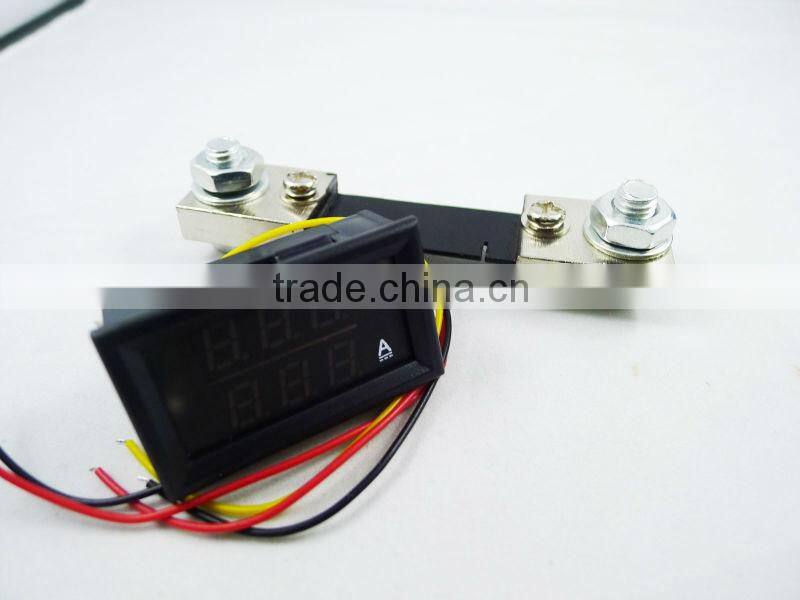

Volt Amp Voltmeter Ammeter LED Digital Voltage Current Measurement Meter with shunt
DC 0-100V/100A red + blue color
Features:
work Current:<60mA

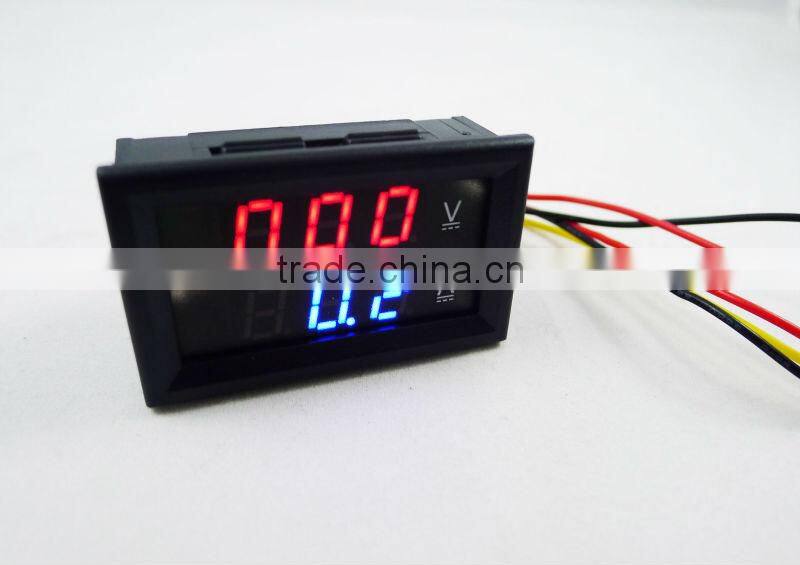

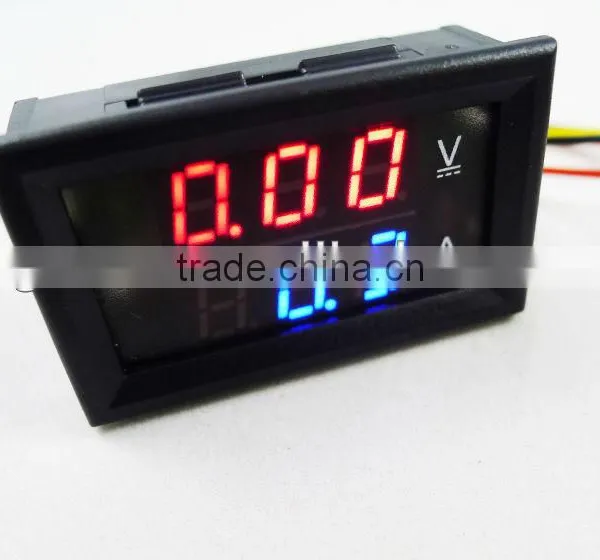

display:0.28"LED,red + blue color
size:48×29×21 mm
Refresh rate:≥500mS/times
Permissible Error:1%(±1)
power supply : 4.5V - 30V
Measure range: DC0-100V:
Operating temperature:-10~+65
operating humidity:10~80%
working air pressure:80~106kPa
Testing current: 0-100A

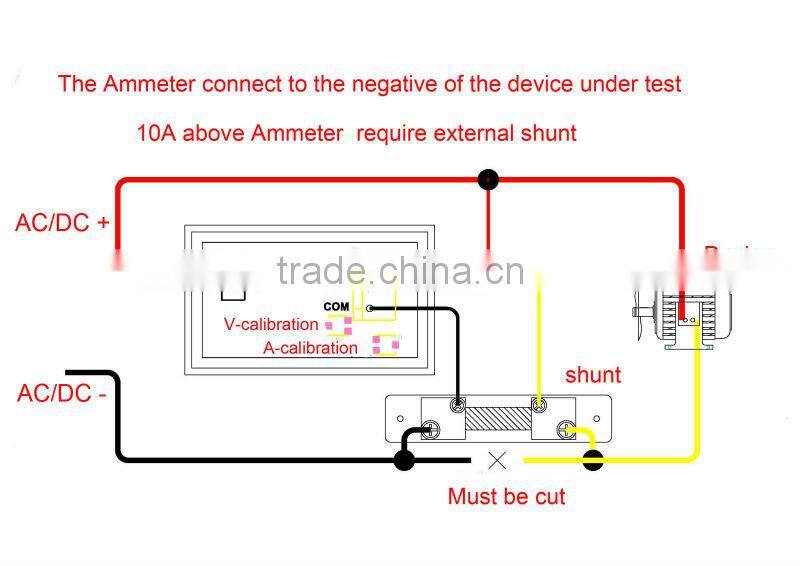

Wiring:
thick cable
Black line : COM, common measuring
Red line : power supply+
Yellow line : IN+, current input+
thin cable (4.5V - 30V)
Black line : DC Input -
Red line : DC input +
