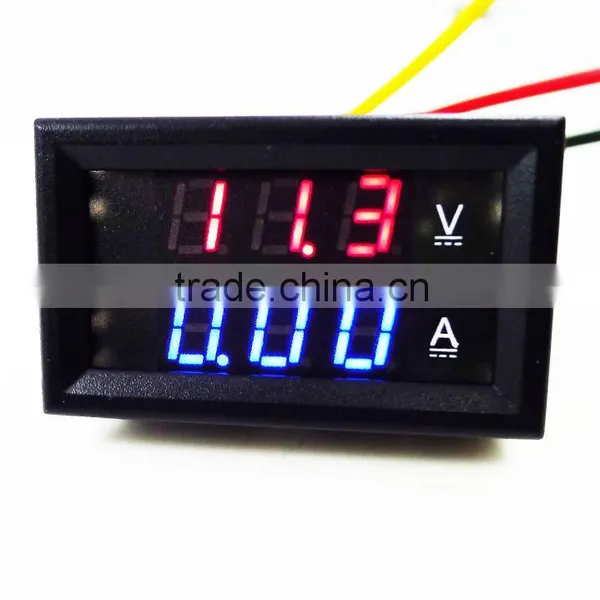

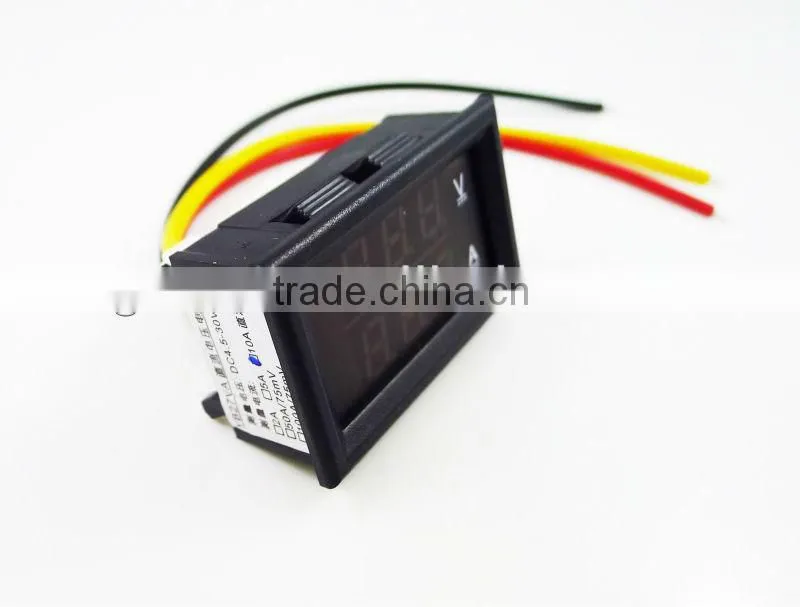

DC 4.5-30V 10A dc digital ammeter and voltmeter
Negotiable
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
DC 0-100V 10A 24V 36V digital ammeter and voltmeter
-
DC voltmeter and ammeter shunt DC 4.5-30V 0-100A
-
Hot selling BLUE + RED Digital Voltmeter and Ammeter DC 4.5-30V 5A
-
RED DC 4.5- 30V 0-100A double Voltmeter and Ammeter with shunt
-
DC 4.5-30V 0-50A with shunt double Voltmeter Ammeter
-
RED+BLUE DC4.5-30V 0-100A DC voltmeter and ammeter with shunt
Product Details
| Place of Origin | Guangdong, China | Brand Name | Geree | |
| Model Number | VI004 | Display Type | Digital Only | |
| Measuring Range | 4.5-30V /10A | Accuracy Class | 1%(+-1) | |
| Operating Temperature | -10 to +65 | Dimensions | 48 x 29 x 21 mm |
Product Description
Specifications
1)Volt Amp Voltmeter Ammeter LED Digital Voltage Current2)Measurement Meter
3)DC 4.5-30V/10A
Features:
work Current:<60mA
display:0.28"LED,red + blue
size:48×29×21 mm
Refresh rate:≥500mS/times
Permissible Error:1%(±1)
Measure range: DC4.5-30V
Operating temperature:-10~+65
operating humidity:10~80%
working air pressure:80a~106kPa
Testing current: 0-10A
Wiring:
Black line : COM, common measuring
Red line : power supply+
Yellow line : IN+, current input+
