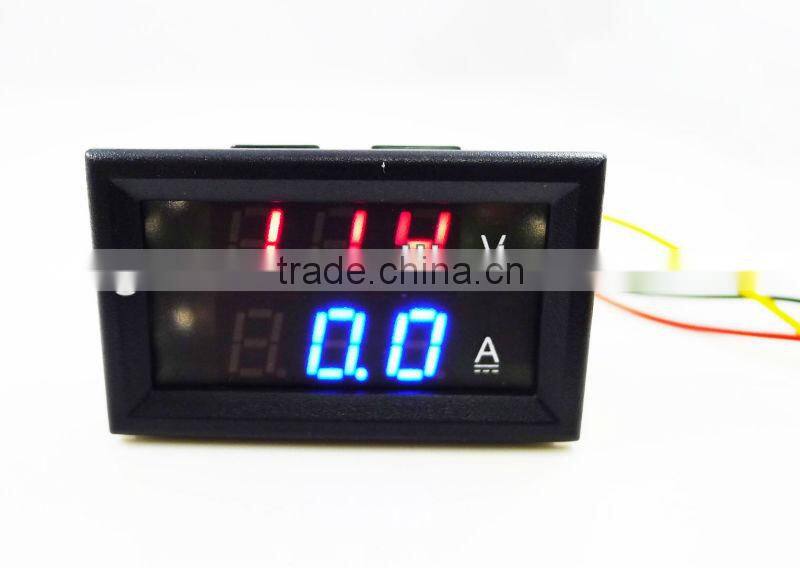

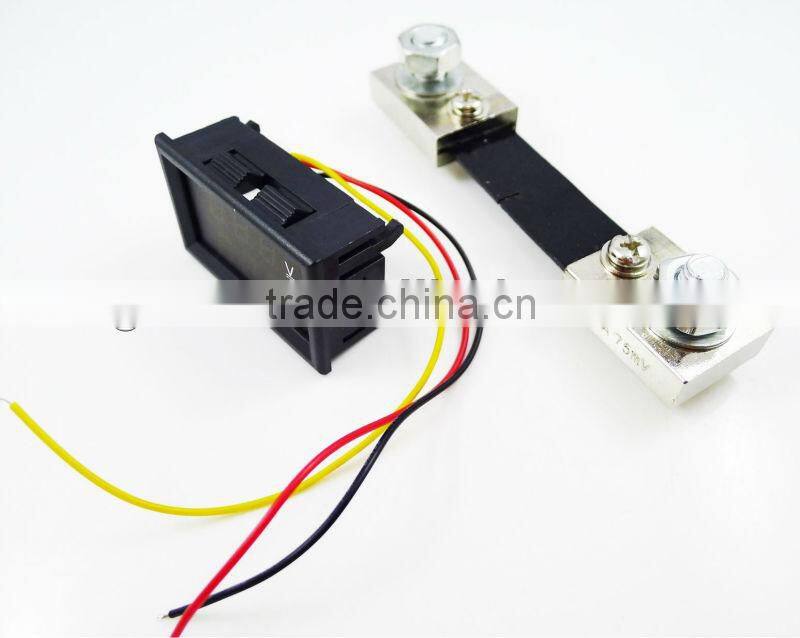

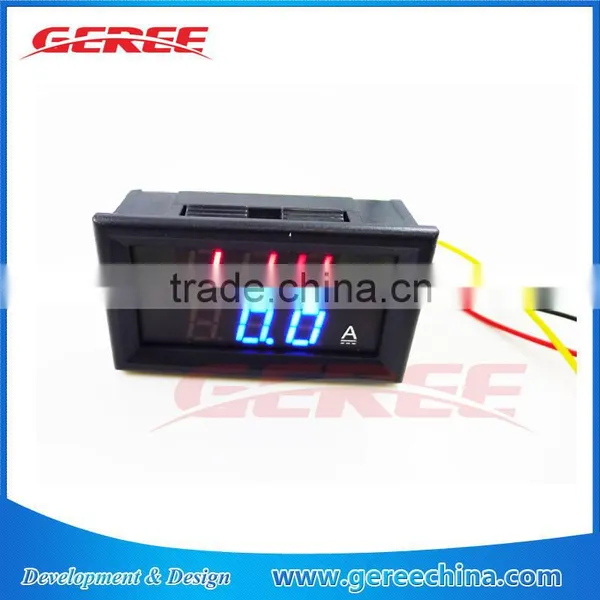

DC Voltmeter and Ammeter Shunt DC 4.5-30V 0-100A
Negotiable
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Hot Selling BLUE + RED Digital Voltmeter and Ammeter DC 4.5-30V 5A
-
RED DC 4.5- 30V 0-100A Double Voltmeter and Ammeter With Shunt
-
DC 4.5-30V 0-50A With Shunt Double Voltmeter Ammeter
-
RED+BLUE DC4.5-30V 0-100A DC Voltmeter and Ammeter With Shunt
-
LED Digital Voltage Current Measurement Meter DC 4.5-30V/100A
-
Voltmeter and Ammeter DC4.5-30V 100A With Shunt RED+BLUE Current Meter 12V 24V
Product Details
| Place of Origin | Guangdong, China | Brand Name | Geree | |
| Model Number | VI008 | Display Type | Digital Only | |
| Measuring Range | DC4.5-30V | Accuracy Class | 1%(+-1) | |
| Operating Temperature | -10 to +65 | Dimensions | 48 x 29 x 21 mm |
Product Description
Specifications
1)Volt Amp Voltmeter Ammeter LED Digital Voltage Current Measurement Meter2)DC 4.5-30V/100A with shunt red + blue
Features:
work Current:<60mA
display:0.28"LED,red + blue
size:48×29×21 mm
Refresh rate:≥500mS/times
Permissible Error:1%(±1)
Measure range: DC4.5-30V:
Operating temperature:-10~+65
operating humidity:10~80%
working air pressure:80~106kPa
Testing current: 0-100A

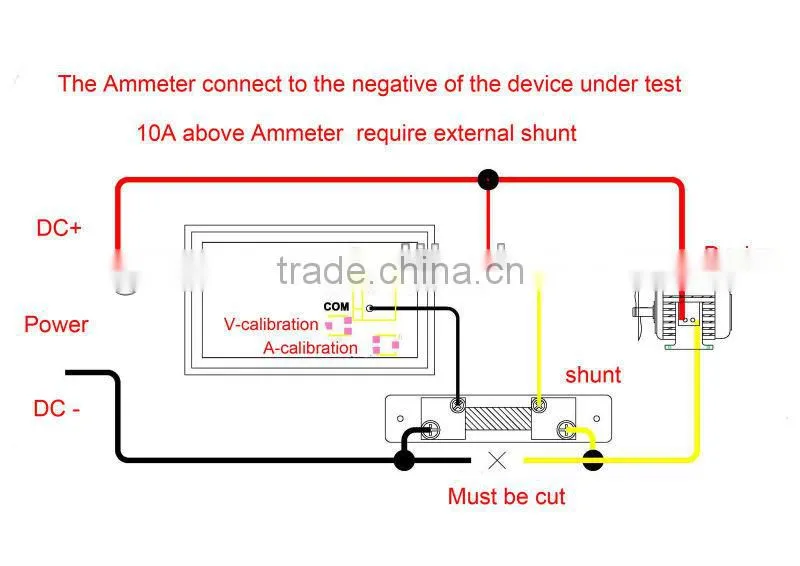

Wiring:
Black line : COM, common measuring
Red line : power supply+
Yellow line : IN+, current input+
