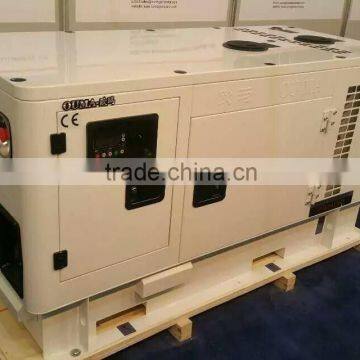

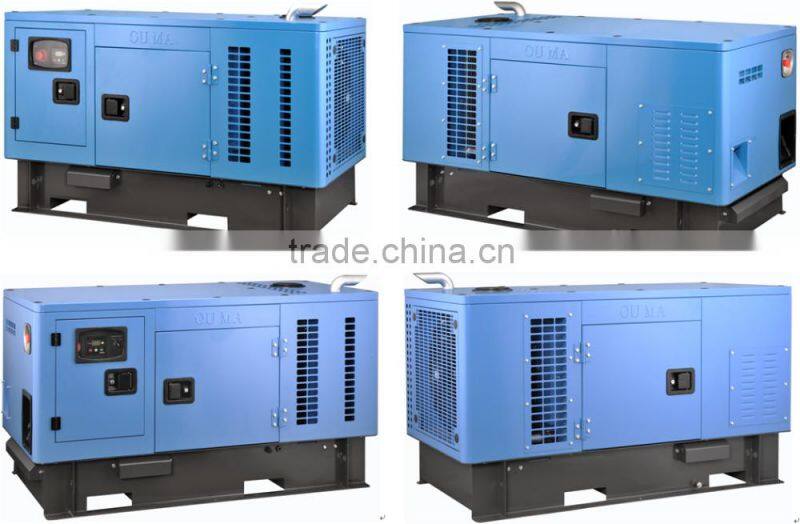

12KW/15KVA Three Phase Silent Diesel Generator
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OUMA
Model Number:
OM12CYD3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or any Chinese port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12kw/12kva Single Phase Silent Rain Proof Diesel GeneratorUS$ 2,500 - 3,000MOQ: 2 Units -
10kw Three Phase Silent Diesel GeneratorNegotiableMOQ: 1 Unit
-
10kw Single Phase Rain Proof Silent Diesel GeneratorNegotiableMOQ: 1 Unit
-
8kw Three Phase Silent Diesel GeneratorNegotiableMOQ: 1 Unit
-
8kw/kva Single Phase Silent Rain Proof Diesel GeneratorUS$ 2,500 - 3,000MOQ: 5 Units
Place of Origin
Jiangsu, China
Brand Name
OUMA
Model Number
OM12CYD3
Output Type
AC Three Phase
Speed
1500/1800 RPM
Frequency
50HZ/60HZ
Rated Power
13.6KW/50HZ,15KW/60HZ
OUMA rainproof silent diesel gensets enjoy good image in the market with
nique advantages and features:

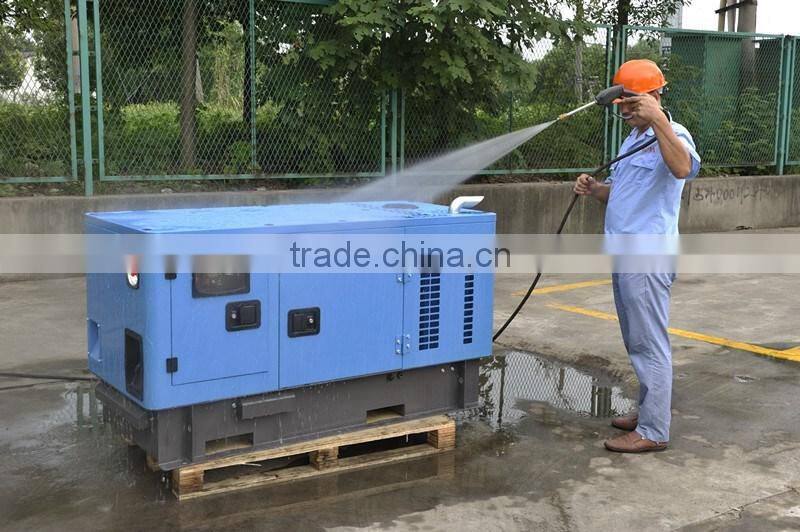

Rain proof design, withstanding all weather conditions.

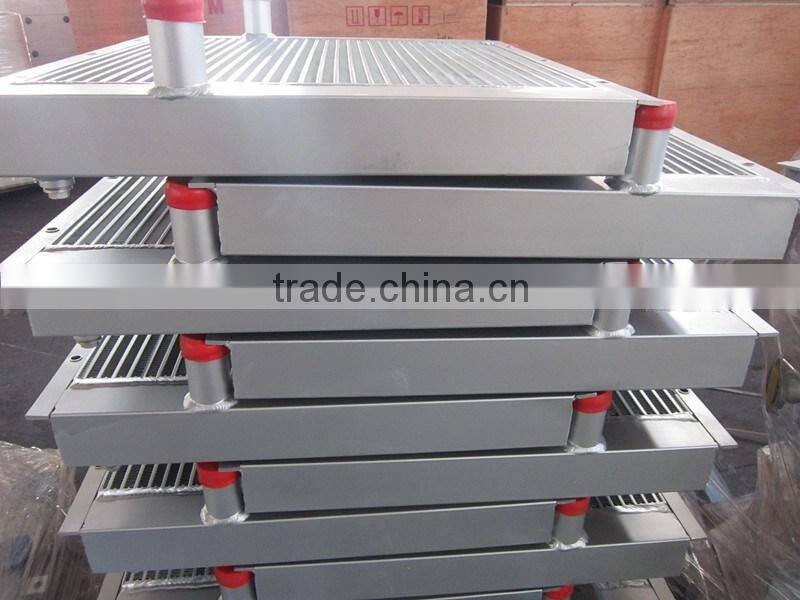

60℃ radiator, no overheat would happen in high temperature weather condition.
To enhance cooling effect, engine oil cooler may be equipped.
For chilly conditions, engine oil heater and water heat jacket would be used.
62 dbA noise level, quiet enough to leave the users and neighbourhood a good living environment.
We continue improving noise level to below 60dbA.
Four-cavity design of genset housing.
i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, the genset can run at very low noise and genset size is quite small.
Internal temperature of the genset housing is kept 40-50℃, safety is ensured while performance of the genset is maximized.
This design is patent protected to OUMA.

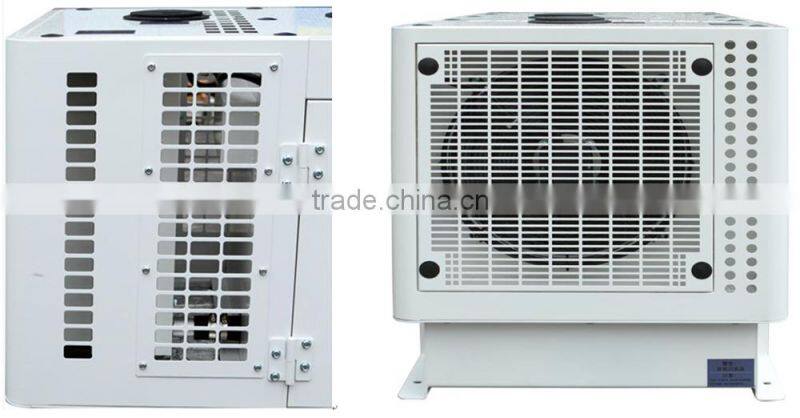

Central AC type cooling fan: 20,000 hours service life, much more than 500 hours as most genset factories use.
The cooling fan connection mode is patent protected to OUMA.

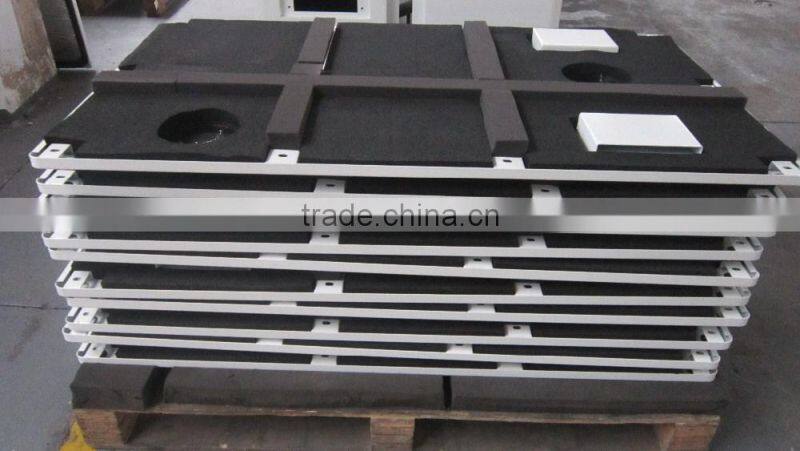

2.0mm cold-rolled steel genset canopy: rigid and corrosion resistant.
Advanced painting and finishing, no painting colour fade within 5 years.

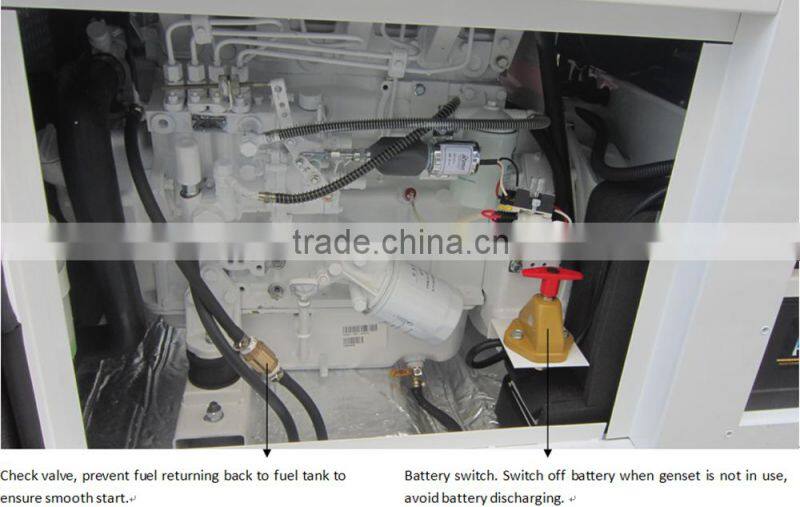

Battery switch to switch off battery when genset is not in use, so no power loss of battery.
Fuel non-return valve to prevent fuel returning back to fuel tank and inlet of air to the fuel pipe, so easy start of genset after long time of non-use.
Competitive price and fast delivery within 20 working days
15 months or 1000 running hours warranty, whichever comes first.
Smallest size and most compact structure, maximum loading and installation space.
Specifications:
| Generator set | Model | OM12CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 24.5 27 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60 | |
|
Overall dimension (L×W×H)(mm) |
≤1670×750×853 | |
| Overall weight(kg) | ≤680 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 10 | |
| Diesel engine | Model | OM485 |
| Brand | OUMA | |
| Power output(KW) | 17 20.4 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.8 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184-3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%~105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF<50,THF<2% | |
| IP grade | 22 | |
| Control panel | Model | HGM6100U |
| Manufacturer | OUMA Smartgen | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, charging voltage |
FAQ:
1. Why should I choose OUMA among so many Chinese factories?
OUMA is only making high quality products. Never cheap price low quality units.
Chinese engine we only use the top brand FAWDE.
15months or 1200 running hours warranty.
2. What’s your lead time?
Generally within 20 working days
3. What are the biggest advantages and features of OUMA water cooled gensets?
Rain proof Special cooling system 62dbA low noise small size
4. Do you accept sample order?
Yes, and we do suggest new customer doing so to verify our excellent quality.
