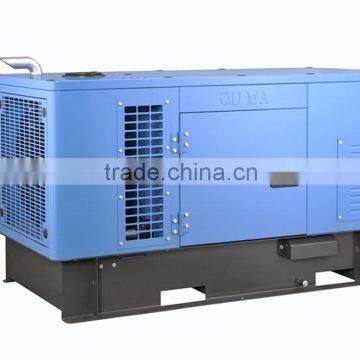

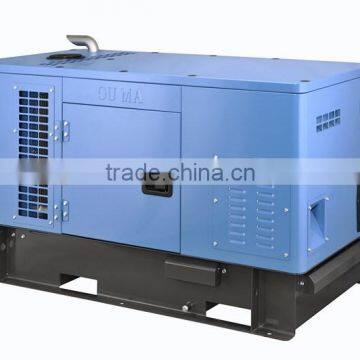

8kw three phase silent diesel generator
- 10 Unit / Units per Month
- Shanghai or any Chinese port
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | OUMA | Model Number: | OM8CYD3 |
Output Type: | AC Three Phase | Speed: | 1500RPM/50HZ,1800RPM/60HZ | Frequency: | 50HZ/60HZ |
Rated Power: | 8KW/50HZ,11KW/60HZ | Rated Voltage: | 400/230 416/240 | Rated Current: | 14.4 19 |
Product Description
Specifications:
Generator set | Model | OM8CYD3 |
Brand | OUMA | |
Rated power(KW) | 8 11 | |
Rated voltage(V) | 400/230 416/240 | |
Rated current(A) | 14.4 19 | |
Rated frequency(Hz) | 50 60 | |
Waveform distortion | Sinewave,distortion ≤5% | |
Noise level(dB@7m) | 62 | |
Battery(12V-Ah) | 60 | |
Overall dimension (L×W×H)(mm) | ≤1670×750×853 | |
Overall weight(kg) | ≤580 | |
Fuel tank capacity(L) | 70 | |
Continuous running(h) | 15 | |
Diesel engine | Model | OM385 |
Brand | OUMA FAWDE | |
Power output(KW) | 10 12 | |
Type | Three cylinder, direct injection, four stroke | |
Displacement(L) | 1.2 | |
Bore×Stroke(mm) | 85×95 | |
Rotation speed(r/m) | 1500 1800 | |
Governor system | Mechanical | |
Starting mode | 12V DC | |
Filter system | Dry air filter, fuel filter, oil filter | |
Cooling type | Enclosed water-cooled | |
Exhaust muffler | Upward exhaust | |
Radiator size(L) | 9 | |
Fuel consumption(g/kw.h) | ≤220 | |
Oil capacity(L) | 8.3 | |
Alternator | Model | OM164C3 |
Brand | OUMA | |
Rated power(KW) | 8.5 10 | |
Excitation mode | Brushless, self-excitation | |
Voltage regulation | Auto regulation | |
Number of phase | Three phase, four wire | |
Number of pole | 4 | |
Rotation speed(R/M) | 1500 1800 | |
Temperature rise(℃) | 125 | |
Insulation grade(stator/rotor) | H/H | |
Voltage regulation range w/o load | ≥95%~105% | |
Steady-state voltage deviation | Less ±1% | |
Interference factor | TIF<50,THF<2% | |
IP grade | 22 | |
Control panel | Model | OM588 |
Manufacturer | OUMA | |
Power output | Terminals | |
Installation | In-built | |
Manufacturer | OUMA | |
Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
Parameter display | AC voltage, frequency, running hour, charging voltage |
FAQ:
1. Why should I choose OUMA among so many Chinese factories?
OUMA is only making high quality products. Never cheap price low quality units.
Chinese engine we only use the top brand FAWDE.
15months or 1200 running hours warranty.
2. What’s your lead time?
Generally within 20 working days
3. What are the biggest advantages and features of OUMA water cooled gensets?
Rain proof Special cooling system 62dbA low noise small size
4. Do you accept sample order?
Yes, and we do suggest new customer doing so to verify our excellent quality.
