Specifications
Air cooled modular water chiller-Energy-efficient
-Environmental protection
-Automatic energy balance
...
Mitsubishi Chiller
Features
-Energy-efficient: The ratio output against input is coefficient of performance (COP). Normally it can be more than 4.
-Environmental protection : There is no waste water, waste residue, used heat, the waste gas discharged. It will not produce any pollution to the atmosphere and environment.
-Modular controlling function: As per the actual requirements, one or more units can be added to combine a heat water supply system, which are controlled by modular.
-Automatic energy balance: According to ambiguous controlling principle, the unit checks the load dynamically.when the unit reaches the setting temperature, the unit keeps the load in balance.

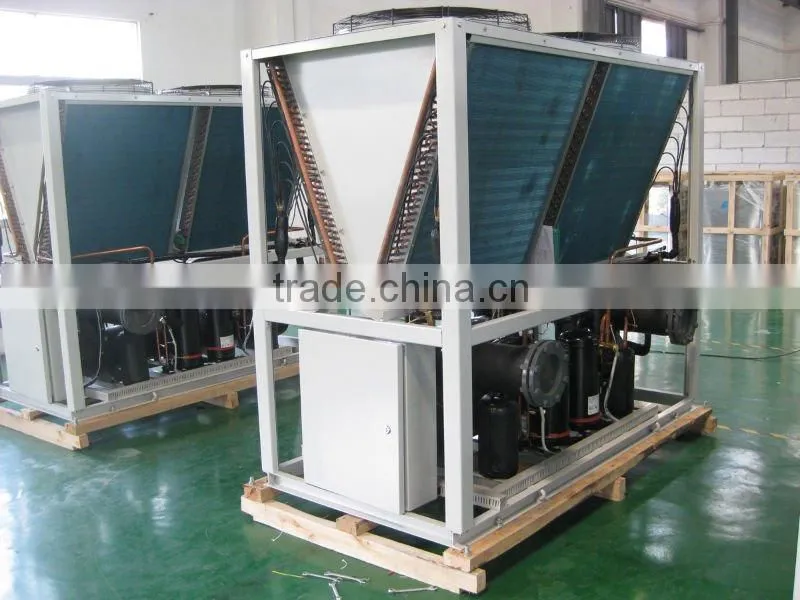

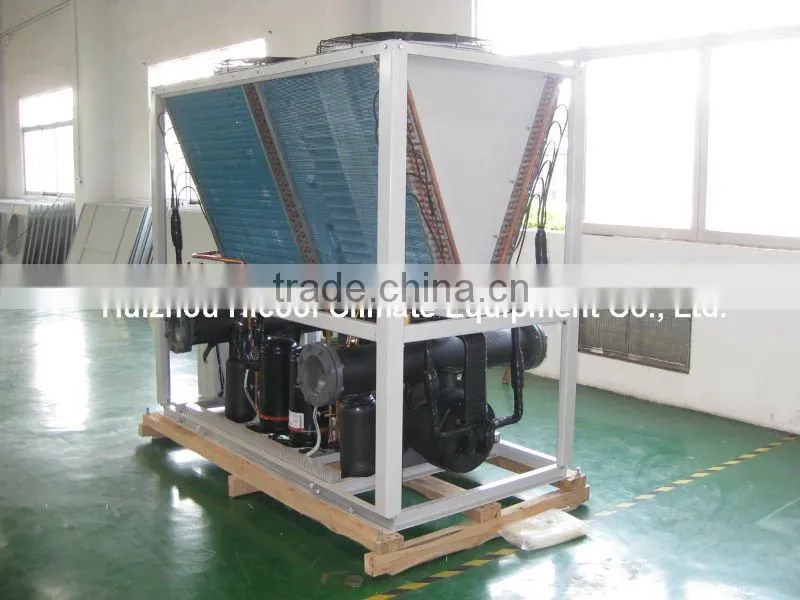

Finished product
Technical Data
| Model | H-Ach45T/3 | H-Ach55T/3 | H-Ach65T/3 | H-Ach88T/3 | H-Ach108T/3 | ||
| Cooling Capacity | kW | 45 | 55 | 65 | 84 | 103 | |
| Heating Capacity | kW | 47 | 57 | 68 | 88 | 108 | |
| Rated Input Power | Cooling | kW | 13.74 | 16.67 | 22.25 | 25.81 | 34.25 |
| Heating | kW | 13.54 | 16.56 | 21.71 | 26.56 | 34.73 | |
| Rated Input Current | Cooling | A | 23 | 27 | 36 | 44 | 56 |
| Heating | A | 23 | 28 | 37 | 44 | 58 | |
| Power Supply | 3N 380V 50Hz | ||||||
| Compressor | Type | Scroll Type | |||||
| Quantity | 4 | 4 | 4 | 2 | 2 | ||
| Fan Quantity | Sets | 2 | 2 | 2 | 2 | 2 | |
