Air Source Heat Pump Water Heaters (UL)

Specifications

Air source heat pump
1.USA energy star,ETL,CE,ROHS
2.400% heat transform efficiency
3.Can be installed anywhere
4.highCOP

air source heat pump water heaters

technical data:

Item/Model	MH4WH-50G
Tank Volume(L)	200
Rated heating capacity(KW)	4.7
Rated hot water ratio(L/H)	100
Rated hot water temp.( °C)	55
Max.Outlet water temp.( °C)	60
Rated power supply	220-240V~/50HZ; 220-240V~/60HZ
Rated input power(KW)	1.15
Rated input current(A)	5.4
Max. input power(KW)	1.6
Max. input current(A)	7.56
Refrigerant	R417a
Refrigerant (R22)filling quantity	1100g
Water inlet / outlet(mm)	DN15
Electric heater power(optional)	3KW/6KW
MG stick (optional)	Optional
Electric shock protection class	I
Waterproof Level	IPX4
Noise(dB(A))	≤52
Compressor	Toshiba rotary
Evaporator	finned hydrophilic aluminum foil
Condenser	one single-walled copper coil(1.0 mm thickness female thread )
throttle device	capillary
Ambient temp.	-10°C~45°C
Net Size (mm)	560×1710
Net weight(Kg)	57.5
Packing size(mm)	640×650×1760
Gross weight(Kg)	60
Heating Test Conditions	Ambient Temp. :Dry/Wet bulb:20°C/15°C; Water input/output Temp.:15°C/55°C

Products Features:
1.(High-efficiency, energy-saving)
Adopts International Toshiba rotary compressor and R417a refrigerant, finned hydrophilic aluminum foil as evaporator, the AIRMAX brand heat pump can provide you large capacities heating on hot water with high COP.
2. (Safe, environmental-friendly)
Adopts technology of isolation between water and electricity, the heat is transferred and exchanged to the water by the heat exchanger which can avoid the electric shock if water touched with electricity. What is more, this can also avoid end gas and waste residue
From boiler heater, gas heater .Keep a green and clean space for you.
3. (Super anticorrosive)
Inside one single-walled titanium or copper coil as condenser, stainless steel 304 for both inner tanks and outer tanks which make sure solid cylinder.
4. (Easy Installation)
Main unit and water tank integrated to make the installation simple, just connect water pipes and the electricity power, then the integrated heat pump can work to heat hot water for you. .Very convenient for maintenance and inspections.

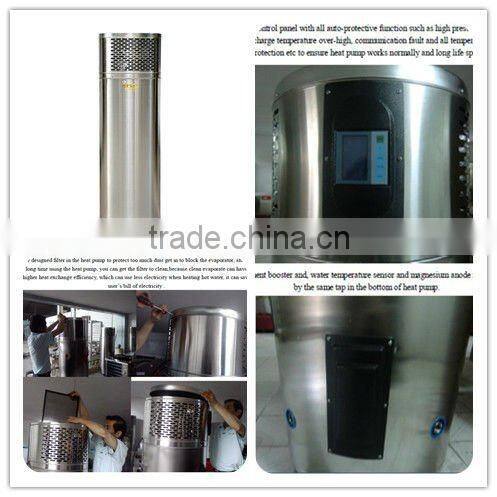

Products Photoes:

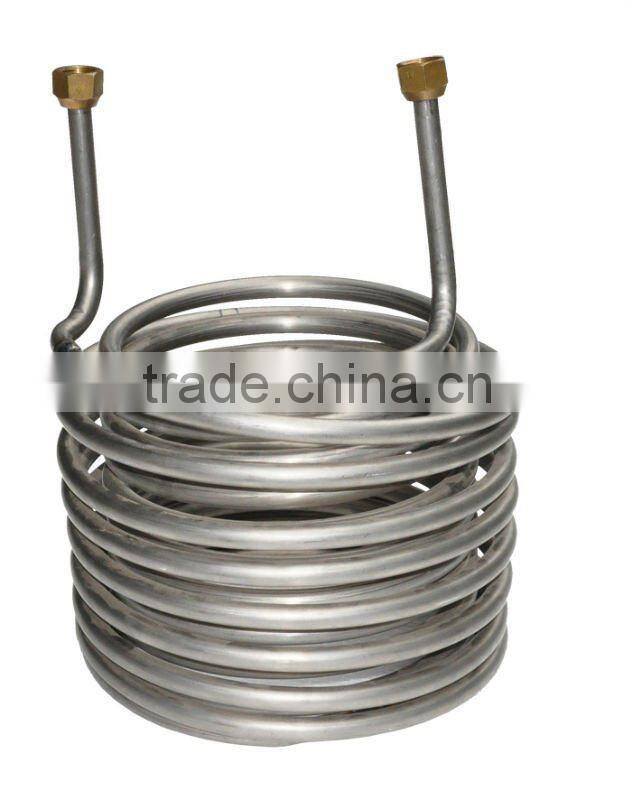

heat exchanger:
