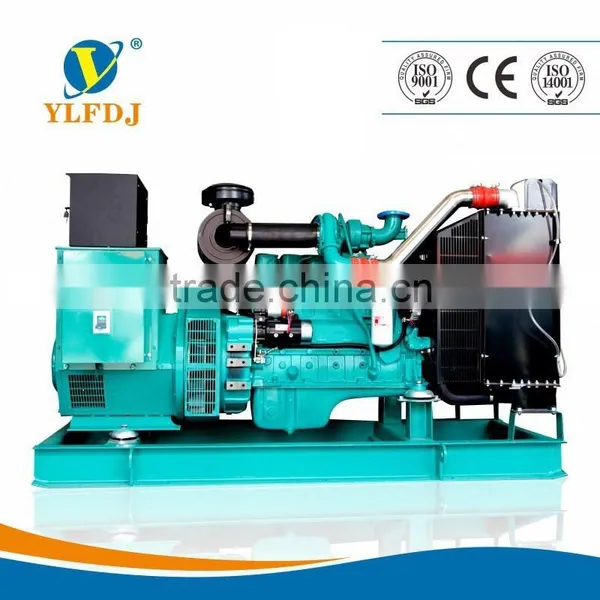

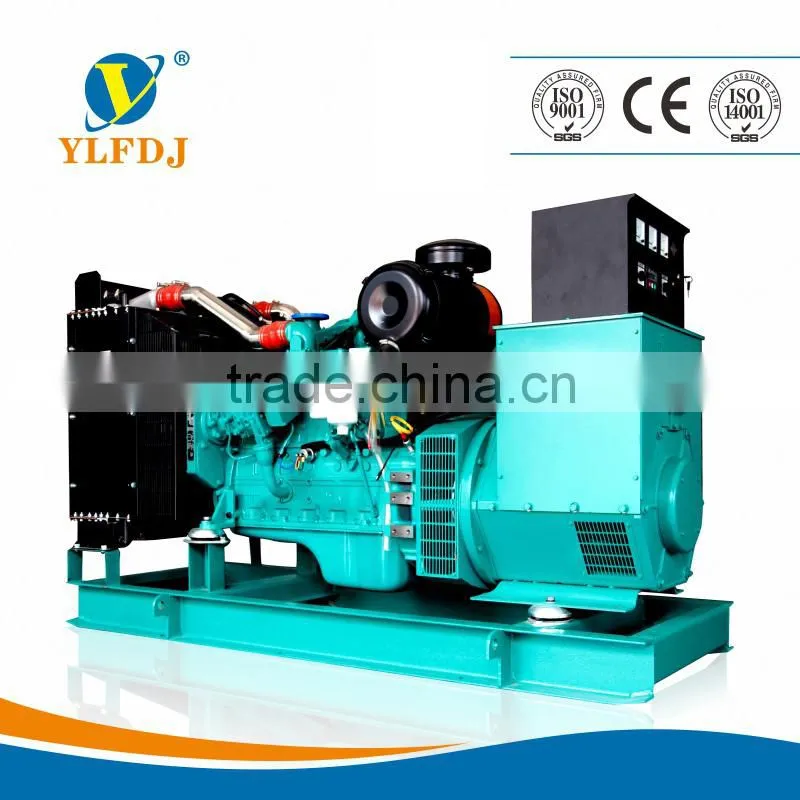

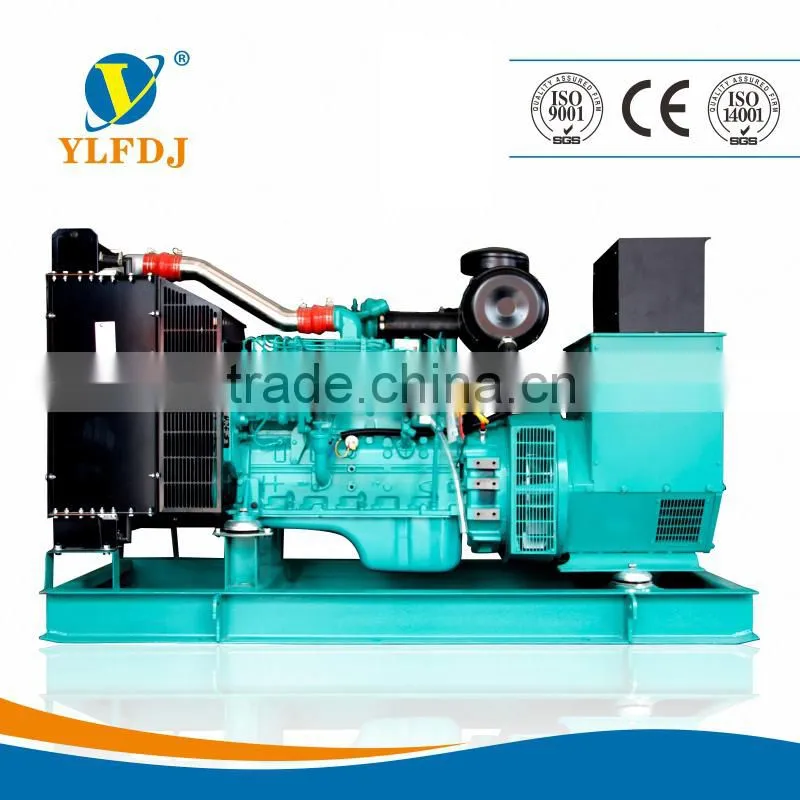

250kva/200kw Diesel Generator Set With Cummins Engine

250kva/200kw Diesel Generator Set With Cummins Engine thumbnail-1
250kva/200kw Diesel Generator Set With Cummins Engine thumbnail-2
250kva/200kw Diesel Generator Set With Cummins Engine thumbnail-3
250kva/200kw Diesel Generator Set With Cummins Engine photo-1
250kva/200kw Diesel Generator Set With Cummins Engine photo-2
250kva/200kw Diesel Generator Set With Cummins Engine photo-3
US$ 16,814 - 20,176 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YLFDJ
Model Number:
YLGF-200
Contact Supplier Request Quote Chat Now
Foshan Yingli Gensets Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name YLFDJ
Model Number YLGF-200
Output Type AC Three Phase
Speed 1500/1800
Frequency 50/60
Rated Power 200kw/250kva
Rated Voltage 400/230v/110
Rated Current 360A

250kva/200kw diesel generator set with Cummins engine250kva/200kw diesel generator set with Cummins engine250kva/200kw diesel generator set with Cummins engine250kva/200kw diesel generator set with Cummins engine



250kva/200kw diesel generator set with Cummins engine250kva/200kw diesel generator set with Cummins engine


Genset Model		 YLGF-200
Genset Power Capacity  (kw/kva) 200/250
Rated Voltage (V) 400/230
Rated Current (A) 360
Rated Frequency (Hz) 50/60
Rated Speed (rpm) 1500/1800
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (L×W×H) (mm) 2600x970x1500
Gross Weight (kg) 2500
  Engine Brand Cummins
Diesel
Engine 		Engine Model 6LTAA8.9-G2
Prime Power (kw) 200
Engine Structure 6 Cylinder,Vertical,Inline,4 stroke
Bore×Stroke (mm) 114x145
Displacement (L) 8.9
Compression Ratio 17.5:1
Lube Capacity (L) 28
Fuel System PT type fuel injection pump
Fuel Consumption (g/kw.h) 207
Lube Consumption (g/kw.h) 0.5%
Rotating Speed (rpm) 1500
Speed Governing EFC electronic speed governor
Starting Method By 24V batteries
  Alternator Brand YLFDJ
Alternator Alternator Model YLW-200
Insulation Class Class B
 Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
 Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type
Controller Controller Brand DSE7320






Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 20 days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).
