Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Generator With Two-wheeled Trailer ! 60kva/50kw Diesel Generator Set With Cummins Engine

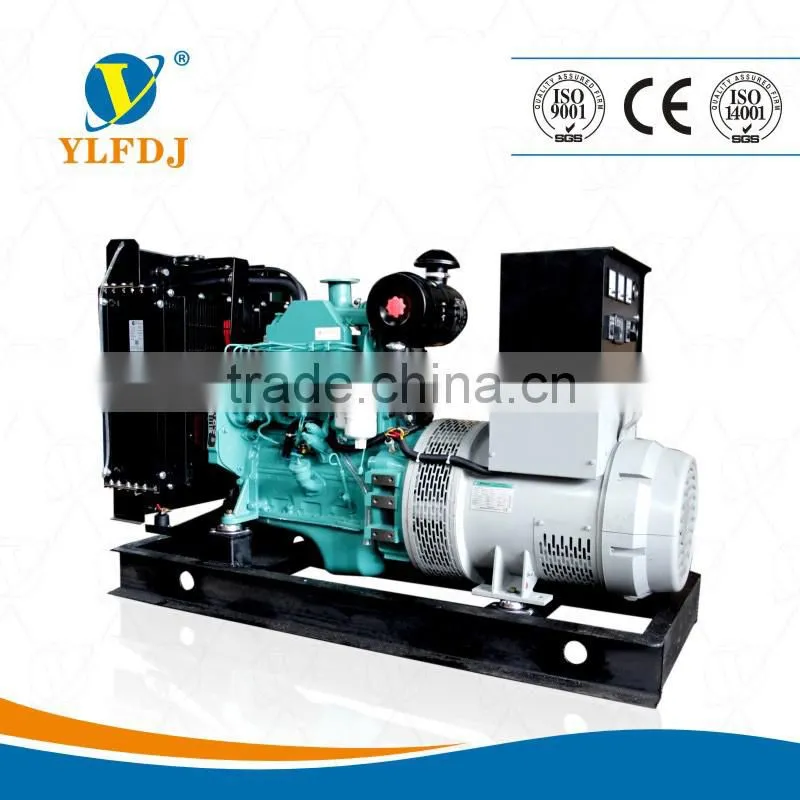

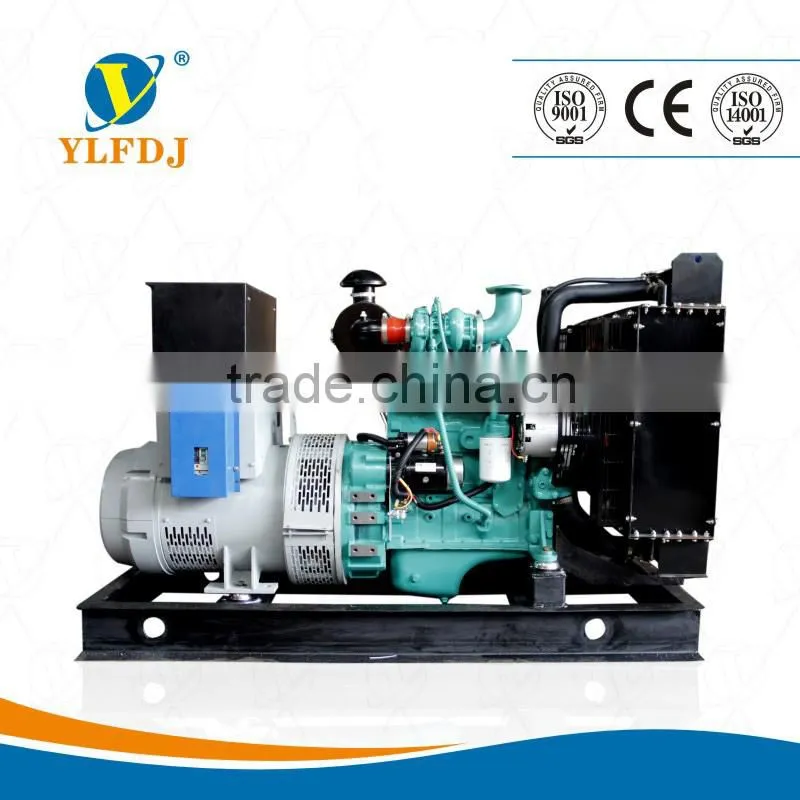

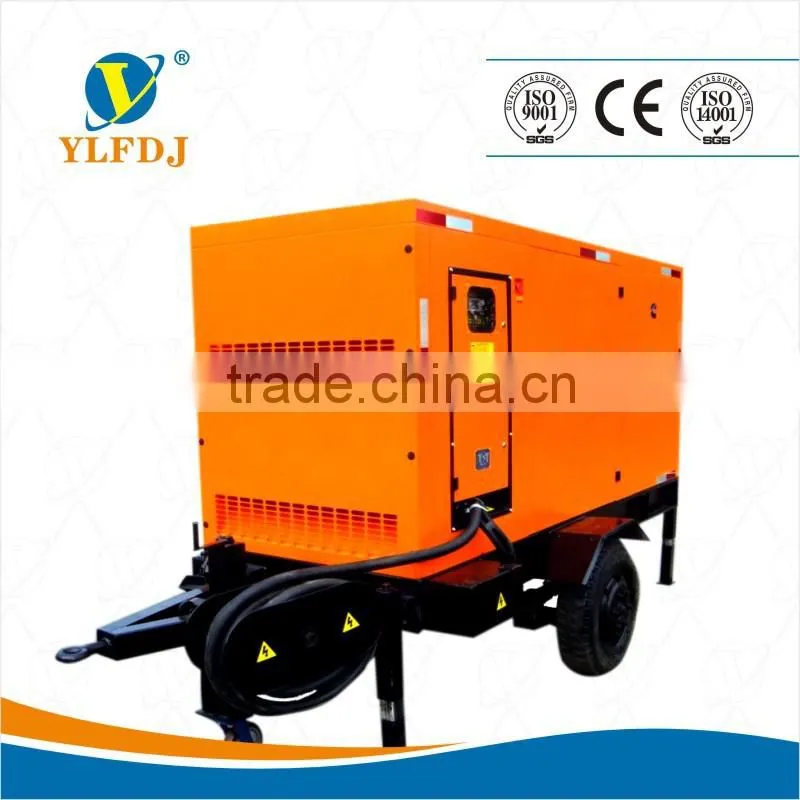

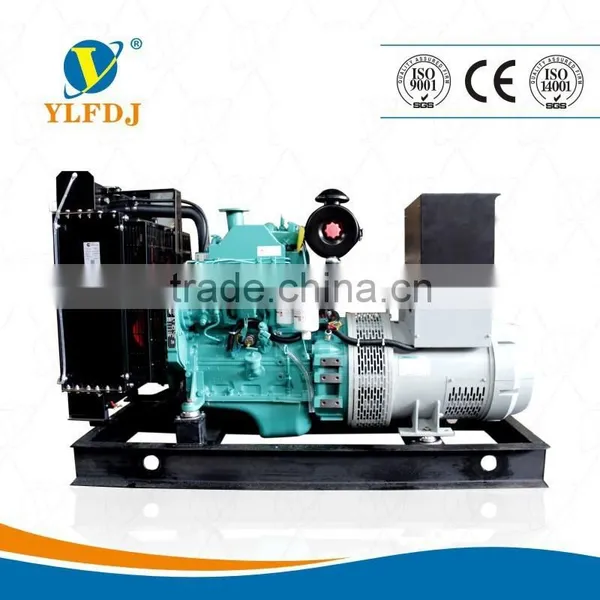

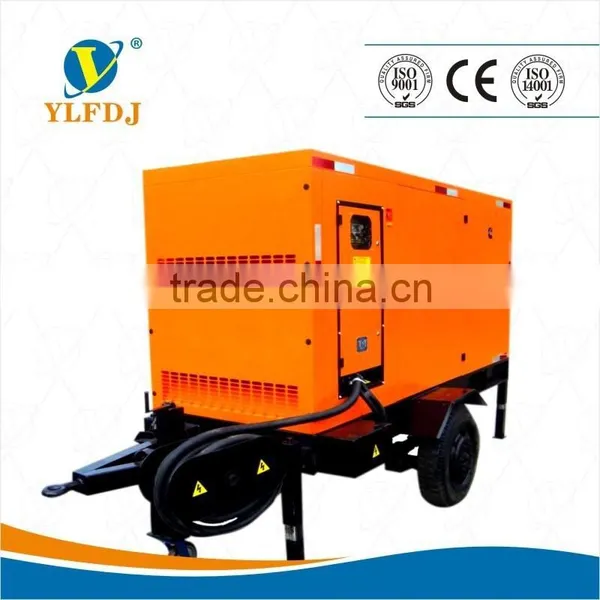

Generator With Two-wheeled Trailer ! 60kva/50kw Diesel Generator Set With Cummins Engine
US$ 7,616 - 8,840
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YLFDJ
Model Number:
YLGF-50
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sales!180Kw Diesel Generator Set With Cummins Engine With Two-wheeled TrailerUS$ 18,130 - 21,163MOQ: 1 Set -
Factory Price 350kw Diesel Generator Powered by Cummins With Four-wheeled TrailerUS$ 34,844 - 40,646MOQ: 1 Set
-
150KW Generators Price With Cummins Engine Trailer Type Quality ChoiceUS$ 7,000 - 8,700MOQ: 1 Set
-
Open Type 40KVA/30KW Diesel Generators Powered by Cummins Engine With Two-wheeled TrailerUS$ 6,389 - 7,410MOQ: 1 Set
-
150KVA/120KW Power Generator With Cummins Engine With Two-wheeled TrailerUS$ 11,664 - 13,577MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
YLFDJ
Model Number
YLGF-50
Output Type
AC Three Phase
Speed
1500rpm/1800rpm
Frequency
50hz/60hz
Rated Power
50kw/62.5kva
Rated Voltage
400V/230V/110V
Rated Current
90A
| Genset Model | YLGF-50 | |||||
| Genset | Power Capacity (kw/kva) | 50/62.5 | ||||
| Rated Voltage (V) | 400/230 | |||||
| Rated Current (A) | 90 | |||||
| Rated Frequency (Hz) | 50 | |||||
| Rated Speed (rpm) | 1500 | |||||
| Power Factor / Phase | Cos 0.8 Lagging, 3 phase | |||||
| Cooling System | Closed cycle water-cooled with fan,water tank | |||||
| Overall Dimension (L×W×H) (mm) | 1800x750x1200 | |||||
| Gross Weight (kg) | 950 | |||||
| Engine Brand | Cummins | |||||
|
Diesel Engine |
Engine Model | 4BTA3.9-G2 | ||||
| Prime Power (kw) | 50 | |||||
| Engine Structure | 4 Cylinder,Vertical,Inline,4 stroke | |||||
| Bore×Stroke (mm) | 102x120 | |||||
| Displacement (L) | 3.9 | |||||
| Compression Ratio | 17.5:1 | |||||
| Lube Capacity (L) | 11 | |||||
| Fuel System | PT type fuel injection pump | |||||
| Fuel Consumption (g/kw.h) | 210 | |||||
| Lube Consumption (g/kw.h) | 0.5% | |||||
| Rotating Speed (rpm) | 1500 | |||||
| Speed Governing | Electronic speed governor | |||||
| Starting Method | By 24V batteries | |||||
| Alternator Brand | YLFDJ | |||||
| Alternator | Alternator Model | YLW-50 | ||||
| Insulation Class | Class B | |||||
| Steady Voltage Regulation | ≤ +/- 0.5% | |||||
| Instant Voltage Ragulation | -15%~+20% | |||||
| Voltage Fluctuation Rate | ≤ +/- 0.5% | |||||
| Steady Frequency Regulation | ≤ +/- 0.5% | |||||
| Instant Frequency Ragulation | -7%~+10% | |||||
| Phase/Connection Type | 3 phase 4 wire/Y type | |||||
| Controller | Controller Brand | ZZ6110 | ||||
Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 20 days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).
