UHF RFID Long Range Card Reader
UHF RFID reader has many advantages of more protocol supporting,fast reading,
more lables identification,circular polarization antenna and compact design.
This reader is widely used in all kinds of RFID system.1-5Meter reading range.
Application:
Logistics and Warehouse management;
Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other field: club management,library,student schoolrolls,attendence management and swimming pool system etc.
Model |
Reading Distance |
UHF-105 |
1 ~ 5M |
UHF-115 |
5 ~ 15M |
FHF-120 |
15 ~ 20M |
Communication:
Factory default is Wiegand 26,
Option support customized Wiegand 34,RS485,RS232,RJ45 ( TCP/IP )
Free Software & SDK available for OEM clients and software developer
Technical Parameters:
Working Frequency |
Nationalstandard(920~925MHz), America standard (902~928MHz),or customize other frequency |
Support Protocol |
ISO18000-6B,ISO18000-6C(EPC GEN2) |
Frequency Hopping |
FHSS or fixed frequency set by software |
Working Way |
automatically reading card at regular time,can set reading card way. |
Frequency Power |
0~30dBm,be adjusted by software |
Reading Distance |
3~6Meter |
Reading Sensitivity |
dual polarization reading |
Reading Speed |
one label 64 bit ID number < 6ms |
Antenna |
build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna,gain 12dBi |
Interface |
RS485,RS232,Wiegand26,Wiegand34,RJ45 |
Working Voltage |
DC+12V |
Working Status Indication |
buzzer |
Power |
1W |
Working Temperature |
-20 ~ +80 |
Storage Temperature |
-4 0~ +125 |
Working Humidity |
20% ~ 95% (no condensing) |

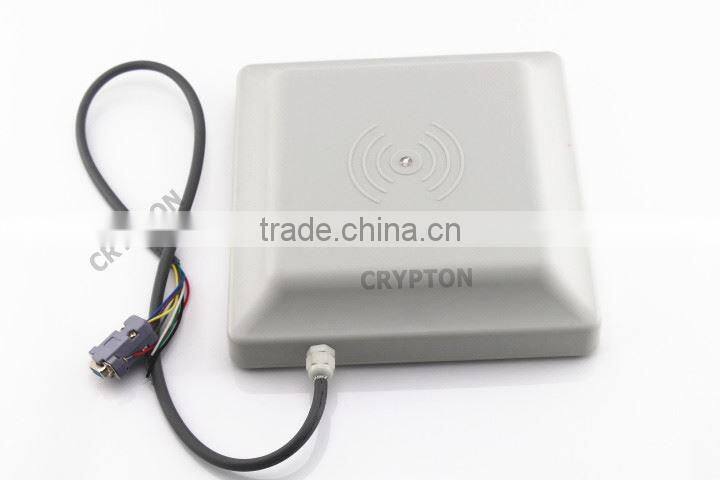

Picture for UHF-105 UHF RFID Reader via 5M reading distance:

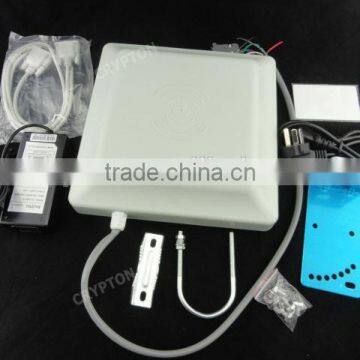

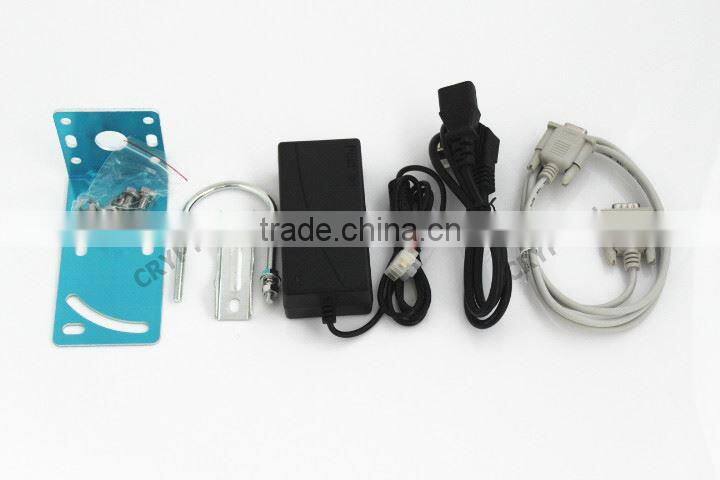

Package accessories for UHF-105 UHF Reader:

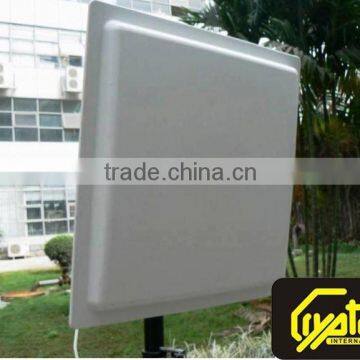

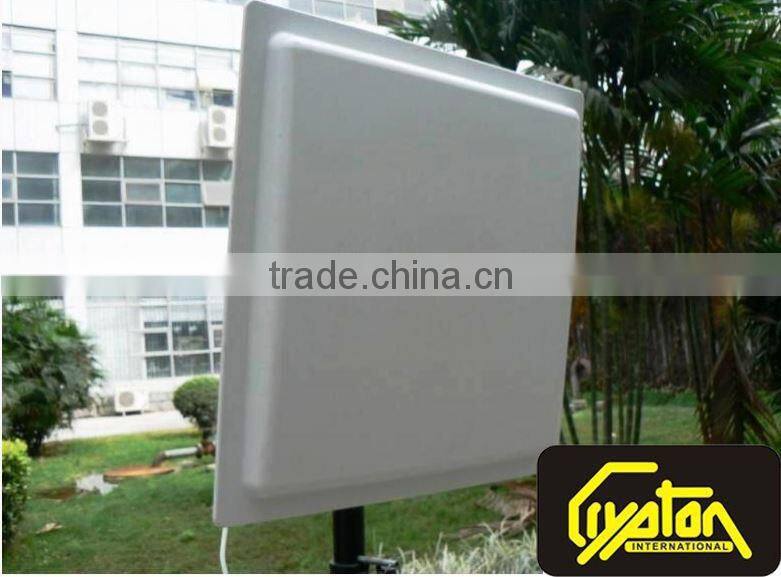

Picture for UHF-115 15M UHF RFID Long Range Reader:
0
UHF-05 USB Issuing UHF Card Device available.
Very easy to write and program UHF Cards via Software
|
Frequency range:860-960MHZ
FM mode:FHSS or fixed frequency, set by the software
Communication interface: USB
Application software: Provide with DLL,
support secondary development (only available with UHF-105 and UHF-115 with free software and SDK to develop) |

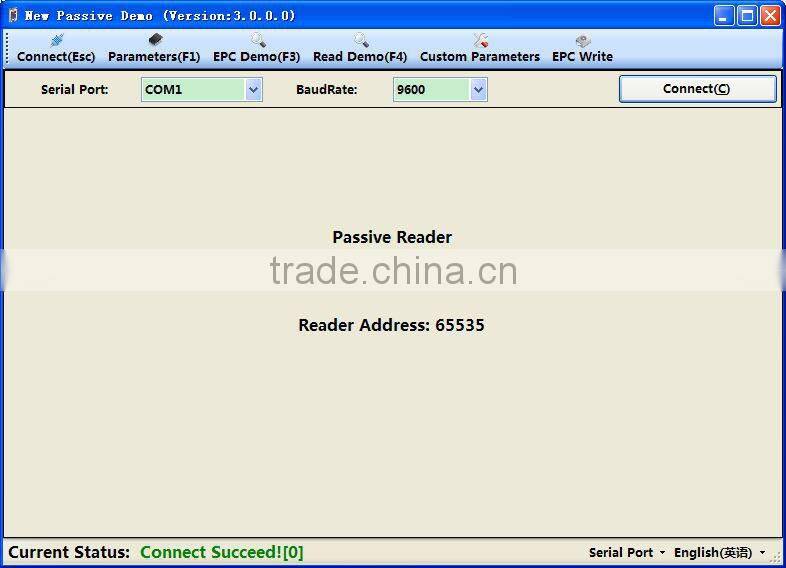

Software for UHF-105 and UHF-115:
Contact AZURA - Top sales and worked in S4A & Crypton for 6 years till now
Skype: crypton0929
E-mail: azura @
Other Security Access Control System & accessories:
|
Access Control Board (for single door, double door and four door support TCP/IP and web based with free software to manage) |
|
Standalone access control (Easy to install and program without software) |
Fingerprint access control&time attendance |
Facial access control terminals |
|
Guard tour probe (Available with GPRS,3G,4G to customize) |
|
Electromagnetic lock/Bolt lock/Strike lock (available with OEM&ODM design) |
Exit push button/Access Power supply/RFID cards |
|
Proximity card reader (125KHz and 13.56MHz) |
