UHF Passive RFID Long Range Reader & 2.4G Active UHF Reader
Free SDK ISO 18000-6C EPC Gen2 Long range UHF RFID Reader
long range passive rfid reader
long range rfid reader
$keywords3 $
UHF RFID reader has many advantages of more protocol supporting,fast reading,more lables identification,
circular polarization antenna and compact design. This reader is widely used in all kinds of RFID system.
Application:
Logistics and Warehouse management;
Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other field: club management,library,student schoolrolls,attendence management and swimming pool system etc.
Model |
Reading Distance |
UHF-105 |
1 ~ 5M |
UHF-115 |
5 ~ 15M |
FHF-120 |
15 ~ 20M |
Communication:
Factory default is Wiegand 26,
Option support customized Wiegand 34,RS485,RS232,RJ45 ( TCP/IP )
Free Software & SDK available for OEM clients and software developer
Technical Parameters:
Working Frequency |
Nationalstandard(920~925MHz), America standard (902~928MHz),or customize other frequency |
Support Protocol |
ISO18000-6B,ISO18000-6C(EPC GEN2) |
Frequency Hopping |
FHSS or fixed frequency set by software |
Working Way |
automatically reading card at regular time,can set reading card way. |
Frequency Power |
0~30dBm,be adjusted by software |
Reading Distance |
3~6Meter |
Reading Sensitivity |
dual polarization reading |
Reading Speed |
one label 64 bit ID number < 6ms |
Antenna |
build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna,gain 12dBi |
Interface |
RS485,RS232,Wiegand26,Wiegand34,RJ45 |
Working Voltage |
DC+12V |
Working Status Indication |
buzzer |
Power |
1W |
Working Temperature |
-20 ~ +80 |
Storage Temperature |
-4 0~ +125 |
Working Humidity |
20% ~ 95% (no condensing) |
Picture for UHF-105:
Package accessories for UHF-105:
There are 4 kinds of cards as following:
Also UHF & RFID, UHF & Mifare Composite cards available.
UHF-05 USB Issuing UHF Card Device available.
Very easy to write and program UHF Cards via Software
|
Frequency range:860-960MHZ
FM mode:FHSS or fixed frequency, set by the software
Communication interface: USB
Application software: Provide with DLL,
support secondary development (only available with UHF-105 and UHF-115 with free software and SDK to develop)
|
Software for UHF-105 and UHF-115:
UHF RFID Long Range Card Reader work with our ACB-00 series TCP/IP Access Control Board together.

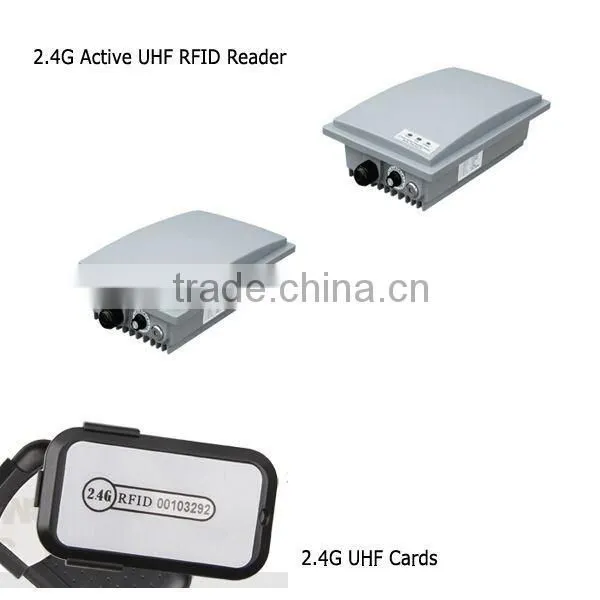

2.4G Active UHF RFID Reader
Contact Ms Azura TAN - Top sales and worked in S4A & Crypton for 5 years till now.
|
Skype: |
crypton0929 |
|
E-mail: |
azura @ |
||
Website: |
|||
www.crypton.hk |
Other Security Access Control System & accessories:
|
Access Control Board (for single door, double door and four door support TCP/IP and web based with free software to manage) |
|
Standalone access control (Easy to install and program without software) |
Fingerprint access control&time attendance |
Facial access control terminals |
|
Guard tour probe (Available with GPRS,3G,4G to customize) |
|
Electromagnetic lock/Bolt lock/Strike lock (available with OEM&ODM design) |
Exit push button/Access Power supply/RFID cards |
|
Proximity card reader (125KHz and 13.56MHz) |
