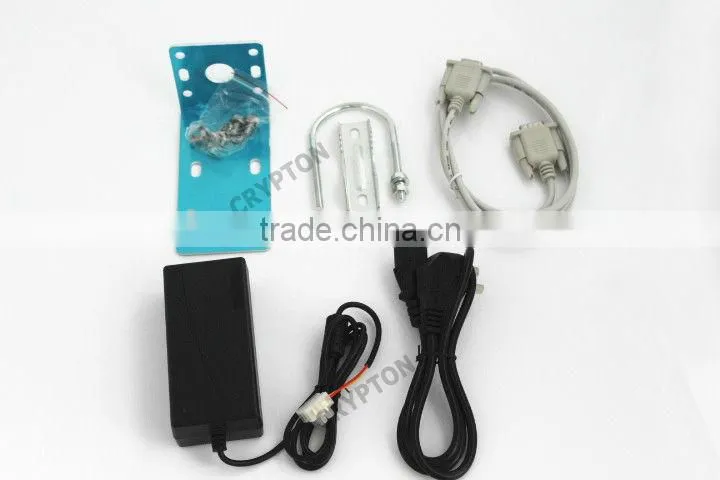

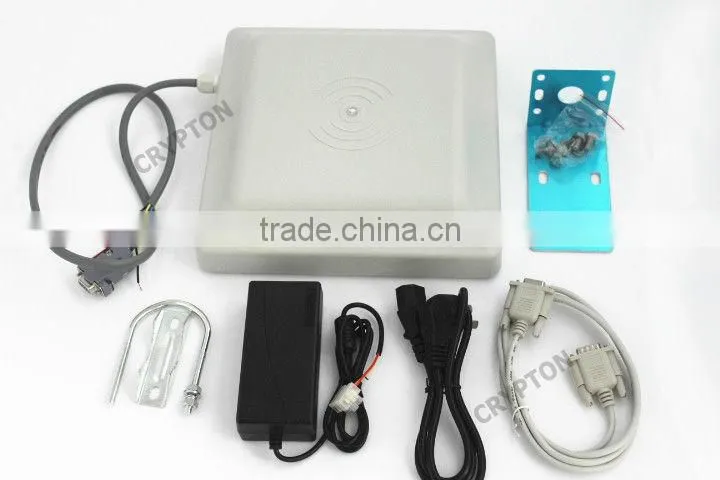

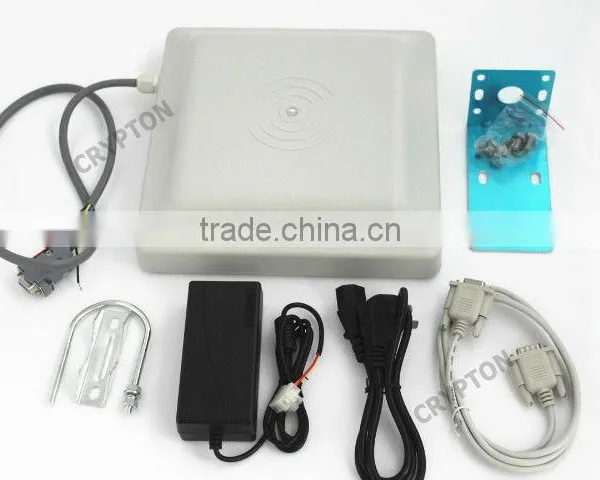

rfid parking management system, rfid reader

Working Frequency

Nationalstandard(920~925MHz),America standard (902~928MHz),or customize other frequency

Support Protocol

ISO18000-6B,ISO18000-6C(EPC GEN2)

Frequency Hopping

FHSS or fixed frequency set by software

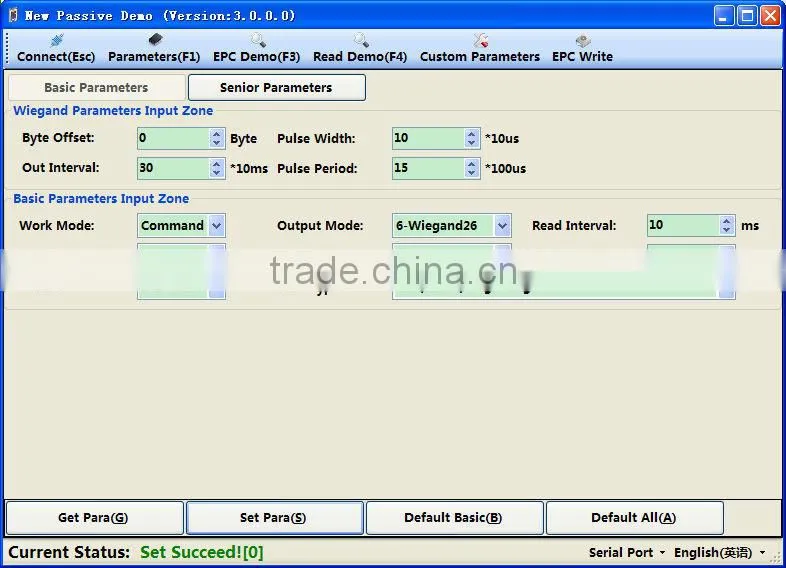

Working Way

automatically reading card at regular time,can set reading card way.

Frequency Power

0~30dBm,be adjusted by software

Reading Distance

1~5M

Reading Sensitivity

dual polarization reading

Reading Speed

one label 64 bit ID number < 6ms

Antenna

build-in circular polarization antenna,gain 8dB /build-in linear polarization antenna,gain 12dBi

Interface

RS485,RS232,Wiegand26,Wiegand34,RJ45

Working Voltage

DC+12V

Working Status Indication

buzzer

Power

1W

Working Temperature

-20°C ~ +80°C

Storage Temperature

-40°C ~ +125°C

Working Humidity

20%  ~  95%(no condensing)

Dimension

227mm× 227mm× 60mm

Serial No.

Name

Cable Color

Function

1

DC+12V

Red

+9V~15V positive

2

GND

black

Negative

3

TXD

brown

RS232 signal output (PIN2)

4

RXD

Yellow

RS232 signal input (PIN3)

5

GND

Blue

RS232 grounding (PIN5)

6

Triger

Gray

Trig pin

7

DATA0/485A+

Green

Wiegand data 0 or 485 interface positive port

8

DATA1/485B-

white

Wiegand data 1 or or 485 interface negative port
