UHF RFID Long Range Card Reader
UHF RFID reader has many advantages of more protocol supporting,fast reading,more lables identification,circular polarization antenna and compact design. This reader is widely used in all kinds of RFID system.1-5Meter reading range.
Application:
Logistics and Warehouse management;
Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other field: club management,library,student school rolls,attendance management and swimming pool system etc.
Model |
Reading Distance |
UHF-105 |
1 ~ 5M |
UHF-115 |
5 ~ 15M |
Communication:
Factory default is Wiegand 26,
Option support customized Wiegand 34, RS485, RS232, RJ45 ( TCP/IP )
Free Software & SDK available for OEM clients and software developer
Technical Parameters:
Working Frequency |
Nationalstandard(920~925MHz), America standard (902~928MHz),or customize other frequency |
Support Protocol |
ISO18000-6B,ISO18000-6C(EPC GEN2) |
Frequency Hopping |
FHSS or fixed frequency set by software |
Working Way |
automatically reading card at regular time,can set reading card way. |
Frequency Power |
0~30dBm,be adjusted by software |
Reading Sensitivity |
dual polarization reading |
Reading Speed |
one label 64 bit ID number < 6ms |
Antenna |
build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna,gain 12dBi |
Interface |
RS485,RS232,Wiegand26,Wiegand34,RJ45 |
Working Voltage |
DC+12V |
Working Status Indication |
buzzer |
Power |
1W |
Working Temperature |
-20 ~ +80 |
Storage Temperature |
-4 0~ +125 |
Working Humidity |
20% ~ 95% (no condensing) |

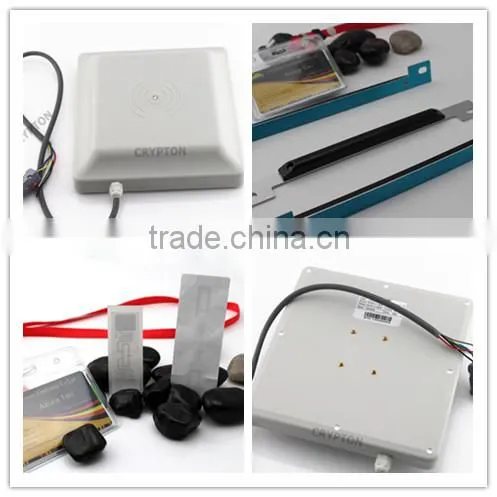

Picture for UHF-105 ( 5M uhf long range reader ):

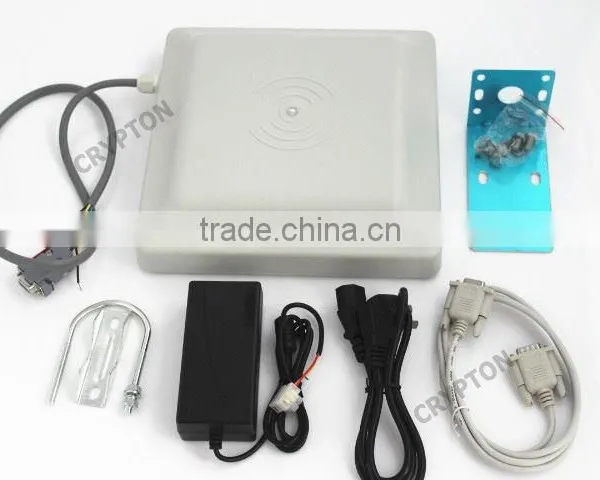

Package accessories for 5M uhf long range reader:
Picture for UHF-115 ( 15M uhf long range reader ) with RJ45 interface:

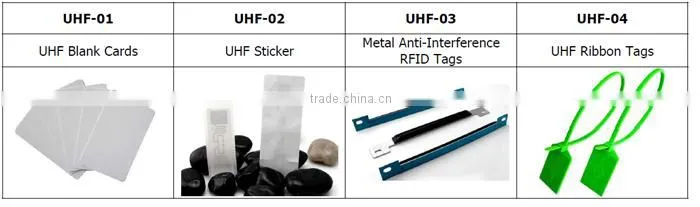

There are 4 kinds of uhf cards as following:
Also UHF & RFID, UHF & Mifare Composite cards available.
UHF-05 USB Issuing UHF Card Device available.
Very easy to write and program UHF Cards via Software
| 860MHz-960MHz UHF USB desktop card issuing device for car parking systems | |
|
Model: UHF-05 Frequency range:860-960MHZ(or customized) FM mode:FHSS or fixed frequency, set by the software Antenna connection qty: Built-in 1 antenna Communication interface: USB Application software: Provide with DLL, support secondary development (only available with UHF-105 and UHF-115 with free software and SDK to develop) | |
| Specification | |
|
Air interface: ISO-18000-6B,ISO-18000-6C(EPC G2),TK900 Mechanical and Electrical Performance Dimension: 105(L)*70 (W)*11(H)mm Power supply: USB Weight: 80g Humidity: 5% to 95%, non-condensing Protection grade: IEC IP52 Operation temperature: -20 ºC to +60 ºC Storage temperature: -40°C to 80°C | |
| Why you need to order UHF-05 card issuing device? | |
|
If there has so many cars in the parking lot. Its very convenient to write it on the desk via USB port.Easy to write and program.... 1 second to write a card number.... | |
| Picture for UHF-05 USB UHF Card Issuing Device | |
| |
Software for uhf long range reader - guide you How to write the UHF Cards by Software:
Project1 - Which We did 15M uhf long range reader in indonesia
Project2 - 5M uhf long range reader in Panama
Standard neutral package for 5M UHF Long range reader is 10 units/BOX
15M UHF Long range reader package is 5 units/BOX

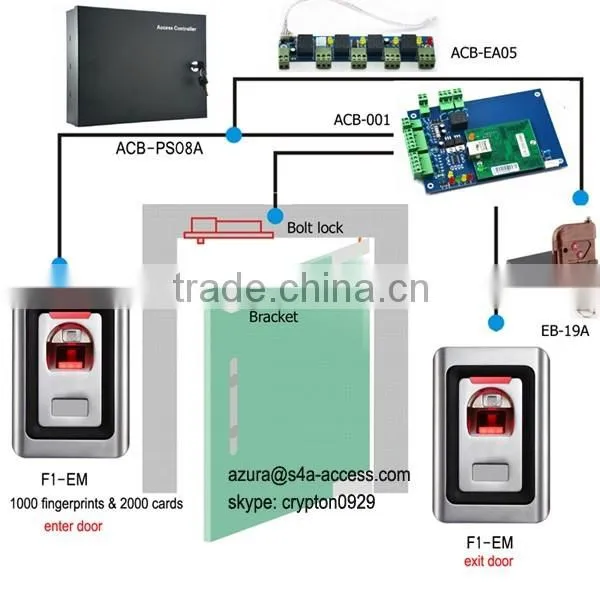

Security Access Control System & accessories:
|
Access Control Board (for single door, double door and four door support TCP/IP and web based with free software to manage)
|
|
Standalone access control (Easy to install and program without software)
|
Fingerprint access control&time attendance |
Facial access control terminals |
|
Guard tour probe (Available with GPRS,3G,4G to customize) |
|
Electromagnetic lock/Bolt lock/Strike lock (available with OEM&ODM design)
|
Exit push button/Access Power supply/RFID cards |
|
Proximity card reader (125KHz and 13.56MHz) |
How to write the UHF Cards by Software:
We will provide free Software to write the UHF Cards
Contact Us ( azura @ | SKYPE: crypton0929 )
1.Connect UHF RFID CARD with computer, open UHF software,and then click” Connect”
2. After connect succeed , change Work Mode Parameters” to Command, and then,click"Set Para” to reserve set.(set succeed)
3.Click” EPC Write”_card-writing begins.
Check"Auto Add1” by “√” Written Num type input ******(six numbers) randomly.
4. Get 1 UHFcard and swipe on our card reader ,and them click “Write Tag “,You will read ”Write Succeed”. It’s okay.
Notes:
The work mode of UHF card reader is “Command”during card-writing.
While finish writing,work mode need change into “active”
