Biometric double doors access control system
Fingerprint access control & time attendance FTA-F211
I.Brief Introduction:
FTA-F211 is with innovative and compact design, access control and time attendance two in one function, it firstly also applies In-Mold Decoration technology in the market, clients could choose other color matching solution, available colors are black, golden, grey and white. It support UDP function, it’s more convenient for monitoring the access records. It’s released since September. 2013, many clients like this item. And it’s one of hot products of the company during CPSE in October 2013.
II. Features:
It’s with the most advanced fingerprint arithmetic in the world, Automatically analyse the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition., the identification time is less than 1 second.
The device is built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and secure.
Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & share freely
With tamper alarm, over-time door opening alarm, fire alarm and Hijack alarm ect alarm functions
Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 800 enrollment and 50,000 record
Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development
Support English, French, Spanish, Korean ect different languages.
III. Specification
Model |
FTA-F211 |
LCD Screen |
2.4 inch TFT (320*240) Color Screen |
Fingerprint Sensor Resolution |
500DPI (Optical sensor) |
Hardware Platform |
REALANDR ZDC2911 |
Algorithm Version |
REALANDR RSFv5.1 |
CPU |
ARM926EJ CPU, Running Frequency: 200MHZ |
Communication |
TCP/IP, RS485, USB Memory Disk |
User Capacity |
800 |
Records Capacity |
50000 |
Software OS |
XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time |
< 1 S |
Authentication Method |
Fingerprint/ RFID Card (125Khz, EM4100) |
Language |
Chinese / English / Spanish/Portuguese/ German (could customize others) |
Bell |
Built-in timing bell(can connect to external timing bell) |
Access Control Interface |
Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor |
Professional Access Function |
Open door by multilevel verification, anti-pass back |
Power |
DC 12V/2A |
FRR |
<1% |
FAR |
<0.00001% |
Operating Mode |
Off-line/On-line |
Authentication Mode |
1:1, 1:N |
Operating environment |
Operating Temp: 0°C-50°C, Humidity:80% |
Certificates |
CE, ,FCC,UL ,Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm |
Terminal - 103*103*31mm |
Weight |
Terminal - 0.195 Kg |

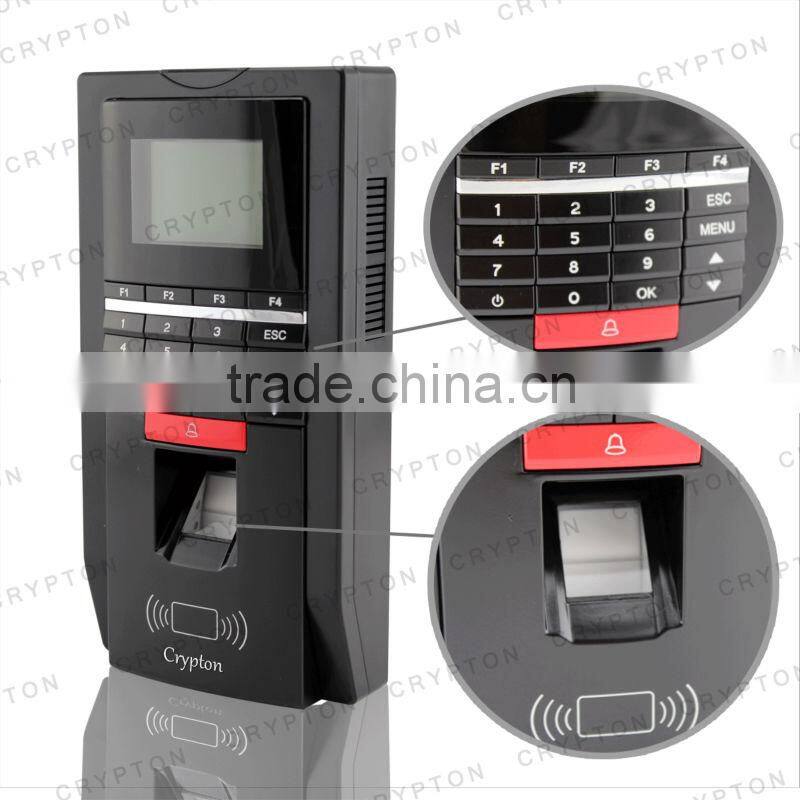

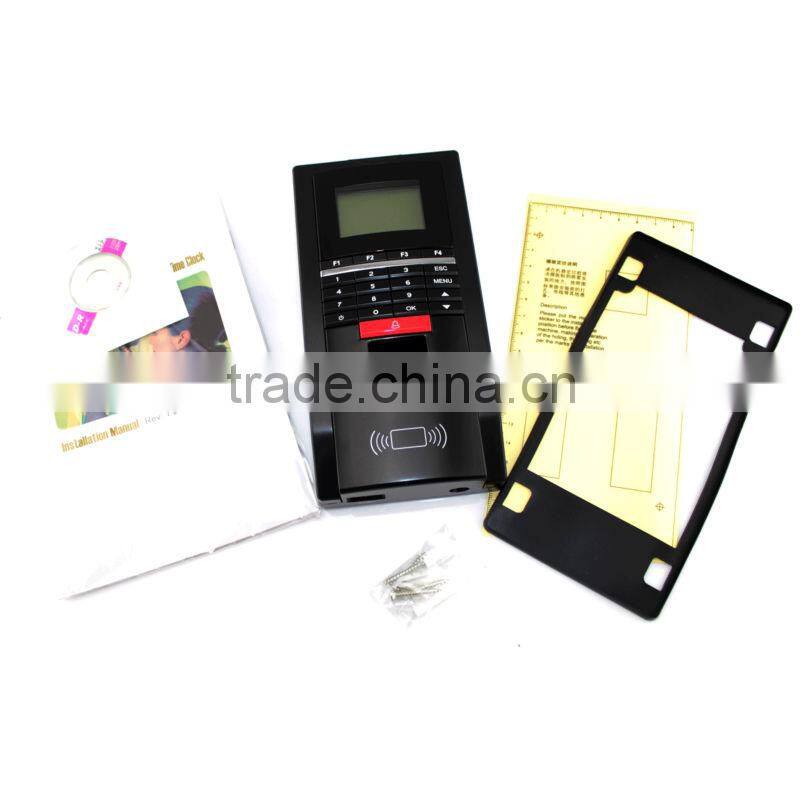

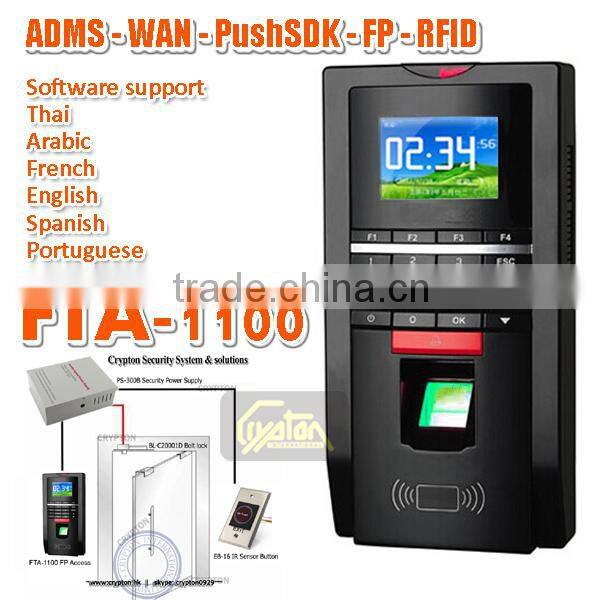

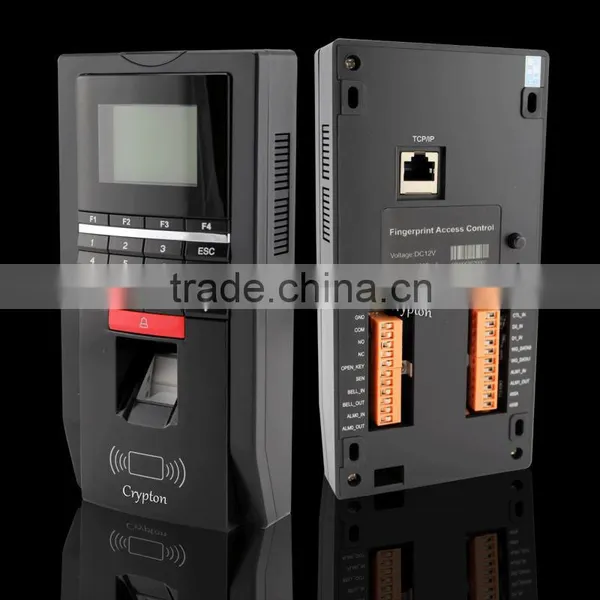

Pictures of the FTA-1100 reader

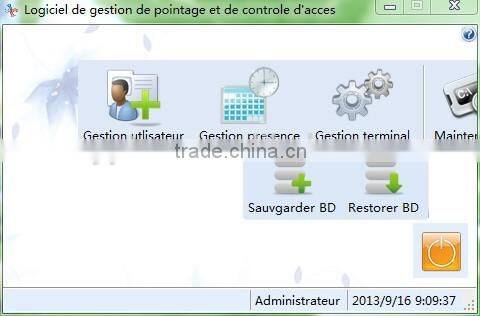

Software image for your reference:
...
